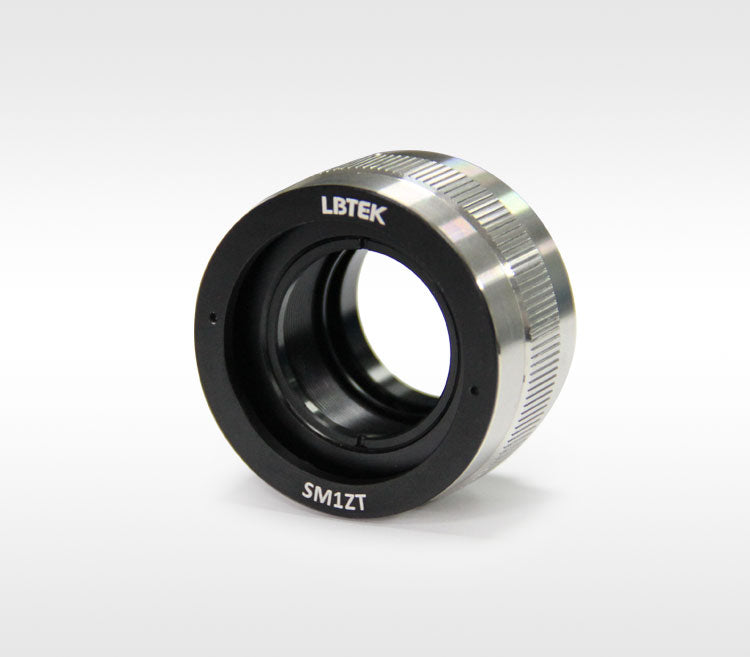

Scaling tube — Model SM1ZT
✔ In Stock — Ships Today
The LBTEK high-precision SM1 scaling tube center bore features SM1 internal threads, allowing optical components to be mounted using the included SM1R retaining ring. It is typically used for installing optical components with a diameter of Ø25.4 mm and a maximum thickness of 11.7 mm. The movement range is 5 mm, with an adjustment precision of 0.25 mm per revolution. Equipped with SM1 external threads, it can be directly screwed into opto-mechanical components with SM1 internal threads, such as SM1 lens tubes.
Key Features
- Compatible optical component diameter: 25.4 mm
- Maximum thickness of mounted optical component: 11.7 mm
- Travel range: 5 mm
- Adjustment precision: 0.25 mm/revolution
- With SM1 internal and external threads
Application
High-precision scaling tube installation
| Material | 304 stainless steel and 6061-T6 aluminum alloy |
| Applicable optical element diameter | Ø25.4 mm |
| Maximum applicable thickness of optical components | 11.7 mm |
| Travel Range | 5 mm |
| Adjustment accuracy | 0.25 mm/rev |
| Attribute 584 | SM1 internal thread and SM1 external thread |
| included retaining ring | SM1R/1 piece |
CAD Drawing
Download
Click and drag to rotate. Scroll to zoom.
Product Family: Scaling tube (3 variants)
| Product | SKU | Size | Clear Aperture | Operating Wavelength | |
|---|---|---|---|---|---|
| Scaling tube SM1ES05 |
SM1ES05
| — | — | — | View |
| Scaling tube SM1ZT Current |
SM1ZT
| — | — | — | |
| Scaling tube SM1ES1 |
SM1ES1
| — | — | — | View |
