Standard O-Type Optical Mounts (Industrial Grade) AMM-1BL

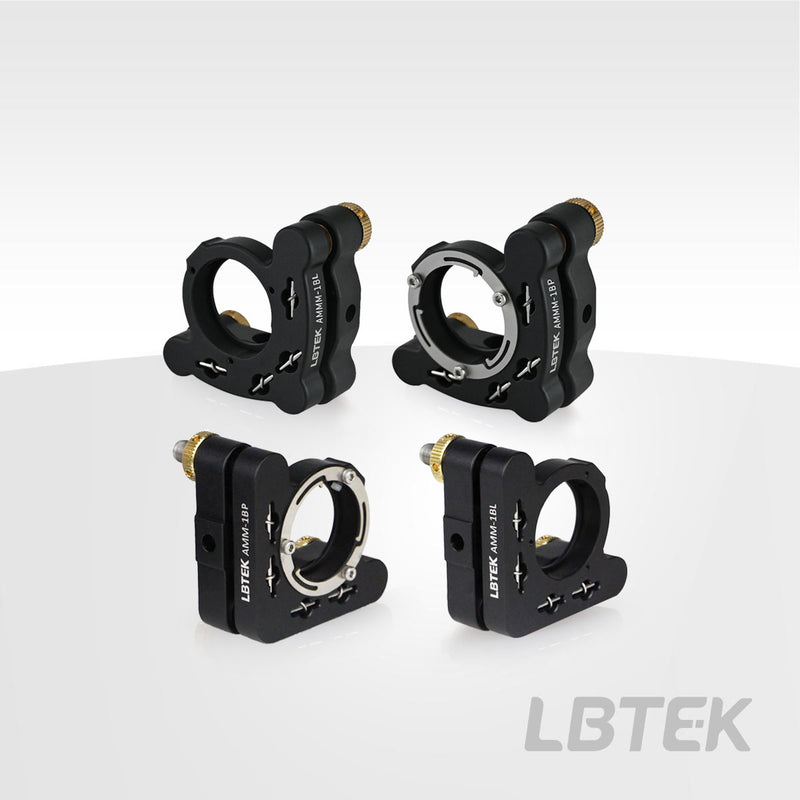

The LBTEK Standard 2-Axis O-Type Optical Mount is for optical components with a diameter of Ø25.4 mm and an optical axis height of 25.4 mm. The base of the mount features counterbore holes for M4 screws for connection and installation. The AMM-1BL model uses set screws to secure optical components and can accommodate a minimum thickness of 3 mm. The AMM-1BP model employs a dual clamping mechanism with set screws and an elastic retaining ring to fix optical components. The set screws can secure components with a minimum thickness of 3 mm, while the dual clamping ring can hold components up to 6.5 mm thick. The mount is equipped with two M6×0.25 precision adjusters, which can be locked with locknuts, providing pitch and yaw adjustment ranges of ±4° with 0.4° per rotation. The adjusters do not come with knobs but can be adjusted using a 2.0 mm hex wrench or an HWS-2 hex wrench with a knob. Purchasing the LBTEK Standard O-Type Optical Mount includes one 2.0 mm hex wrench and two M4 cylindrical head hex screws. The AMMM-1BL and AMMM-1BP models have short processing cycles, meeting the mass production and rapid delivery requirements. They use two tension springs with wire diameters of 0.65 mm and 0.8 mm, respectively, ensuring better stability for the optical mount.
