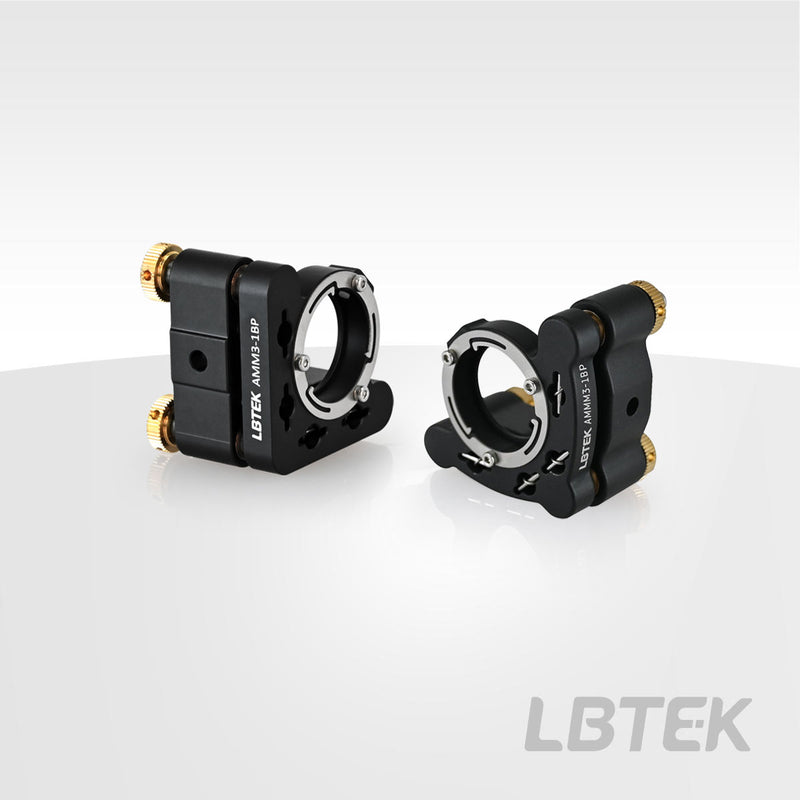

Standard O-Type Optical Mounts (Industrial Grade) AMM3-1BP

The LBTEK Standard O-Type Optical Mount AMM3-1BP uses both set screws and an elastic retaining ring for dual clamping and securing of optical components, with an optical axis height of 25.4 mm. The base of the mount features counterbore holes for M4 screws, used for connecting mounting rods. The mount can accommodate optical components with a diameter of 25.4 mm and a minimum thickness of 3.0 mm. It is equipped with three M6×0.25 precision adjusters that can be locked with locknuts, providing adjustment ranges of ±4° in pitch and yaw, with 0.41° per rotation. The adjusters do not come with knobs but can be adjusted using the included knurled hex wrench HWS-2. Purchasing the LBTEK Standard O-Type Optical Mount includes one knurled hex wrench HWS-2 and two M4 socket head cap screws. The AMMM3-1BP has a short processing cycle, meeting the mass production and rapid delivery requirements. It employs two tension springs with wire diameters of 0.65 mm and two with 0.8 mm, ensuring better stability for the optical mount.
