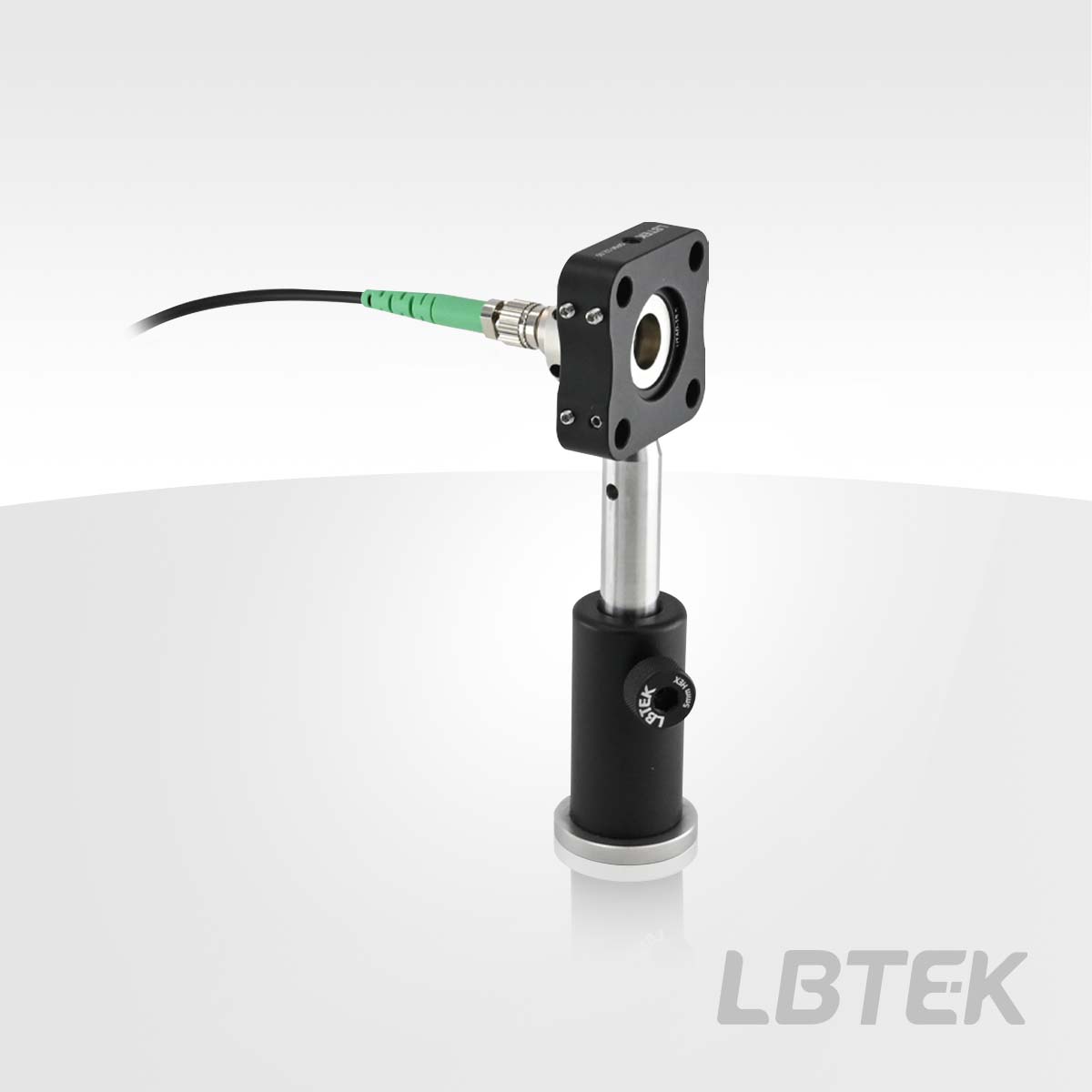

Triaxial Fiber Collimator FP3-F11PC-A

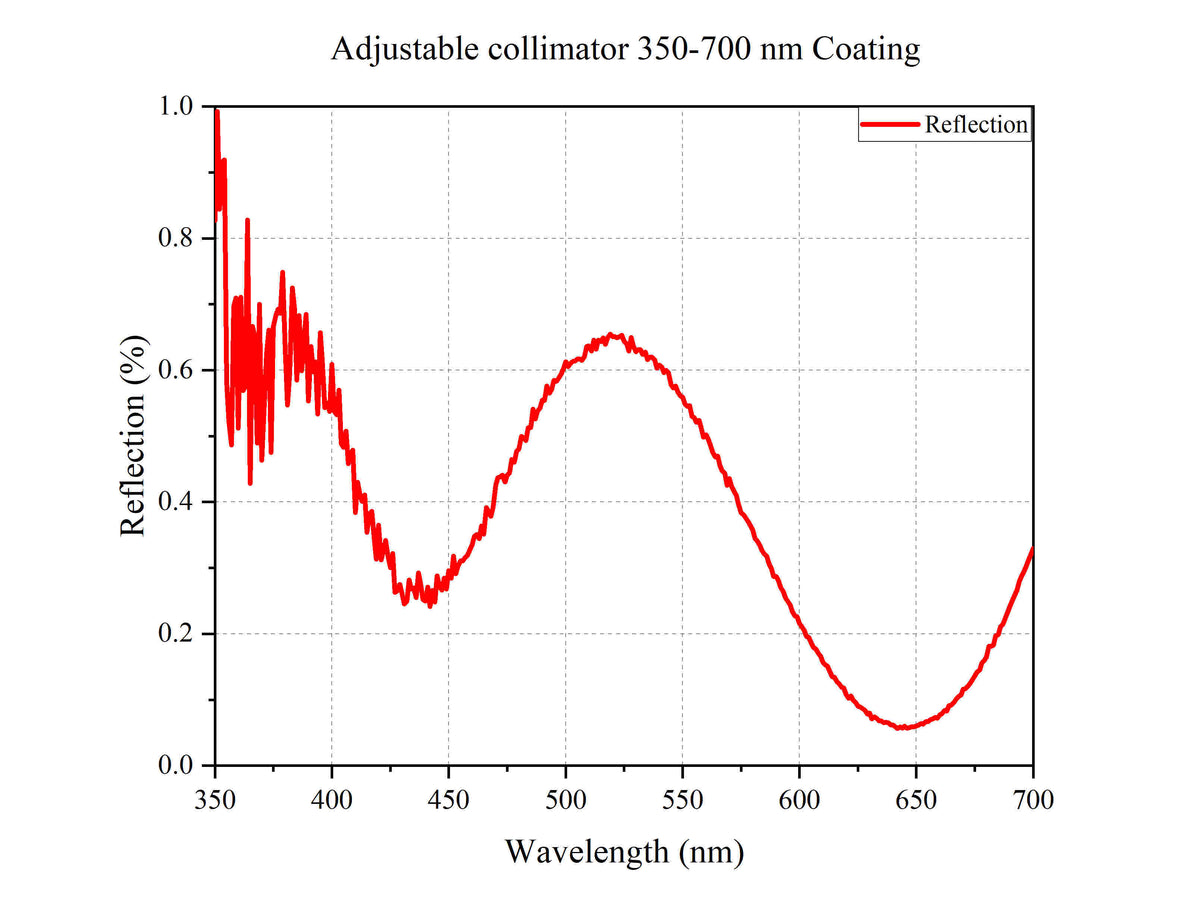

LBTEK's FC/PC connector three-axis fiber collimator has a coating wavelength of 350-700 nm; a focal length of 11 mm; when the connector and fiber remain stationary, the built-in lens has three alignment degrees of freedom: pitch and yaw angle alignment and Z-axis adjustment. The pitch and yaw angle travel range is ±5°, and the Z-direction travel range is ±1 mm. After inserting the fiber, tighten the set screw on the side to secure the fiber position. Once alignment is completed, tighten the locking screw on the housing side to fix the Z-axis position. The purchase of the collimator includes corresponding eccentric adjustment components.

• Focal length: 11 mm
• Connector type: FC/PC
• Coating type: A-coating
• Multimode fiber applications supported
