Ultrafast Mirror, UVFS, Diameter 25.4 mm, Operating Wavelength 460 nm-590 nm UFPM10-A2-SP

UFPM10-A2-SP
$235.45
In Stock
Key Specifications
Wavelength460–590nm
Diameter 25.4mm
Request Quote

Design Tools

Time-Bandwidth Product Check if your pulse is transform-limited Pulse Stretching & Compression Calculate GVD, TOD, and pulse broadening Gaussian Beam Calculator Model beam propagation through your optical system Wavelength ↔ Wavenumber Convert between wavelength, frequency, and energy
View all 49 calculators →
RoHS REACH

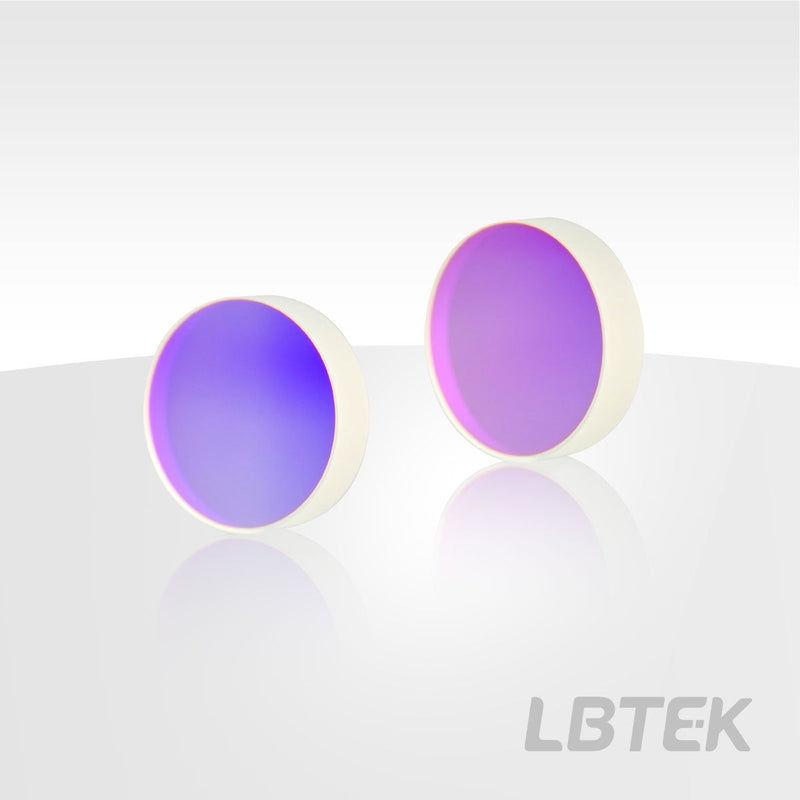

Ultrafast Mirror — Model UFPM10-A2-SP

Operating wavelength 460 nm-590 nm, Ø25.4 mm, thickness 6 mm, substrate fused quartz.

Product Description

  • Low Group Delay Dispersion Dielectric Coating, using Ion Beam Sputtering (IBS) Process
  • Wavelength range from 340 nm to 1700 nm
  • Lower Coefficient of Thermal Expansion and extremely high thermal shock stability
  • Suitable for high-power femtosecond pulse lasers and imaging fields
  • For 45° incidence

The substrate material of LBTEK ultrafast mirrors is fused silica, with a high-reflectance coating on the surface being a low group delay dispersion dielectric coating deposited using ion-beam sputtering (IBS). During the ion-beam sputtering process, a high-energy electric field accelerates the ion beam toward the target, causing ions to be sputtered from the target and releasing more ions, which ultimately deposit the coating on a rotating substrate. Using ion-beam sputtering enables high repeatability in batch coating and low coating layer thickness errors, thereby ensuring the corresponding design wavelength range and low group delay dispersion.

Fused silica has a lower coefficient of thermal expansion and extremely high thermal shock stability, making it particularly suitable for high-power femtosecond pulsed lasers and imaging applications. Note: The direction indicated by the arrow engraved on the side edge corresponds to the coated surface.

Ultrafast Mirror

  • Wavelength range from 340 nm to 1700 nm
  • Commonly used for optical path deflection
  • Suitable for high-power femtosecond pulsed laser and image fields

LBTEK Ultrafast Mirrors are commonly used for optical path deflection. Fused Silica has a lower Coefficient of Thermal Expansion and extremely high thermal vibration stability, making Ultrafast Mirrors particularly suitable for high-power femtosecond pulse lasers and imaging applications. Additionally, LBTEK Ultrafast Mirrors meet the requirement of a 45° incidence angle for the beam, with reflectance exceeding 99%.

Operating Wavelength460 nm-590 nm
Materialfused quartz
Diameter25.4 mm
Diameter Tolerance+0.0/-0.1 mm
Thickness6 mm
Thickness Tolerance±0.1 mm
Clear Aperture>90%CA
CoatingLow Group Delay Dispersion Dielectric Thin Film
ReflectivityRs>99%@460-590 nm, Rp>99%@480-560 nm(45°AOI)
Surface Quality (Scratch/Dig)20/10
Surface Parallelism<3 arcsec
Flatness (@633 nm)λ/10
Group Delay Dispersion|GDDs|<30 fs²@460-590 nm, |GDDs|<30 fs²@480-560 nm
Backside ProcessingFrosted
Specification Sheet PDF — Download
CAD Drawing Download
3D Model (STL) STL — Download

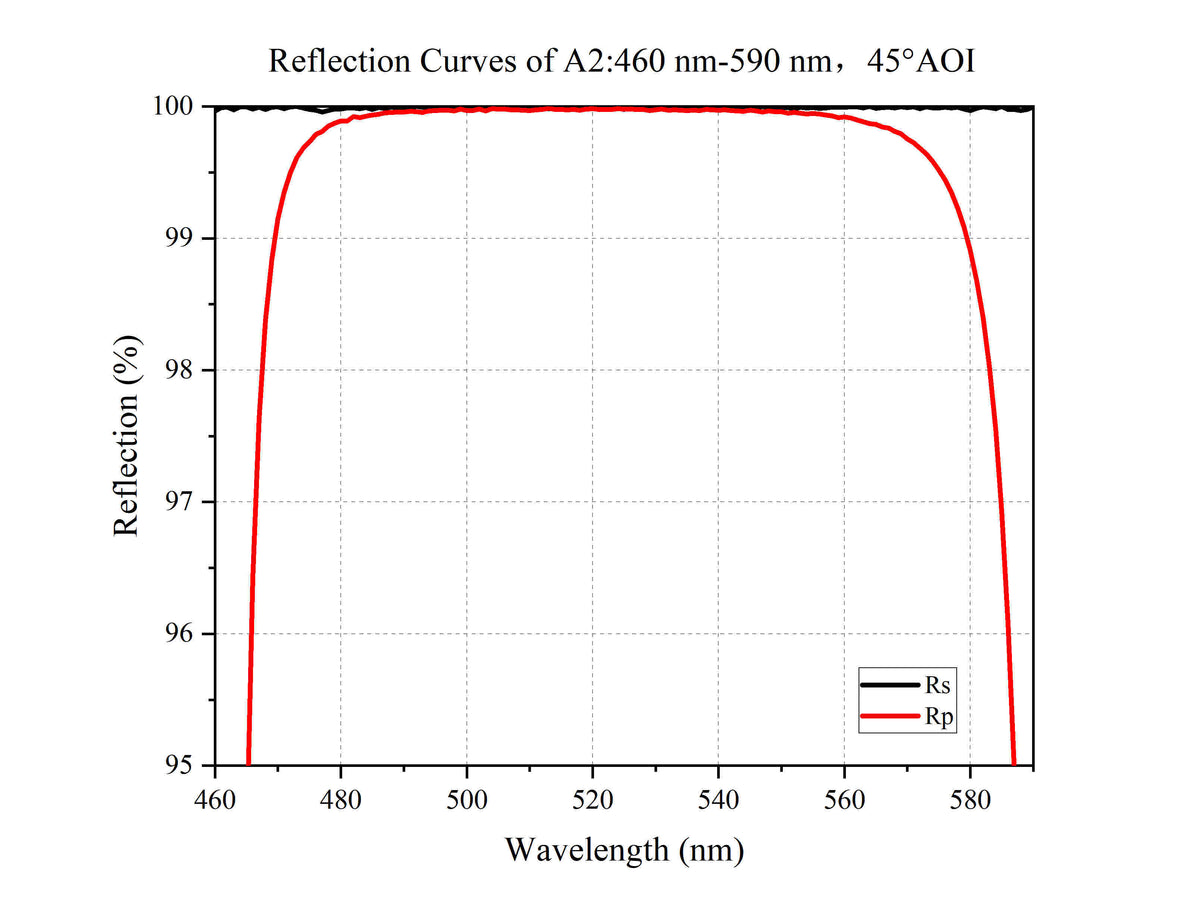

Reflection Curves of A2:460 nm-590 nm, 45°AOI
Reflection Curves of A2:460 nm-590 nm, 45°AOI

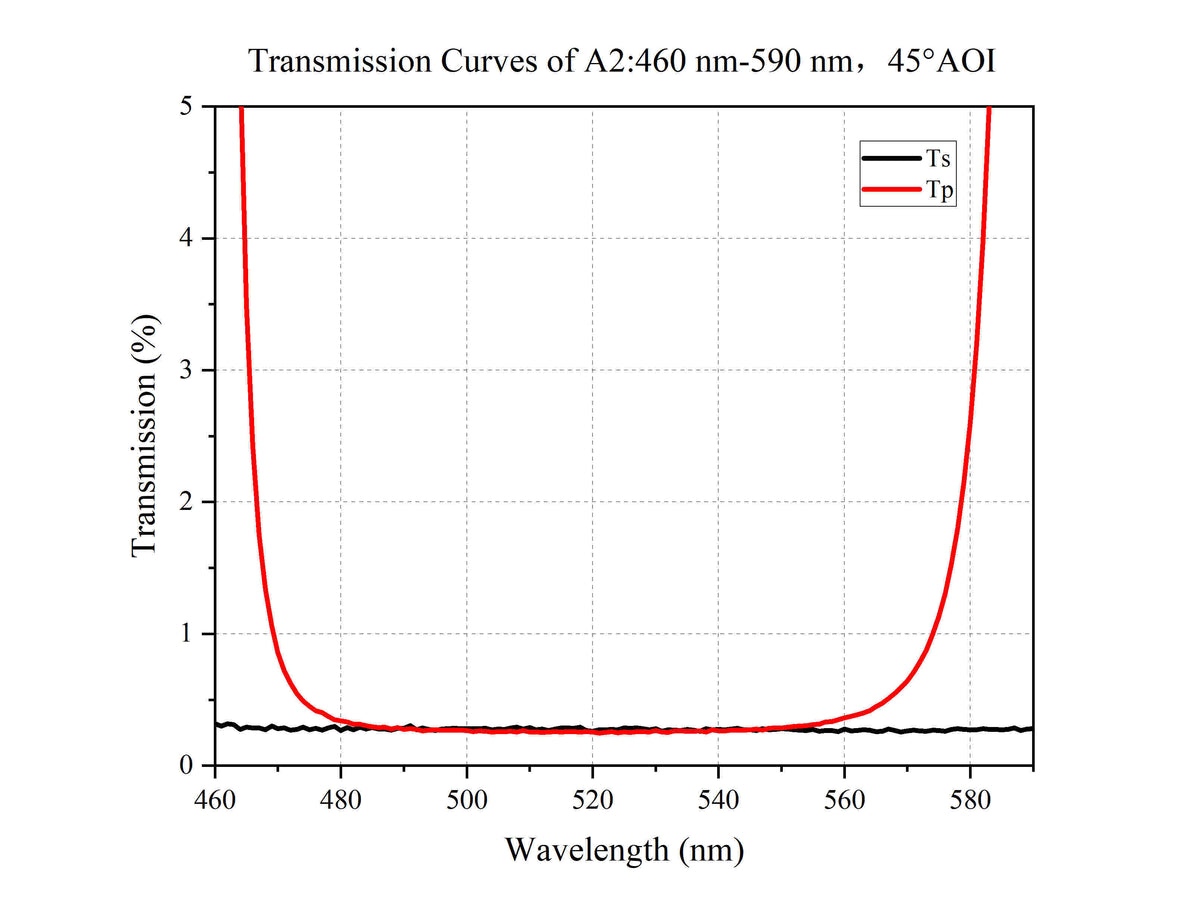

Transmission Curves of A2:460 nm-590 nm, 45°AOI
Transmission Curves of A2:460 nm-590 nm, 45°AOI

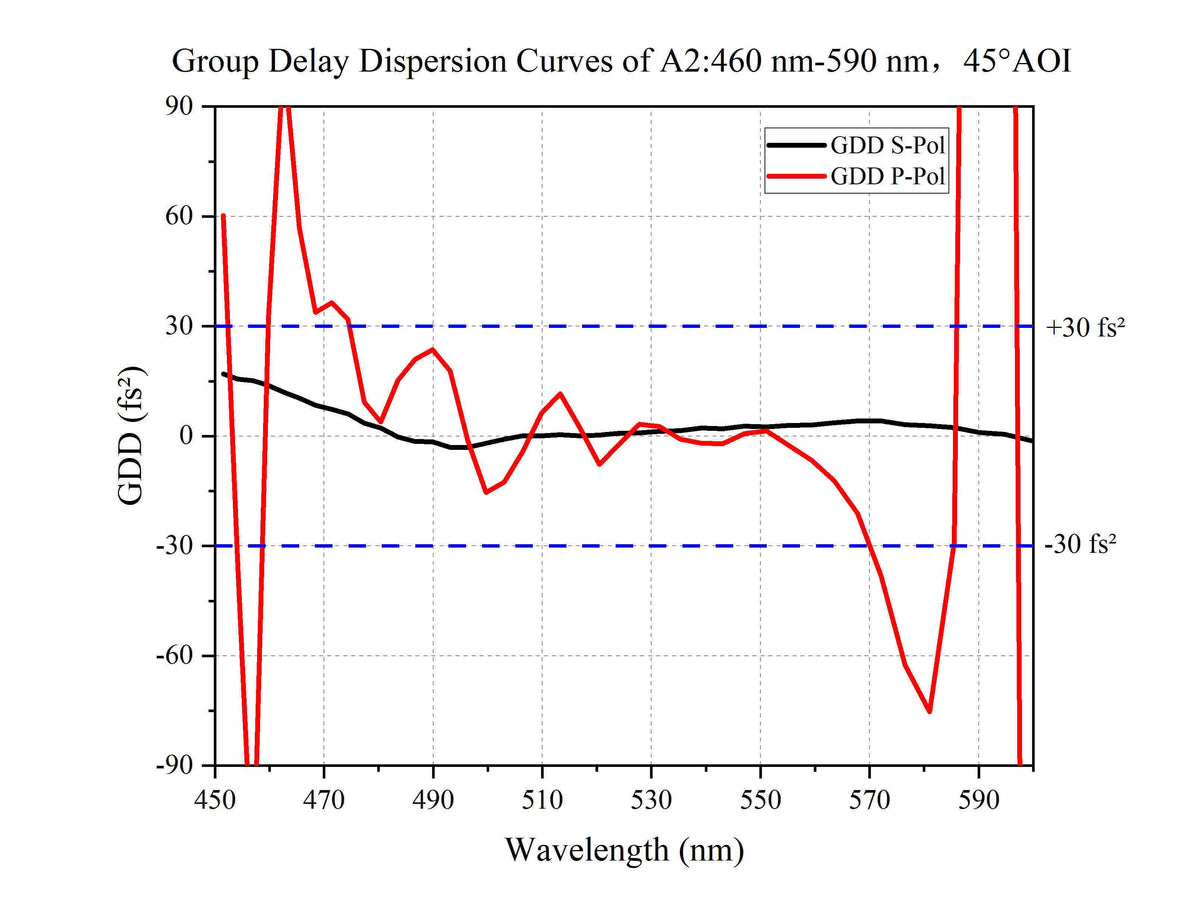

Group Delay Dispersion Curves of A2:460 nm-590 nm, 45°AOI
Group Delay Dispersion Curves of A2:460 nm-590 nm, 45°AOI
