Ultrafast Mirror, UVFS, Diameter 50.8 mm, Working Wavelength 340 nm-425 nm UFPM20-UVB

UFPM20-UVB
$613.61
In Stock
Key Specifications
Diameter 50.8mm
LIDT 0.081J/cm²
Request Quote

Design Tools

Time-Bandwidth Product Check if your pulse is transform-limited Pulse Stretching & Compression Calculate GVD, TOD, and pulse broadening Gaussian Beam Calculator Model beam propagation through your optical system LIDT Calculator Verify damage threshold for your laser parameters
View all 49 calculators →
RoHS REACH

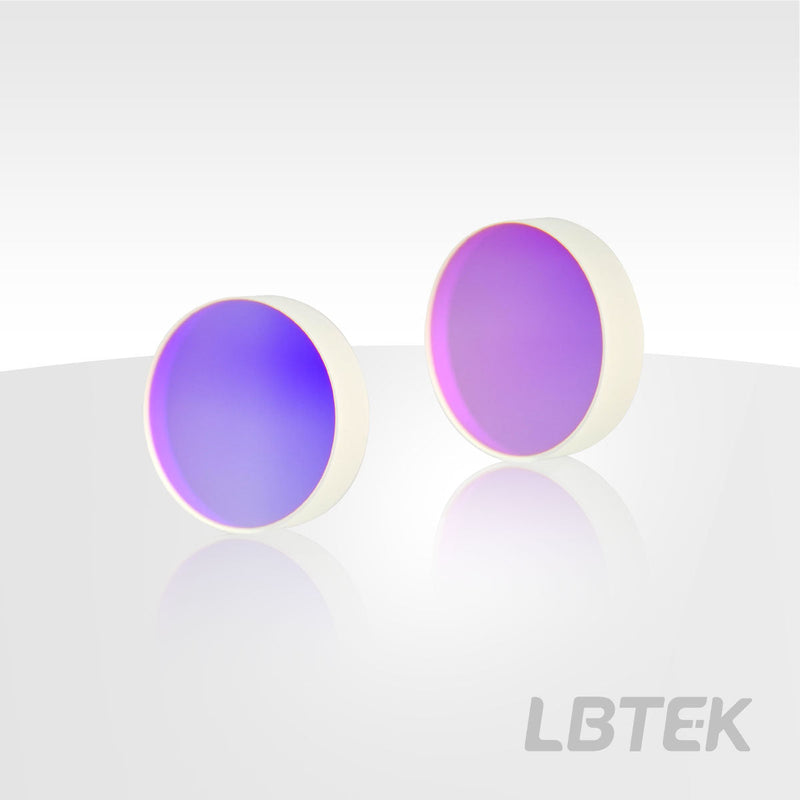

Ultrafast Mirror — Model UFPM20-UVB

Operating wavelength 340 nm-425 nm, Ø50.8 mm, thickness 12 mm, substrate UV fused silica.

Product Description

  • Low Group Delay Dispersion Dielectric Coating, using Ion Beam Sputtering (IBS) Process
  • Wavelength range from 340 nm to 1700 nm
  • Lower Coefficient of Thermal Expansion and extremely high thermal shock stability
  • Suitable for high-power femtosecond pulse lasers and imaging fields
  • For 45° incidence

The substrate material of LBTEK ultrafast mirrors is fused silica, with a high-reflectance coating on the surface being a low group delay dispersion dielectric coating deposited using ion-beam sputtering (IBS). During the ion-beam sputtering process, a high-energy electric field accelerates the ion beam toward the target, causing ions to be sputtered from the target and releasing more ions, which ultimately deposit the coating on a rotating substrate. Using ion-beam sputtering enables high repeatability in batch coating and low coating layer thickness errors, thereby ensuring the corresponding design wavelength range and low group delay dispersion.

Fused silica has a lower coefficient of thermal expansion and extremely high thermal shock stability, making it particularly suitable for high-power femtosecond pulsed lasers and imaging applications. Note: The direction indicated by the arrow engraved on the side edge corresponds to the coated surface.

Ultrafast Mirror

  • Wavelength range from 340 nm to 1700 nm
  • Commonly used for optical path deflection
  • Suitable for high-power femtosecond pulsed laser and image fields

LBTEK Ultrafast Mirrors are commonly used for optical path deflection. Fused Silica has a lower Coefficient of Thermal Expansion and extremely high thermal vibration stability, making Ultrafast Mirrors particularly suitable for high-power femtosecond pulse lasers and imaging applications. Additionally, LBTEK Ultrafast Mirrors meet the requirement of a 45° incidence angle for the beam, with reflectance exceeding 99%.

Operating Wavelength340 nm-425 nm
MaterialUV fused silica
Diameter50.8 mm
Diameter Tolerance+0.0/-0.1 mm
Thickness12 mm
Thickness Tolerance±0.1 mm
Clear Aperture>90%CA
CoatingLow Group Delay Dispersion Dielectric Thin Film
ReflectivityRs>99%@340-425 nm, Rp>99%@340-425 nm(45°AOI)
Surface Quality (Scratch/Dig)20/10
Surface Parallelism<10 arcsec
Flatness (@633 nm)λ/10
Group Delay Dispersion|GDDs|<30 fs²@340-425 nm, |GDDp|<30 fs²@360-400 nm
Damage threshold0.081 J/cm2 (400 nm, 55 fs FWHM, S-Pol, 1 Pulse) 0.062 J/cm2 (400 nm, 55 fs FWHM, S-Pol, 10000 Pulses)
Backside Processingpolish
Specification Sheet PDF — Download
CAD Drawing Download
3D Model (STL) STL — Download

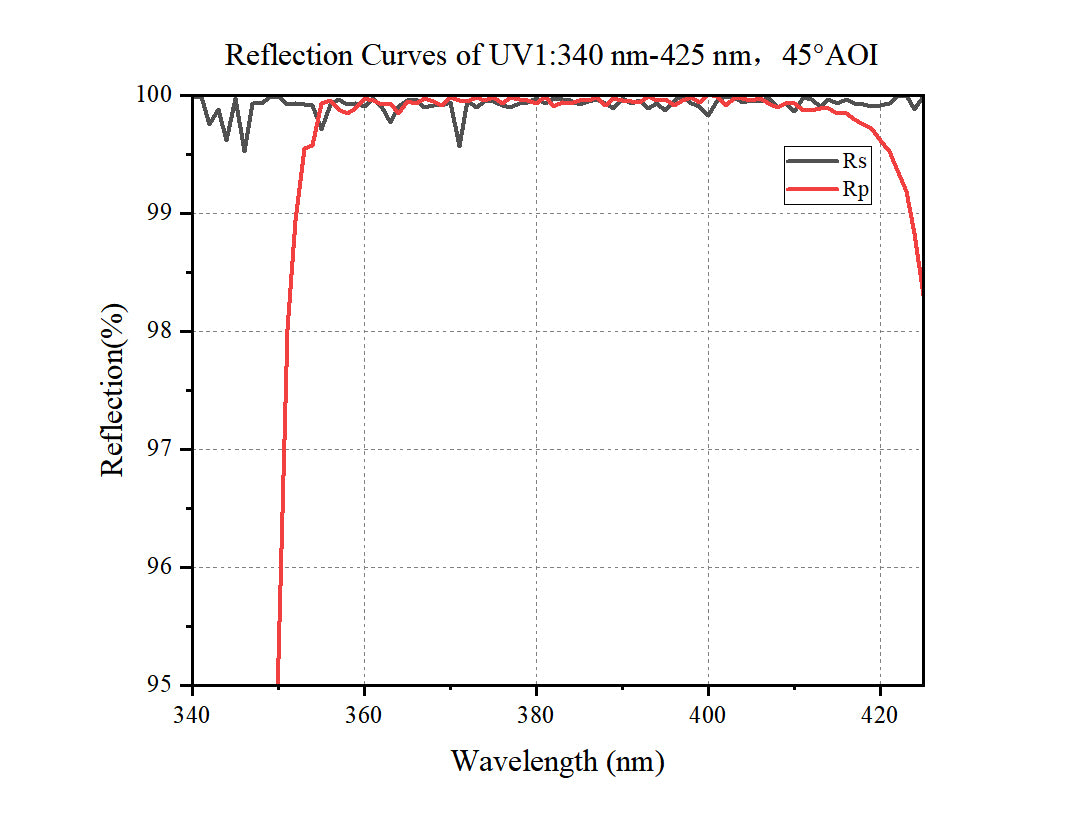

Reflection Curves of UV1:340 nm-425 nm, 45°AOI
Reflection Curves of UV1:340 nm-425 nm, 45°AOI

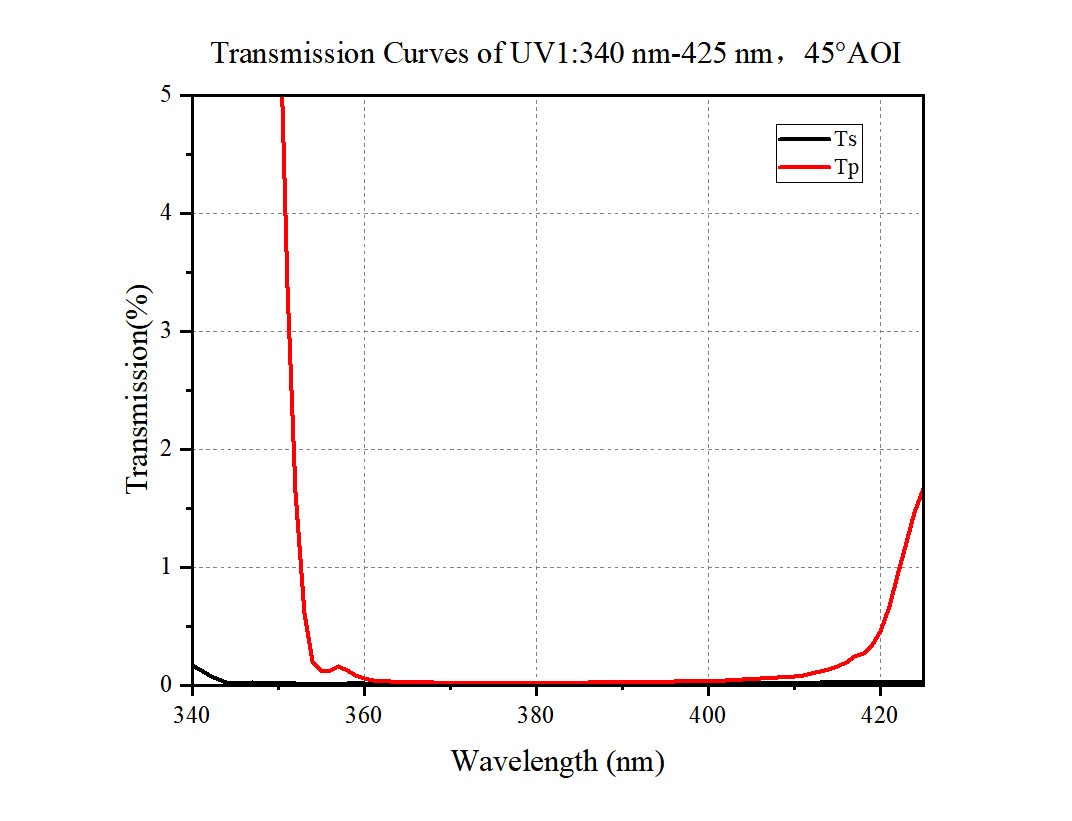

Transmission Curves of UV1:340 nm-425 nm, 45°AOI
Transmission Curves of UV1:340 nm-425 nm, 45°AOI

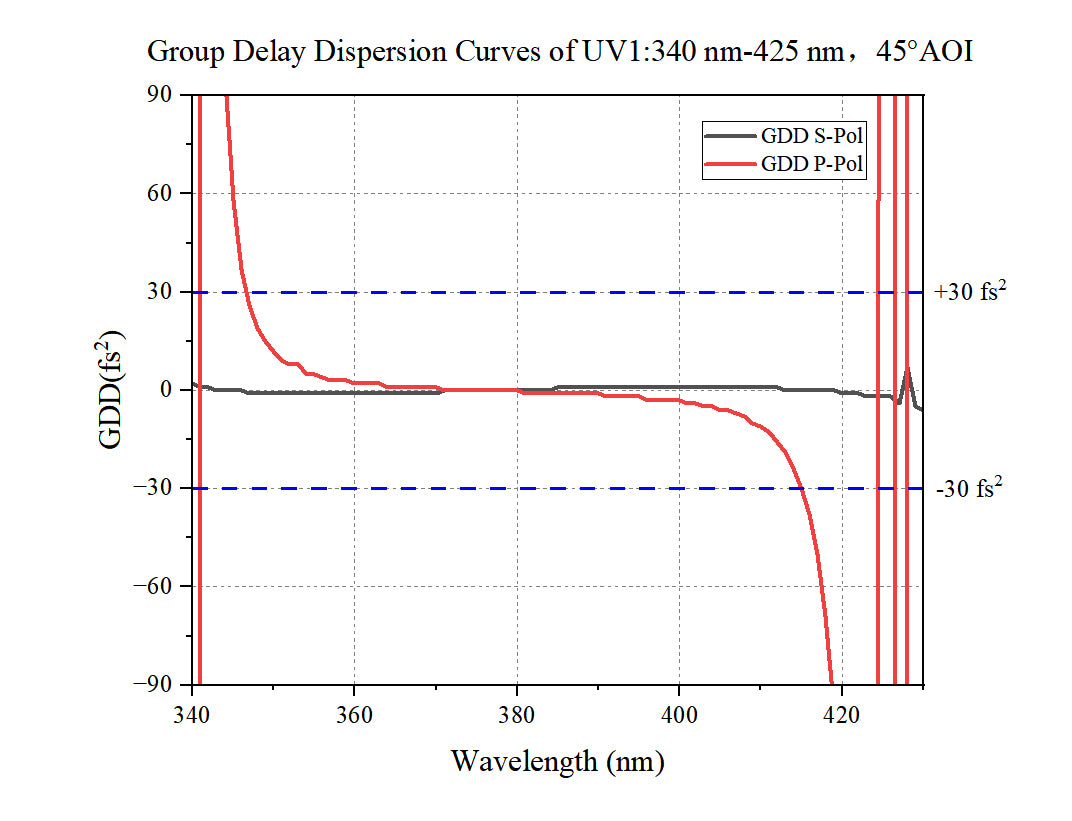

Group Delay Dispersion Curves of UV1:340 nm-425 nm, 45°AOI
Group Delay Dispersion Curves of UV1:340 nm-425 nm, 45°AOI
