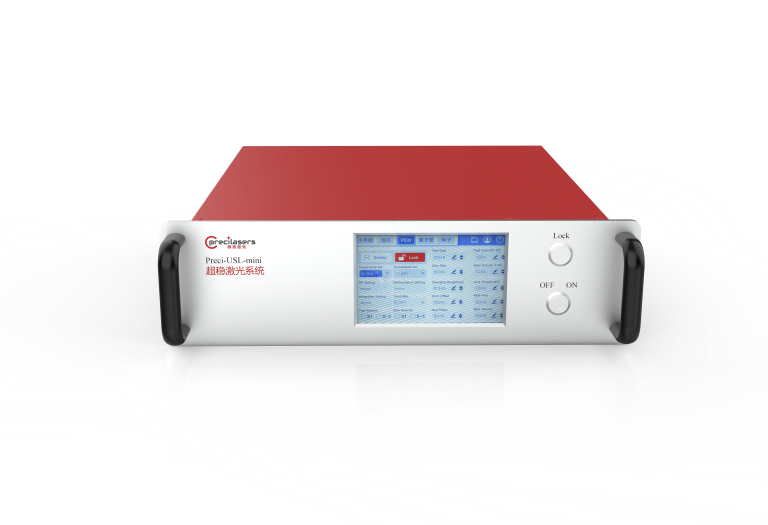

Ultra-stable laser system Preci-USL-mini
Contact for pricing
Contact Sales
Design Tools
Photonics Calculators
Explore 49 free online calculators for photonics design
Unit Converters
Convert between wavelength, frequency, power, and more
View all 49 calculators →
RoHS
REACH
Ultra-stable laser system Preci-USL-mini Based on a 2cm high-finesse F-P cavity with an all-fiber optical path, Precilasers offers a narrow-linewidth ultra-stable laser system with stability approaching the thermal noise limit. It covers a wavelength range of 400nm-2000nm, with a typical linewidth of <10Hz.
Features
- All
- Fiber Structure Small volume
- Portable Optional sideband frequency
Applications
- Atomic Ion Laser Cooling
- Quantum Simulation Quantum Computing
- Micro
- Nano Optical Testing
| Models | Preci-USL-mini |
|---|---|
| Optional Wavelengths | 400-2000nm |
| Typical Wavelength | 480nm / 580nm / 780nm / 852nm / 1080nm / 1560nm, 1762nm |
| Features & Advantages | All-fiber, small volume |
| Linewidth* | <10Hz |
| Stability** | <1×10 -14 @1s |
| Active Vibration Isolation Table | Optional |
| Cavity Length | 2cm |
| Free Spectral Range | 7.5GHz |
| Finesse | 1000, 10000, 200000 |
| Drift | <0.2Hz/s (<20kHz/day) |
| Vacuum Degree | <1×10 -7 mbar |
| Cavity Mirror Parameters | ULE material, plane-concave cavity; concave mirror curvature radius optional (500mm/1000mm/2000mm) |
| Operating Temperature | 20±7°C |
| Ambient Temperature Sensitivity | <3mK/°C |
| Power Supply | 100V-240V, AC, 50/60Hz |
| Weight | 20kg |
| Dimensions | 42cm×13cm×45cm |
| Seed Integration | Seed can be built-in, with output power >20mW |
| Active Vibration Isolation | Optional active vibration isolation table |
| Sideband Locking Option | Integratable sideband frequency shifting EOM (bandwidth >1.5GHz) |
Source: Precilasers manufacturer datasheet. Download the brochure (PDF) from the Documents tab for full details.
