USB Laser Power Meters HPM5-USB
HPM5-USB$1,846.07
In Stock
Key Specifications
Wavelength
190.0nm
Design Tools
View all 49 calculators →RoHS
REACH
HPM5-USB

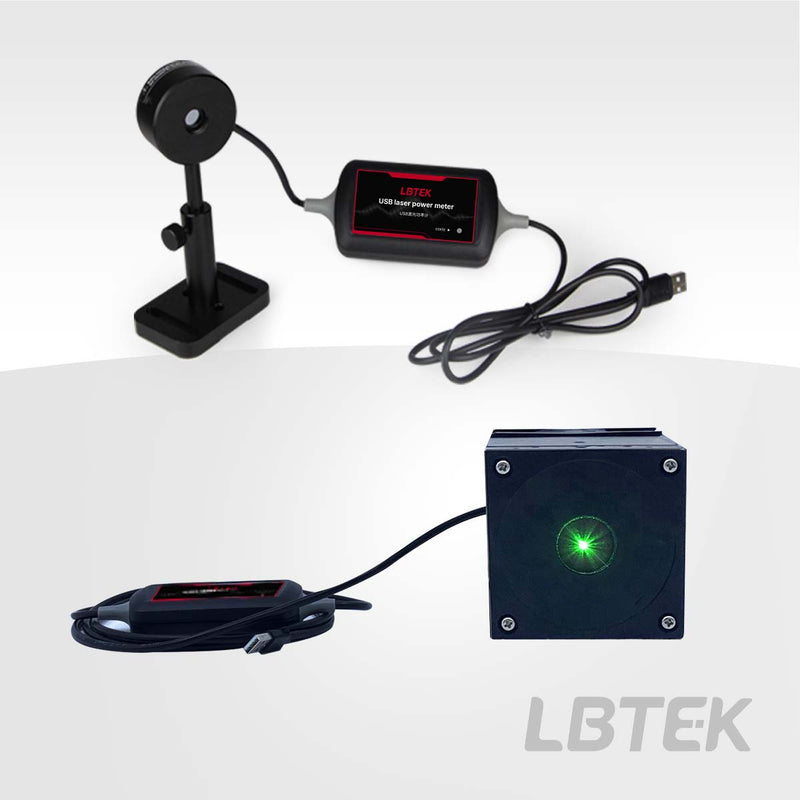

USB Thermopile Power Sensor — 190 nm-15 μm, 500 μW-5 W
Overview
The HPM5-USB is a thermopile power sensor with USB interface for broadband laser measurement. Covers 190 nm-15 μm with 500 μW-5 W range.
Key Features
- Wavelength: 190 nm-15 μm
- Power/Energy: 500 μW-5 W
- Aperture: 9 mm mm
- Sensor: Thermopile
- Interface: USB 2.0
- Response time: <1 sec(0-90%)
Applications
- Laser power monitoring
- Pulsed laser energy measurement
- Industrial process control
- R&D laser characterization
| Operating Wavelength | 190 nm-15 μm |
| Maximum incident spot diameter | 9 mm |
| Power Range | 500 μW-5 W |
| Maximum Power Density | 1.5 kW/cm2 |
| Detector material | Thermopile |
| Detector Coating | Broadband coating |
| Sensitivity | 500 μW |
| Calibration Uncertainty | ±2% |
| Linearity | ±0.5% |
| Response Time | <1 sec（0-90%） |
| Host Data Transmission Interface | USB 2.0 |
| Operating Temperature | 5 °C-45 °C |
| Storage Temperature | -20 °C-70 °C |
CAD Drawing
Download
Click and drag to rotate. Scroll to zoom.
Product Family: USB Laser Power Meters (15 variants)
| Product | SKU | Operating Wavelength | Maximum incident spot diameter | Power Range | |
|---|---|---|---|---|---|
| USB Laser Power Meters PPM350-1000-USB |
PPM350-1000-USB
| 350 nm-1100 nm | 9.5 mm | — | View |
| USB Laser Power Meters PPM350S-1000-USB |
PPM350S-1000-USB
| 350 nm-1100 nm | 10 mm | — | View |
| USB Laser Power Meters PPM200-1000-USB |
PPM200-1000-USB
| 200 nm-1100 nm | 9.5 mm | — | View |
| USB Laser Power Meters PPM200-20-USB |
PPM200-20-USB
| 200 nm-1100 nm | 9.5 mm | 1 nW-20 mW | View |
| USB Laser Power Meters PPM200S-20-USB |
PPM200S-20-USB
| 200 nm-1100 nm | 10 mm | 1 nW-20 mW | View |
| USB Laser Power Meters PPM350-3000-USB |
PPM350-3000-USB
| 350 nm-1100 nm | 12 mm | 1 μW-3000 mW | View |
| USB Laser Power Meters TPM2-USB |
TPM2-USB
| 190 nm-25 μm | 22 mm | 2 mW-2 W | View |
| USB Laser Power Meters TPM5-USB |
TPM5-USB
| 190 nm-25 μm | 22 mm | 5 mW-5 W | View |
| USB Laser Power Meters TPM15-USB |
TPM15-USB
| 190 nm-25 μm | 22 mm | 10 mW-15 W | View |
| USB Laser Power Meters TPM35-USB |
TPM35-USB
| 190 nm-25 μm | 22 mm | 10 mW-35 W | View |
| USB Laser Power Meters TPM50-USB |
TPM50-USB
| 190 nm-25 μm | 22 mm | 10 mW-50 W | View |
| USB Laser Power Meters TPM100-USB |
TPM100-USB
| 190 nm-20 μm | 25 mm | 0.5 W-100 W | View |
| USB Laser Power Meters TPM200-USB |
TPM200-USB
| 190 nm-20 μm | 25 mm | 0.5 W-200 W | View |
| USB Laser Power Meters HPM1-USB |
HPM1-USB
| 190 nm-15 μm | 9 mm | 100 μW-1 W | View |
| USB Laser Power Meters HPM5-USB Current |
HPM5-USB
| 190 nm-15 μm | 9 mm | 500 μW-5 W |
