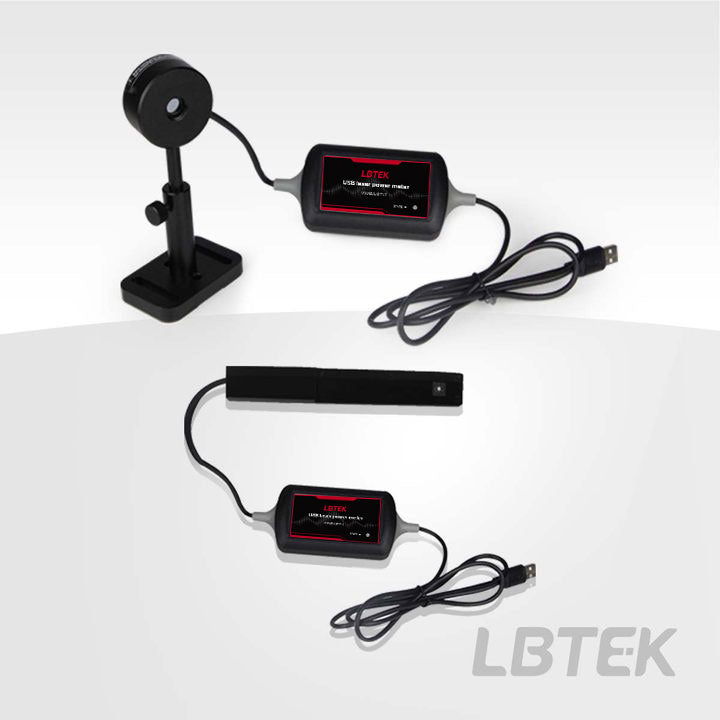

USB Laser Power Meters PPM200S-20-USB
PPM200S-20-USB$1,342.71
In Stock· Ships in 4.0 weeks
Key Specifications
Wavelength
200.0nm
Design Tools
View all 49 calculators →RoHS
REACH
PPM200S-20-USB
USB Pyroelectric Energy Sensor — 200 nm-1100 nm, 1 nW-20 mW
Overview
The PPM200S-20-USB is a pyroelectric energy sensor with USB interface for pulsed laser measurement. Covers 200 nm-1100 nm with 1 nW-20 mW range.
Key Features
- Wavelength: 200 nm-1100 nm
- Power/Energy: 1 nW-20 mW
- Aperture: 10 mm mm
- Sensor: Si
- Interface: USB 2.0
- Response time: ?
Applications
- Laser power monitoring
- Pulsed laser energy measurement
- Industrial process control
- R&D laser characterization
| Operating Wavelength | 200 nm-1100 nm |
| Maximum incident spot diameter | 10 mm |
| Power Range | 1 nW-20 mW |
| Maximum Power Density | 1 W/cm2 |
| Detector material | Si |
| Sensitivity | 1 nW |
| Calibration Uncertainty | ±2% |
| Linearity | ±1% |
| Host Data Transmission Interface | USB 2.0 |
| Operating Temperature | 5 °C-45 °C |
| Storage Temperature | -20 °C-70 °C |
CAD Drawing
Download
Click and drag to rotate. Scroll to zoom.
Product Family: USB Laser Power Meters (15 variants)
| Product | SKU | Operating Wavelength | Maximum incident spot diameter | Power Range | |
|---|---|---|---|---|---|
| USB Laser Power Meters PPM350-1000-USB |
PPM350-1000-USB
| 350 nm-1100 nm | 9.5 mm | — | View |
| USB Laser Power Meters PPM350S-1000-USB |
PPM350S-1000-USB
| 350 nm-1100 nm | 10 mm | — | View |
| USB Laser Power Meters PPM200-1000-USB |
PPM200-1000-USB
| 200 nm-1100 nm | 9.5 mm | — | View |
| USB Laser Power Meters PPM200-20-USB |
PPM200-20-USB
| 200 nm-1100 nm | 9.5 mm | 1 nW-20 mW | View |
| USB Laser Power Meters PPM200S-20-USB Current |
PPM200S-20-USB
| 200 nm-1100 nm | 10 mm | 1 nW-20 mW | |
| USB Laser Power Meters PPM350-3000-USB |
PPM350-3000-USB
| 350 nm-1100 nm | 12 mm | 1 μW-3000 mW | View |
| USB Laser Power Meters TPM2-USB |
TPM2-USB
| 190 nm-25 μm | 22 mm | 2 mW-2 W | View |
| USB Laser Power Meters TPM5-USB |
TPM5-USB
| 190 nm-25 μm | 22 mm | 5 mW-5 W | View |
| USB Laser Power Meters TPM15-USB |
TPM15-USB
| 190 nm-25 μm | 22 mm | 10 mW-15 W | View |
| USB Laser Power Meters TPM35-USB |
TPM35-USB
| 190 nm-25 μm | 22 mm | 10 mW-35 W | View |
| USB Laser Power Meters TPM50-USB |
TPM50-USB
| 190 nm-25 μm | 22 mm | 10 mW-50 W | View |
| USB Laser Power Meters TPM100-USB |
TPM100-USB
| 190 nm-20 μm | 25 mm | 0.5 W-100 W | View |
| USB Laser Power Meters TPM200-USB |
TPM200-USB
| 190 nm-20 μm | 25 mm | 0.5 W-200 W | View |
| USB Laser Power Meters HPM1-USB |
HPM1-USB
| 190 nm-15 μm | 9 mm | 100 μW-1 W | View |
| USB Laser Power Meters HPM5-USB |
HPM5-USB
| 190 nm-15 μm | 9 mm | 500 μW-5 W | View |
