Vertical Adjustment Mirror Mounts — Model VAM-1AB
✔ In Stock — Ships Today

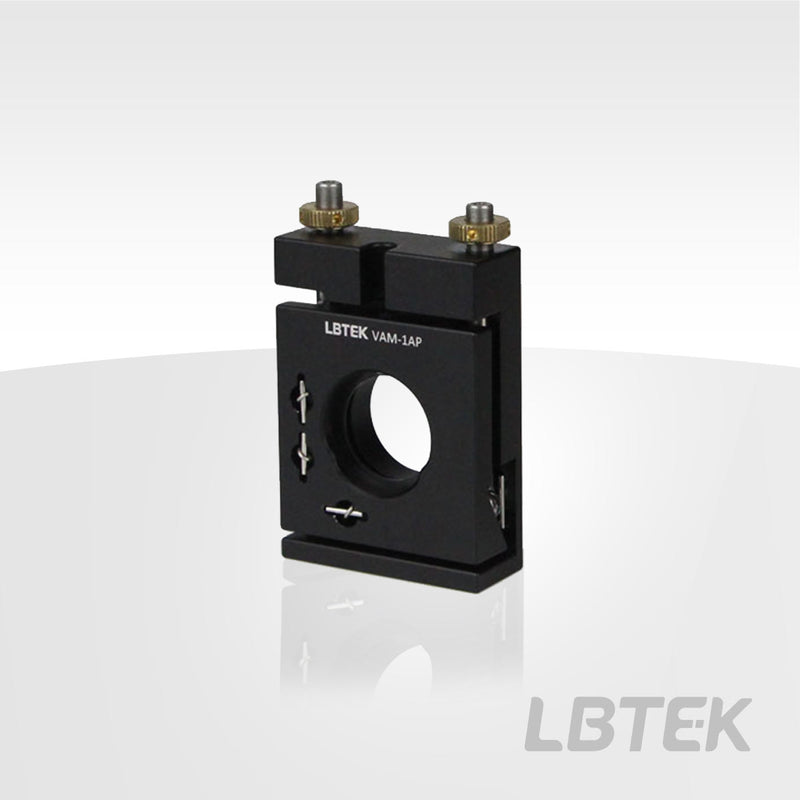

The LBTEK Vertical Adjustment Mirror Mounts can accommodate 25.4 mm optical components with a minimum thickness of 2.5 mm, secured by rubber-tipped set screws. It offers an adjustment range of ±3.5°, with adjustment precision of 0.36°/rotation for pitch and 0.37°/rotation for yaw. The mount features two M6×0.25 adjusters with locknuts, which can be adjusted using either the included HWS-2 knurled 2.0 mm hex key or a standard 2.0 mm hex key. Additionally, the vertical adjustment mount is available in two versions: with base and without base. The base-less version has three M4 threaded holes at the bottom for mounting posts, while the base version features M6 through-holes for direct mounting onto breadboards or other surfaces with M6 threaded holes. Note that the optical axis height differs between the base and base-less versions.
Key Features
- For optical components with a diameter of 25.4 mm and a minimum thickness of 2.5 mm, secured by set screws
- Adjustable angle ±3.5°, with adjustment precision of pitch/yaw: 0.36°/rotation, 0.37°/rotation respectively
- Multiple mounting methods available, with different optical axis heights for each method
- Adjusters with locknuts for long-term stability
Application
Mounting the VAM-1AP with a Ø12.7 mm post and a post holder
| Main material | 6061-T6 aluminum alloy |
| Surface Treatment | Black anodized |
| Applicable optical element diameter | Ø25.4 mm |
| Minimum applicable thickness for optical components | 2.5 mm |
| Optical component mounting method | Rubber-tipped set screw |
| Locking Mechanism | Lock nut |
| Adjuster Specification | M6×0.25 Precision Adjuster/2 pcs |
| Optical axis center height | 38.0 mm |
| Adjustable pitch/yaw angle range | ±3.5 ° |
| Pitch/Yaw Angle Accuracy | 0.36°/revolution, 0.37°/revolution |
| Hex Key Wrench | 2.0 mm Hex Wrench with Knob |
| Bottom thread hole specification/quantity | M6 through hole/3 pcs |
