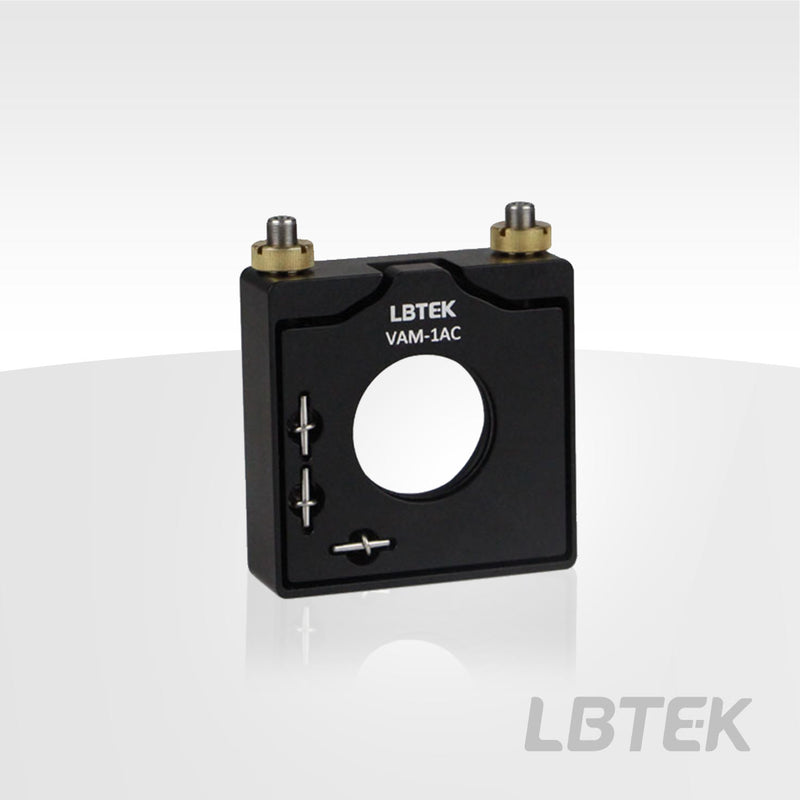

Vertical Adjustment Mirror Mounts VAM-1AC
✔ In Stock — Ships Today
LBTEK Vertical Adjustment Mirror Mount, designed for mounting optical components with a diameter of 25.4 mm and a maximum thickness of 6.2 mm, secured by a retaining ring. It offers an adjustment range of ±2.5°, with adjustment precision of 0.27°/rotation for pitch and 0.22°/rotation for yaw. Equipped with 2 M5×0.25 adjusters featuring lock nuts, it can be adjusted using the included HWS-2 knurled 2.0 mm hex keyh or a standard 2.0 mm hex key. The vertical adjustment mount features 2 Ø3 mm pin holes, 2 M4 threaded holes, 2 8-32 threaded holes, and 1 countersunk hole for M4 at the base, allowing mounting on posts or various other mounting devices. All the optical axis center height is 25.4 mm.
Key Features
- For optical components with a diameter of 25.4 mm and maximum thickness of 6.2 mm, secured by retaining rings with POM spacers
- Adjustable angle ±2.5°, adjustment precision for pitch/yaw: 0.27°/rotation and 0.22°/rotation respectively
- Multiple bottom mounting interfaces available, maintaining same optical axis height across different interfaces
- Adjusters with locknuts for long-term stability
Application
Mounting the VAM-1AC with a Ø12.7 mm post and a post holder
| Surface Treatment | Black anodized |
| Applicable optical element diameter | Ø25.4 mm |
| Optical component mounting method | Retaining ring with POM spacer |
| Maximum applicable thickness of optical components | 6.2 mm |
| Main material | 6061-T6 aluminum alloy |
| Locking Mechanism | Lock nut |
| Optical axis center height | 25.4 mm |
| Bottom thread hole specification/quantity | M4 threaded holes/2, 8-32 threaded holes/2 |
| Pitch/Yaw Angle Accuracy | 0.27°/revolution, 0.22°/revolution |
| Hex Key Wrench | 2.0 mm hex wrench with knob, 3.0 mm hex wrench |
| Adjuster Specification | M5×0.25 Precision Adjuster/2 pcs |
| Adjustable pitch/yaw angle range | ±2.5 ° |
| Bottom countersunk hole specifications | M4 with countersunk hole |
| Mounting method | Ø3 mm pin hole |
