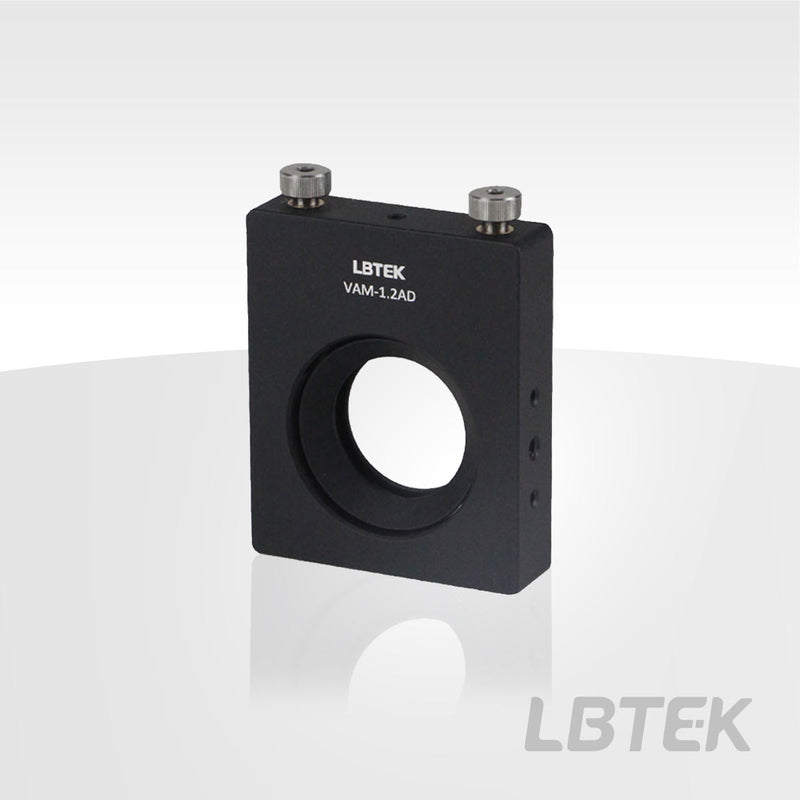

Vertical Adjustment Mirror Mounts — Model VAM-1AD
✔ In Stock — Ships Today
LBTEK Vertical Adjustment Mirror Mounts are designed to hold optical components with diameters of 30 mm, 25.4 mm, or 50.8 mm, and maximum thicknesses of 5 mm or 8 mm, secured by retaining rings. The adjustment range is ±1.2° or ±1.5°. Equipped with two M5×0.25 adjusters, each featuring a locking screw and either a knurled knob or a smooth knob for manual adjustment or hex key operation. The base includes two M3 threaded holes, while each side has either one M4 or M6 threaded hole and two M3 threaded holes, allowing mounting on posts or other mounting devices. Note that the optical axis height differs between base and side mounting configurations. The gimbal adjustment mechanism ensures the mirror's center point remains stationary during angle adjustments. This product is suitable for mounting mirrors as well as 45° incident beam splitters.
Key Features
- For optical components with a maximum thickness of 5 mm or 8 mm, secured by retaining rings with POM spacers
- Adjustable pitch and yaw angles of ±1.2° or ±1.5°
- Multiple mounting interfaces available on the bottom and both sides, with different optical axis heights for different interfaces
- Adjusters equipped with locking screws for long-term stability
- Including adjustment key
Application
Side mounting with Ø12.7 mm post allows alignment to the optical component's center.
No specifications available for this product.
CAD Drawing
Download
Click and drag to rotate. Scroll to zoom.
Product Family: Vertical Adjustment Mirror Mounts (8 variants)
| Product | SKU | Size | Clear Aperture | Operating Wavelength | |
|---|---|---|---|---|---|
| Vertical Adjustment Mirror Mounts VAM-1AP |
VAM-1AP
| — | — | — | View |
| Vertical Adjustment Mirror Mounts VAM-1AB |
VAM-1AB
| — | — | — | View |
| Vertical Adjustment Mirror Mounts VAM-1AD Current |
VAM-1AD
| — | — | — | |
| Vertical Adjustment Mirror Mounts VAM-1ADL |
VAM-1ADL
| — | — | — | View |
| Vertical Adjustment Mirror Mounts VAM-1.2AD |
VAM-1.2AD
| — | — | — | View |
| Vertical Adjustment Mirror Mounts VAM-1.2ADL |
VAM-1.2ADL
| — | — | — | View |
| Vertical Adjustment Mirror Mounts VAM-1A |
VAM-1A
| — | — | — | View |
| Vertical Adjustment Mirror Mounts VAM-1AC |
VAM-1AC
| — | — | — | View |
