2-inch Stainless Steel Optical Mounts MT-AM2

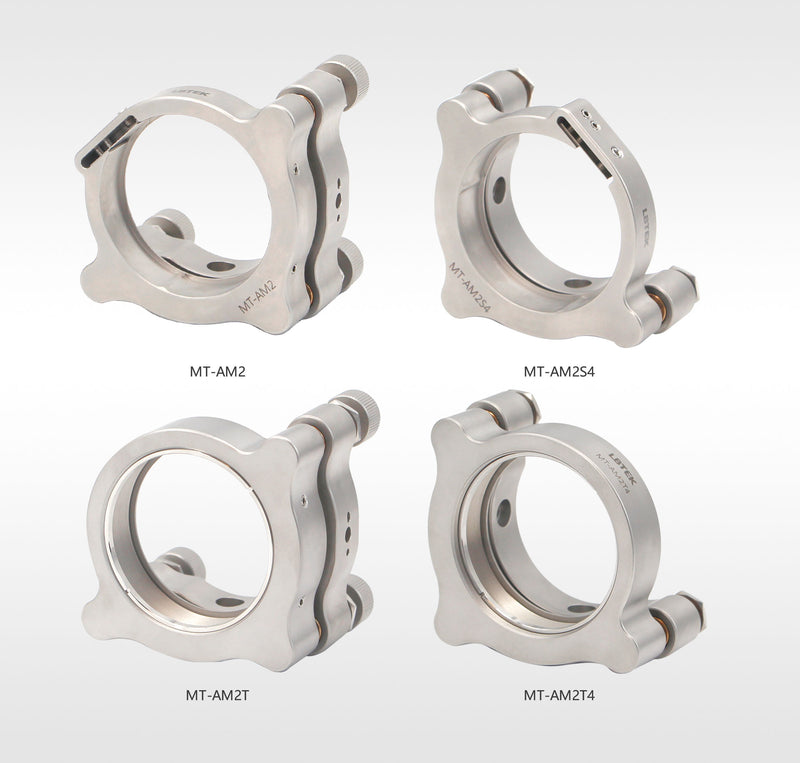

LBTEK 2-inch Stainless Steel Mount, suitable for Ø50.8 mm optical components. Two low-deformation mounting methods are available: MT-AM2 and MT-AM2S4 use flexure pieces and set screws, with a minimum optical component thickness of 4 mm. Three M6×0.25 precision adjusters provide the mount with an angular adjustment range of ±4°. Both knob and knobless versions are available—the knob version can be adjusted by hand or with a hex wrench, while the knobless version requires a hex wrench. The optical adjustment mount features M4 countersunk mounting holes on the side. The MT-AM2Tx series uses a retaining ring for direct fixation of optical components, with one stainless steel retaining ring included upon purchase. The maximum thickness for ring-mounted optical components is 12 mm. Each purchase includes two M4 hex socket screws and one each of 2.0 mm and 2.5 mm hex wrenches.
