2-inch Stainless Steel Optical Mounts MT-AM2S1
MT-AM2S1$520.97
In Stock
Design Tools
Photonics Calculators
Explore 49 free online calculators for photonics design
Unit Converters
Convert between wavelength, frequency, power, and more
View all 49 calculators →
Complete Your Setup
RoHS
REACH
The 2-inch Stainless Steel Optical Mounts MT-AM2S1 from WaveQuanta is a high-performance Mounts Holders designed for precision optical alignment and component mounting. Available from stock for immediate shipment. Sourced directly from WaveQuanta, this product meets the high standards required for scientific research and precision photonics applications.
ā In Stock ā Ships Today

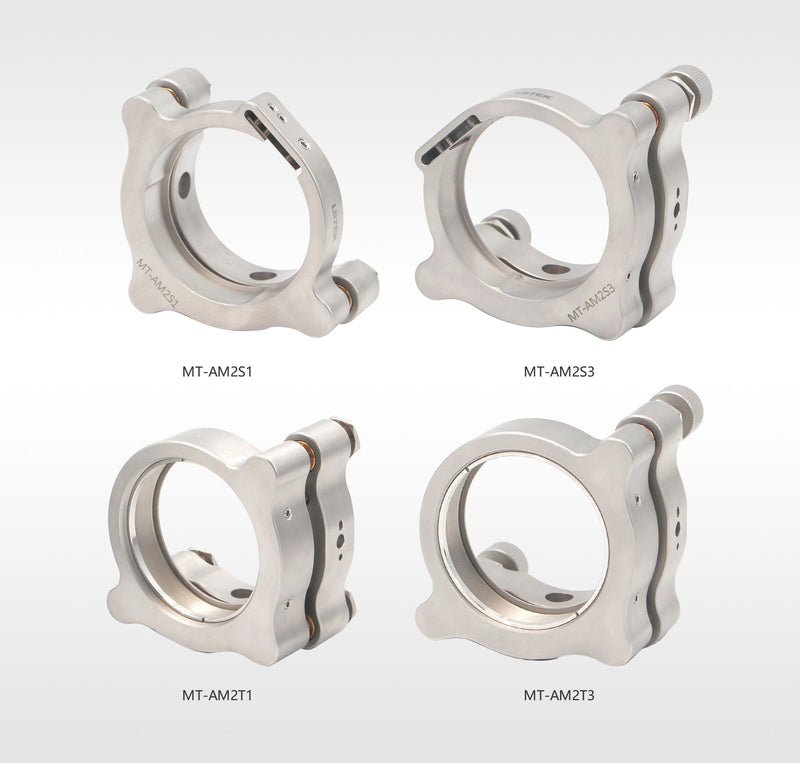

LBTEK 2-inch Stainless Steel Mounts for 50.8 mm diameter optical components. The optical components are secured via flexure pieces and set screws. Two M6Ć0.25 precision adjusters provide the mount with a Ā±4Ā° angular adjustment range. Available in versions with or without knobsāthe knob version allows adjustment by hand or hex wrench, while the knobless version requires a hex wrench. The optical mount features M4 countersunk mounting holes on the side. Includes two M4 thin-head hex screws and one each of 2.0 mm and 2.5 mm hex wrenches with purchase.
Key Features
- For mounting optical components with a diameter of 50.8 mm
- 2 precision adjusters, available with or without knobs
- Adjustable angle: Ā±4Ā°
- Adjustment precision: 0.27Ā°/rotation
- Flexure pieces and set screws securing optical components, low deformation
Application
Stainless steel mirror mounts can be used with stainless steel posts and the non-bridging clamping arm.
| Lead Time | In Stock |
CAD Drawing
Download
Click and drag to rotate. Scroll to zoom.
Product Family: 2-inch Stainless Steel Optical Mounts (12 variants)
| Product | SKU | Size | Clear Aperture | Operating Wavelength | |
|---|---|---|---|---|---|
| 2-inch Stainless Steel Optical Mounts MT-AM2S5 |
MT-AM2S5
| — | — | — | View |
| 2-inch Stainless Steel Optical Mounts MT-AM2S3 |
MT-AM2S3
| — | — | — | View |
| 2-inch Stainless Steel Optical Mounts MT-AM2S1 Current |
MT-AM2S1
| — | — | — | |
| 2-inch Stainless Steel Optical Mounts MT-AM2T3 |
MT-AM2T3
| — | — | — | View |
| 2-inch Stainless Steel Optical Mounts MT-AM2T1 |
MT-AM2T1
| — | — | — | View |
| 2-inch Stainless Steel Optical Mounts MT-AM2S6 |
MT-AM2S6
| — | — | — | View |
| 2-inch Stainless Steel Optical Mounts MT-AM2S2 |
MT-AM2S2
| — | — | — | View |
| 2-inch Stainless Steel Optical Mounts MT-AM2 |
MT-AM2
| — | — | — | View |
| 2-inch Stainless Steel Optical Mounts MT-AM2T |
MT-AM2T
| — | — | — | View |
| 2-inch Stainless Steel Optical Mounts MT-AM2S4 |
MT-AM2S4
| — | — | — | View |
| 2-inch Stainless Steel Optical Mounts MT-AM2T4 |
MT-AM2T4
| — | — | — | View |
| 2-inch Stainless Steel Optical Mounts MT-AM2C1 |
MT-AM2C1
| — | — | — | View |
