2-inch Stainless Steel Optical Mounts MT-AM2S6

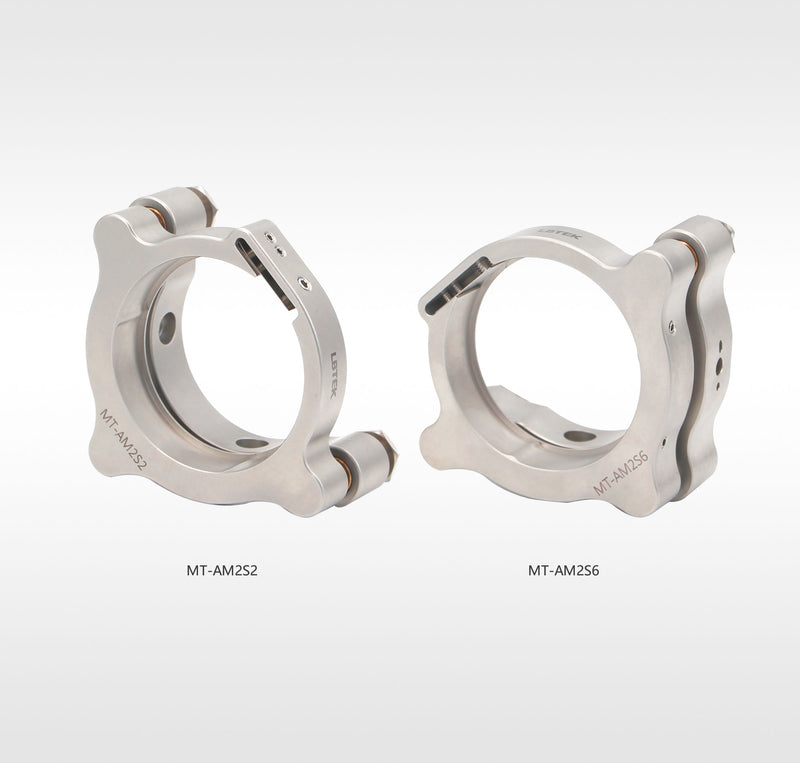

LBTEK 2-inch Stainless Steel Mirror Mount for mounting 50.8 mm diameter optical components, featuring flexure pieces and set screws to secure optics with a minimum thickness of 6 mm. The M6×0.25 precision adjuster with side holes is used for adjusting the pitch/yaw of optics, offering multiple adjustment methods as shown in the right figure: Figure 1: Direct adjustment using a 2.0 mm hex key at the end of the adjuster; Figure 2: Adjustment using the MT-SHR1 side-hole adjustment wrench; Figure 3: Mounting of the MT-HWS1 detachable knob for adjustment; Figure 4: Fine adjustment using the HWS-2 hex knob. Additionally, users can add the MT-LN1 adjuster locknut to enhance locking based on requirements. The optical mount features M4 countersunk mounting holes on the side and comes with two M4 thin-head hex screws, one each of 2.0 mm and 2.5 mm hex keys. The MT-AM2S6 includes two locknuts, while the MT-AM2S2 includes three locknuts.
