2-inch Stainless Steel Optical Mounts MT-AM2C1
MT-AM2C1$435.03
In Stock
Design Tools
Photonics Calculators
Explore 49 free online calculators for photonics design
Unit Converters
Convert between wavelength, frequency, power, and more
View all 49 calculators →
Complete Your Setup
RoHS
REACH
The 2-inch Stainless Steel Optical Mounts MT-AM2C1 from WaveQuanta is a high-performance Mounts Holders designed for precision optical alignment and component mounting. Available from stock for immediate shipment. Sourced directly from WaveQuanta, this product meets the high standards required for scientific research and precision photonics applications.
ā In Stock ā Ships Today

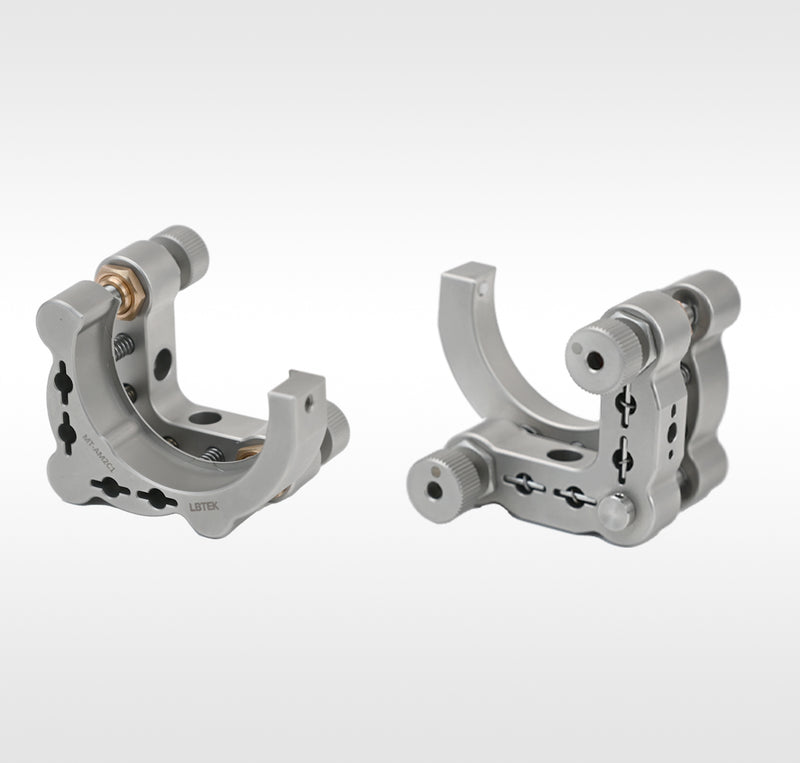

LBTEK 2-inch Clear-Edge Stainless Steel Mirror Mount with openings on the mount edges, allowing the beam to reflect from one mount to another at a small incident angle Īø; rubber-tipped screws secure the optical component, accommodating optics with a mounting diameter of 50.8 mm and a minimum thickness of 7 mm; M6Ć0.25 precision adjusters for pitch/yaw adjustment of the optical component, with an adjustment range of Ā±7Ā°; additionally, the adjusters feature knurled nuts or nuts for locking; the optical mount has M4 countersunk mounting holes on the side, and comes with 2 M4Ć12 pan head screws and a 2.0 mm hex wrench included with purchase.
Key Features
- For mounting optical components with a diameter of 50.8 mm
- 2 precision adjusters with locking nuts
- Adjustable angle Ā±7Ā°
- Adjustment precision: 0.37Ā°/turn
Application
Stainless steel mirror mounts can be used with stainless steel posts and the non-bridging clamping arm.
| Material | 316L stainless steel |
| Applicable optical element diameter | Ć50.8 mm |
| Countersunk Hole Specification/Quantity | M4/2 pcs |
| Mounting Hardware Included | 2 M4Ć12 pan head screws |
| Minimum optical element thickness | 7 mm |
| Attribute 2515 | Ā±7Ā° |
| Surface Treatment | Sandblasting |
| Optical component mounting method | Rubber-tipped set screws |
| Optical axis center height | 38.1 mm |
| Adjustment Resolution | 0.37Ā°/rotation |
| Hex Wrench | 2.0 mm, 3.0 mm, one each |
| Adjuster specifications/quantity | M6Ć0.25 Precision Adjuster/2 pcs |
CAD Drawing
Download
Click and drag to rotate. Scroll to zoom.
Product Family: 2-inch Stainless Steel Optical Mounts (12 variants)
