2-inch Stainless Steel Optical Mounts MT-AM2S5
MT-AM2S5$1,014.95
In Stock
Design Tools
Photonics Calculators
Explore 49 free online calculators for photonics design
Unit Converters
Convert between wavelength, frequency, power, and more
View all 49 calculators →
Complete Your Setup
RoHS
REACH
The 2-inch Stainless Steel Optical Mounts MT-AM2S5 from WaveQuanta is a high-performance Mounts Holders designed for precision optical alignment and component mounting. Available from stock for immediate shipment. Sourced directly from WaveQuanta, this product meets the high standards required for scientific research and precision photonics applications.
ā In Stock ā Ships Today

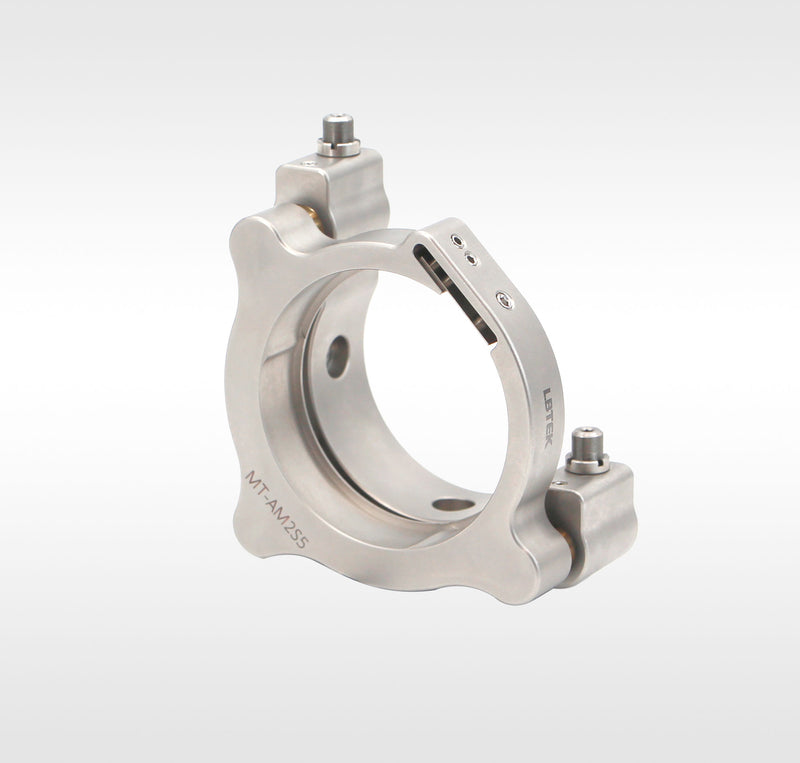

LBTEK 2-inch Stainless Steel Mirror Mounts, with 2 lock rings and vertical drive adjusters, designed for mounting optical components with a diameter of 50.8 mm, suitable for situations where there is no space behind the mount to use horizontal adjusters. The optical component is secured using flexure pieces and set screws. The two M6Ć0.25 precision adjusters with lock rings (knobless) provide an angular adjustment range of Ā±4Ā° for the mount. The knobless adjusters are adjusted using a hex key. Additionally, the optical adjustment mount features M4 countersunk mounting holes on the side. The purchase includes 2 M4 thin-head hex socket screws and one each of 2.0 mm and 2.5 mm hex keys.
Key Features
- For mounting optical components with a diameter of 50.8 mm
- 2 precision adjusters with lock rings (knobless)
- Adjustable angle: Ā±4Ā°
- Adjustment precision: 0.27Ā°/rev
- Optical component secured by flexure pieces and set screws
Application
Stainless steel mirror mount can be used with stainless steel posts and the non-bridging clamping arm.
| Material | 316L stainless steel |
| Surface Treatment | Sandblasting |
| Applicable optical element diameter | Ć50.8 mm |
| Optical component mounting method | Flexure pieces |
| Minimum applicable thickness for optical components | 4 mm |
| Countersunk Hole Specification/Quantity | M4/2 pcs |
| Optical axis center height | 35.6 mm |
| Mounting Hardware Included | 2 M4Ć14 hex socket head cap screws |
| Adjustment Resolution | 0.27Ā°/rotation |
| Hex Wrench | 2.0\2.5 mm, one each |
| Adjustable pitch/yaw angle range | Ā±4Ā° |
| Adjuster specifications/quantity | Locking ring without knob M6Ć0.25 precision adjuster/2 pcs |
