30 mm coaxial cube accessory — Model CM-3B1
✔ In Stock — Ships Today

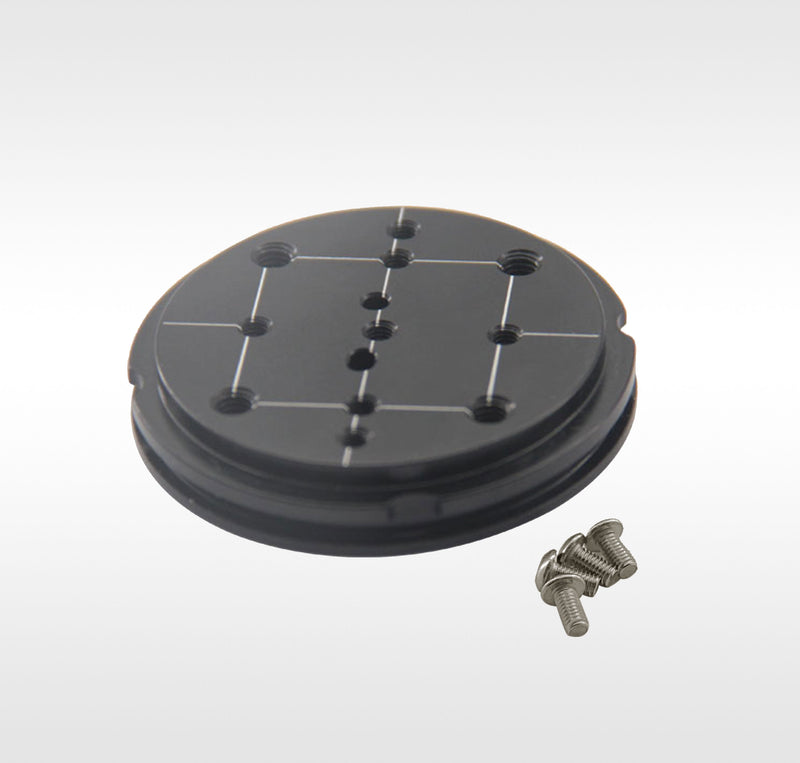

The LBTEK Rotatable Base Plate CM-3B1 can be installed on the top or bottom of the coaxial cube CM-3E/CM-3T, allowing free rotation within the cube. It can be locked in the desired position using the included M3 screws. The platform surface features corresponding M3 and M4 threaded holes for mounting clamps or other installation brackets. Four M3×4 round head hex screws are included as a complimentary accessory with purchase.
Key Features
- The table surface has four M4 threaded holes and seven M3 threaded holes
- With two locating pin holes for precise positioning with the connected part
- The bottom center has an M4 through threaded hole for support
Application
The rotatable base CM-3B1 can be used in conjunction with the coaxial cube CM-3T.
