30 mm coaxial cube accessory — Model CM-3TP
✔ In Stock — Ships Today

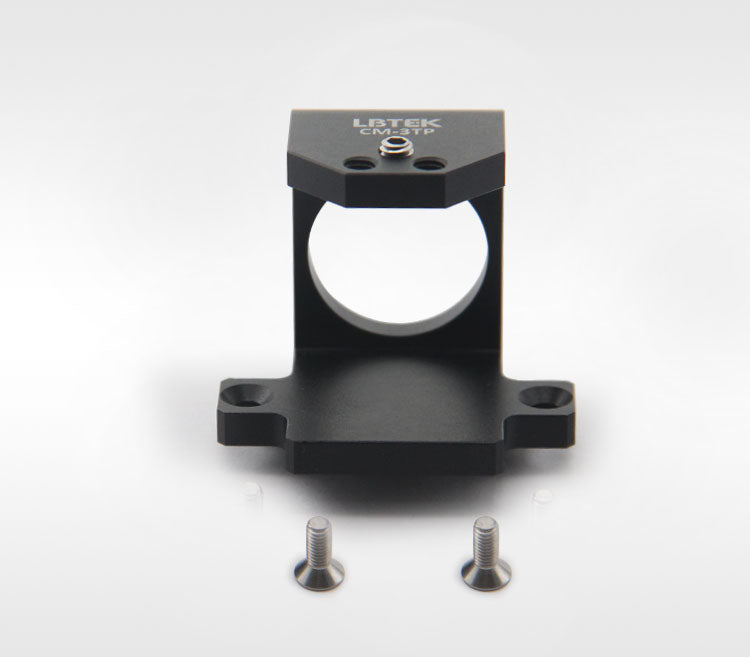

The LBTEK Beam Splitter Cube Mount CM-3TP is specifically designed for prisms and beam splitter cubes. It can be precisely fixed on platforms such as the rotatable base plate CM-3B1 with the bottom fixing pins. Two M3×6 countersunk hex screws are included as a free gift with purchase.
Key Features
- Installed with 25.4 mm specification beam splitter cube
- Optical components fixed with adhesive-tipped set screws
- Precisely positioning on rotatable base plate CM-3B1 via bottom locating pins
Application
The beam-splitting cube clamp mount can be used in conjunction with the CM-3B1 rotatable base plate to accommodate the coaxial cube CM-3T.
No specifications available for this product.
CAD Drawing
Download
Click and drag to rotate. Scroll to zoom.
