30 mm coaxial cube accessory — Model CM-3TC
✔ In Stock — Ships Today

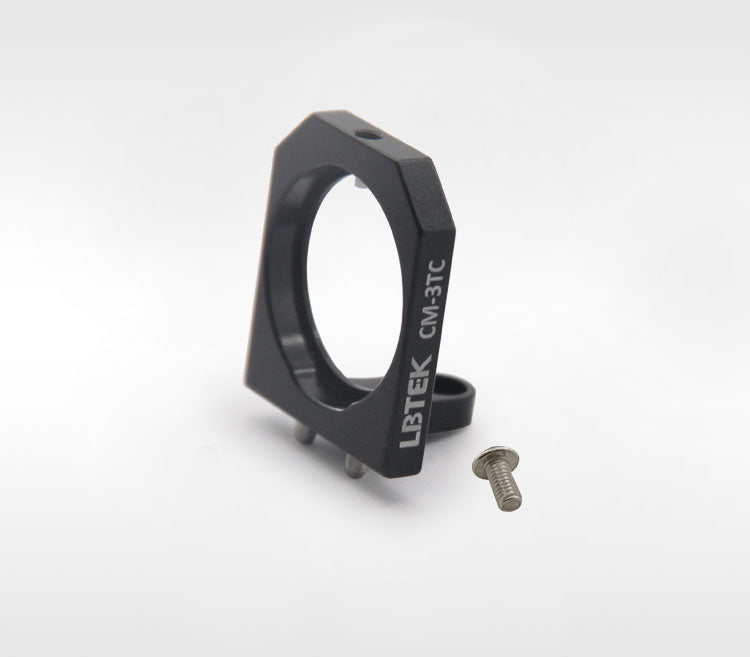

The LBTEK Wafer Holder CM-3TC is specifically designed for circular optical components. When used with the bottom fixing pins, it can be precisely secured onto platforms such as the rotatable base plate CM-3B1. One M3×6 round head hexagon screw is included as a complimentary gift with purchase.
Key Features
- Mounting optical elements with 25.4 mm diameter and minimum 3 mm thickness
- Securing optical elements with set screws in rubber tips
- Precise positioning on rotatable base plate CM-3B1 via bottom pins
Application
The round clamping base can be used in conjunction with the CM-3B1 rotatable base plate to match the coaxial cube CM-3T.
No specifications available for this product.
CAD Drawing
Download
Click and drag to rotate. Scroll to zoom.
Product Family: 30 mm coaxial cube accessory (7 variants)
| Product | SKU | Size | Clear Aperture | Operating Wavelength | |
|---|---|---|---|---|---|
| 30 mm coaxial cube accessory CM-3TP |
CM-3TP
| — | — | — | View |
| 30 mm coaxial cube accessory CM-3TC Current |
CM-3TC
| — | — | — | |
| 30 mm coaxial cube accessory CM-3TR |
CM-3TR
| — | — | — | View |
| 30 mm coaxial cube accessory CM-3B1 |
CM-3B1
| — | — | — | View |
| 30 mm coaxial cube accessory CMC |
CMC
| — | — | — | View |
| 30 mm coaxial cube accessory CMC1 |
CMC1
| — | — | — | View |
| 30 mm coaxial cube accessory CM-3B2 |
CM-3B2
| — | — | — | View |
