30 mm coaxial cube accessory — Model CM-3TR
✔ In Stock — Ships Today

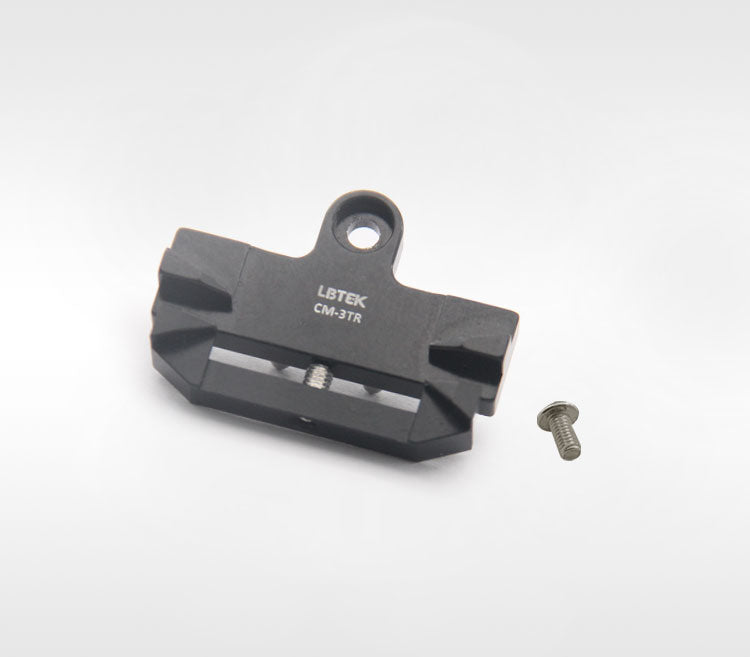

The LBTEK Square Clamping Holder CM-3TR is specifically designed for rectangular optical components. Its dual-sided spring-loaded clamping mechanism effectively limits the clamping force to prevent scratching of optical elements. When used with the bottom pin, the holder can be precisely fixed on platforms such as the rotatable base plate CM-3B1. Includes one free M3×6 pan head hex screw with purchase.
Key Features
- Suitable for rectangular optical components with lengths ranging from 26 mm to 43 mm
- Maximum thickness of applicable optical components: 3 mm
- Optical components are fixed by set screw clamping method
- Precise positioning via pins on the rotatable base plate CM-3B1
- Maximum height of optical component installation: up to 25 mm in coaxial cube CM-3E, up to 32 mm in coaxial cube CM-3T
Application
Square Clamping Holder CM-3TR is used in conjunction with the Rotatable Base Plate CM-3B1 and the Coaxial Cube CM-3T.
