30 mm coaxial cube accessory — Model CMC1
✔ In Stock — Ships Today

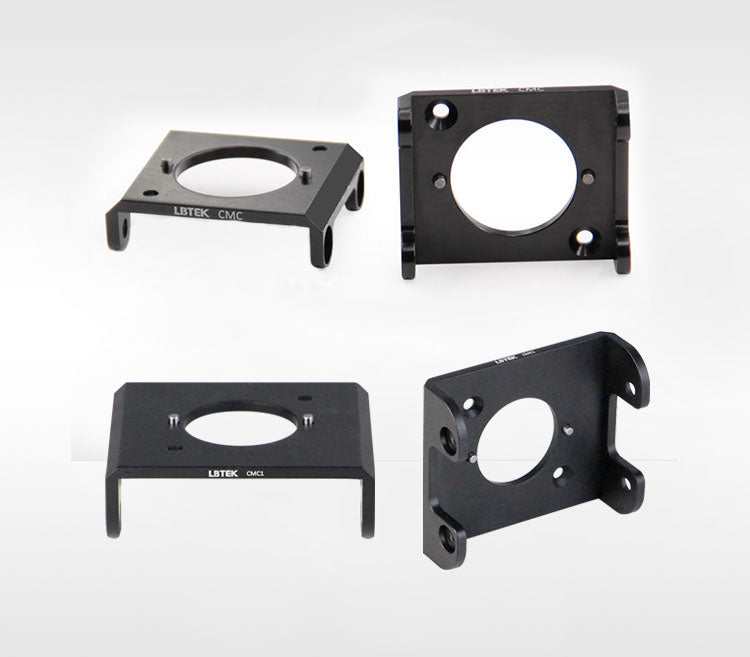

LBTEK 30 mm Coaxial Cube Connector is compatible with 30 mm coaxial cubes and features a through-hole of Ø26.4 mm at the center, designed to connect two coaxial cubes. Two positioning pins of Ø2.37 mm * 6.5 mm ensure alignment between the center of the round hole and the SM1 threaded hole of the coaxial cube. The CMC connector can clamp cubes with a width of 42 mm, while the CMC1 connector can clamp cubes with a width of 55 mm. The purchase of coaxial cube connectors includes 2 countersunk hex key screws M3*6, 4 round head hex key screws M3*5, and 4 flat washers suitable for M3 screws.
Key Features
- Compatible with 30 mm coaxial cubes
- Central through-hole of Ø26.4 mm
- Able to clamp 42mm and 55mm width cubes
Application
CMC can connect two coaxial cubes
No specifications available for this product.
CAD Drawing
Download
Click and drag to rotate. Scroll to zoom.
Product Family: 30 mm coaxial cube accessory (7 variants)
| Product | SKU | Size | Clear Aperture | Operating Wavelength | |
|---|---|---|---|---|---|
| 30 mm coaxial cube accessory CM-3TP |
CM-3TP
| — | — | — | View |
| 30 mm coaxial cube accessory CM-3TC |
CM-3TC
| — | — | — | View |
| 30 mm coaxial cube accessory CM-3TR |
CM-3TR
| — | — | — | View |
| 30 mm coaxial cube accessory CM-3B1 |
CM-3B1
| — | — | — | View |
| 30 mm coaxial cube accessory CMC |
CMC
| — | — | — | View |
| 30 mm coaxial cube accessory CMC1 Current |
CMC1
| — | — | — | |
| 30 mm coaxial cube accessory CM-3B2 |
CM-3B2
| — | — | — | View |
