30mm coaxial filter wheel FWM6C
FWM6C$186.12
In Stock
Design Tools
Photonics Calculators
Explore 49 free online calculators for photonics design
Unit Converters
Convert between wavelength, frequency, power, and more
View all 49 calculators →
Complete Your Setup
RoHS
REACH

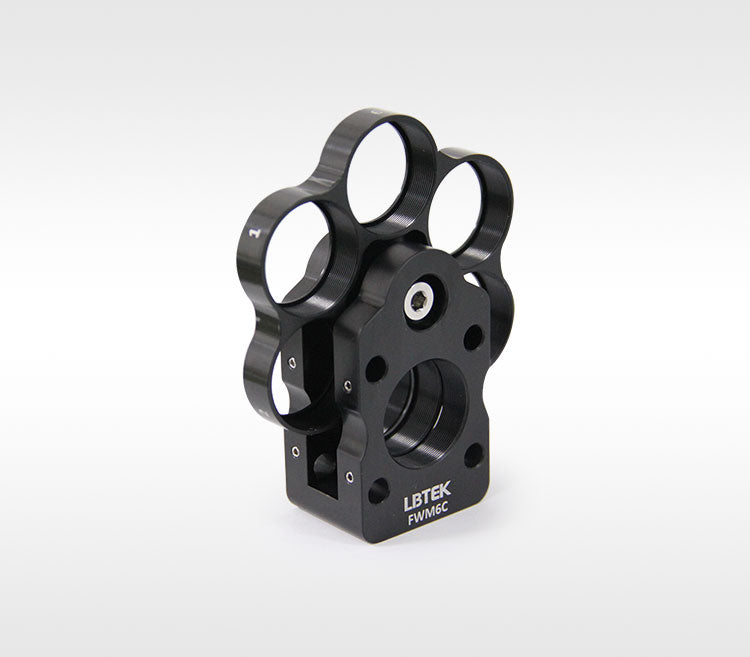

30mm coaxial filter wheel — Model FWM6C
✔ In Stock — Ships Today
LBTEK 30 mm Coaxial Filter Wheel for mounting 25.4 mm diameter optical components, includes 6 SM1R retaining rings. LBTEK 30 mm Coaxial Filter Wheel for mounting 25.4 mm diameter optical components, includes 6 SM1R retaining rings. The wheel can rotate freely around the rotation axis, with precise 6-point positioning via the inclined groove and steel ball on the base, allowing the filter center to align with the coaxial system. The minimum rotation angle per turn is 60°, with 360° rotation capability.
Key Features
- Applicable optical element diameter: Ø25.4 mm
- Bottom mounting threaded hole types: M4 and M6
- Compatible with 30 mm coaxial systems
Application
Ø 25.4 mm optical element mounted on a 30 mm coaxial filter wheel
| Main material | 6061-T6 aluminum alloy |
| Surface Treatment | Black anodized |
| Applicable optical element diameter | Ø25.4 mm |
| Attribute 528 | SM1 internal thread |
| Attribute 529 | 6 |
| Maximum applicable thickness of optical components | 6.4 mm |
| Bottom mounting threaded hole specification | M4 and M6 |
| Inner Diameter (ID) | SM1R/6 pcs |
| Attribute 531 | Yes |
Product Family: 30mm coaxial filter wheel (1 variants)
| Product | SKU | Size | Clear Aperture | Operating Wavelength | |
|---|---|---|---|---|---|
| 30mm coaxial filter wheel FWM6C Current |
