30mm Coaxial System Translation Platform and Accessories — Model LSC-13LC
✔ In Stock — Ships Today

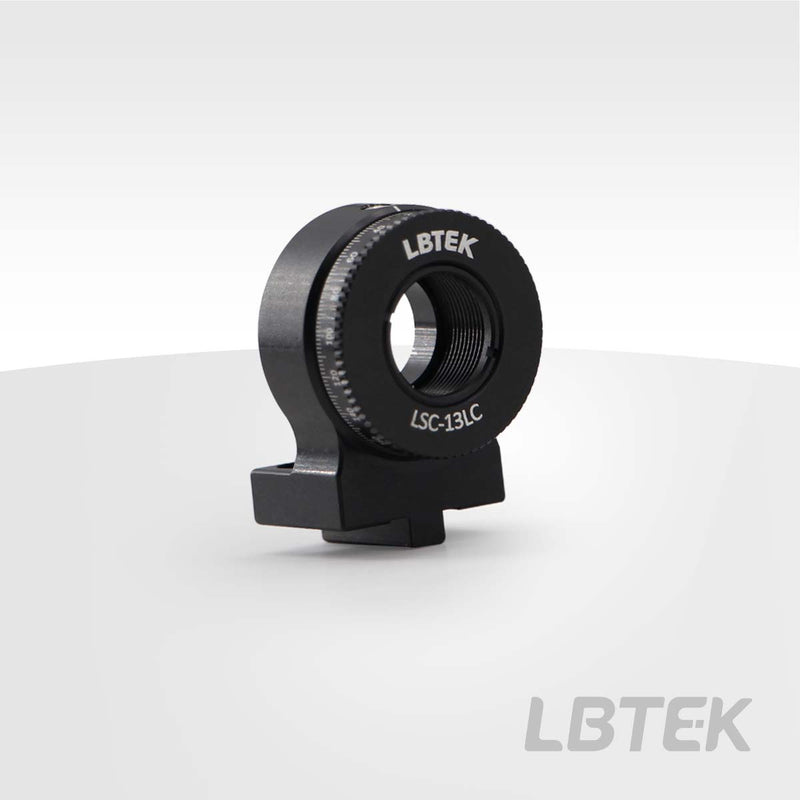

The LSC-13LC rotary adjustment mount provided by LBTEK is suitable for mounting Ø12.7 mm anisotropic optical elements, featuring 360° rotation with a scale accuracy of 2° and numerical markings every 20°. The top is equipped with a locking screw to secure the rotating body. The LSC-13LC rotary adjustment mount is also compatible with the LSC-13L coaxial translation stage. Each rotary adjustment mount comes with 2 M3 pan head screws for fixing the mount.
Key Features
- Comes with 360° rotation, minimum precision 2°
- Maximum installation thickness 7.2 mm optical component
- Clear aperture: 11.4 mm
- Compatible with LSC-13L coaxial translation platform
- Centered with SM05 threaded mounting hole, includes one SM05R retaining ring
Application
Compatible with LSC-13L coaxial translation platform
| Clear Aperture | 11.4 mm |
Click and drag to rotate. Scroll to zoom.
Product Family: 30mm Coaxial System Translation Platform and Accessories (4 variants)
| Product | SKU | Size | Clear Aperture | Operating Wavelength | |
|---|---|---|---|---|---|
| 30mm Coaxial System Translation Platform and Accessories LSC-13LC Current |
LSC-13LC
| — | — | — | |
| 30mm Coaxial System Translation Platform and Accessories LSC-13LB |
LSC-13LB
| — | — | — | View |
| 30mm Coaxial System Translation Platform and Accessories LSC-13LA |
LSC-13LA
| — | — | — | View |
| 30mm Coaxial System Translation Platform and Accessories LSC-13L |
LSC-13L
| — | — | — | View |
