30mm Coaxial System Translation Platform and Accessories — Model LSC-13LB
✔ In Stock — Ships Today

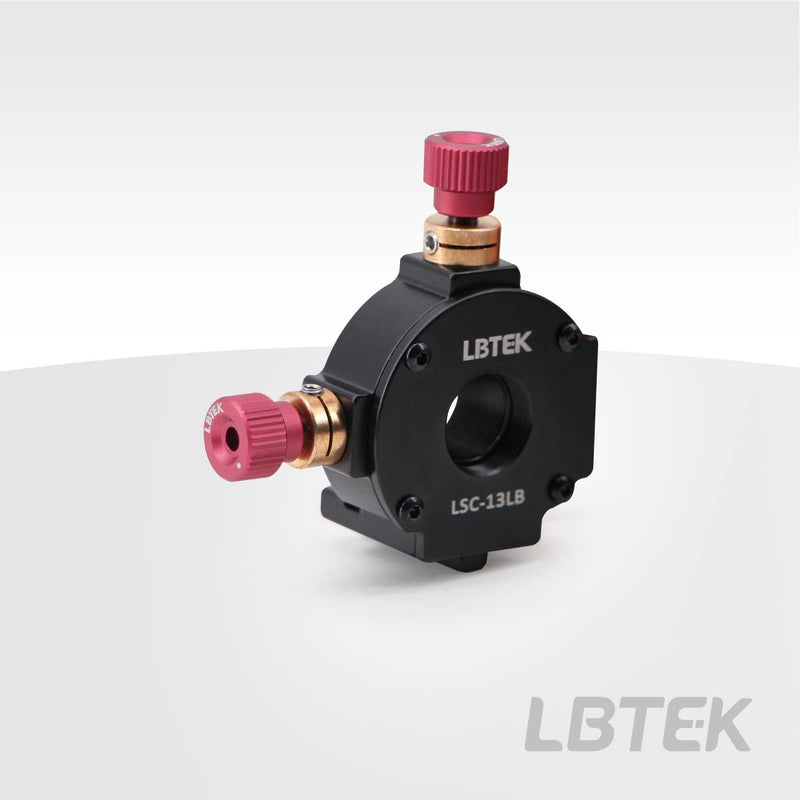

The XY adjustment mount LSC-13 provided by LBTEK is suitable for mounting Ø12.7 mm optical components. It features 2 adjusters that allow fine-tuning of the optical component position in both X and Y directions, with a travel range of ±1 mm. The SM05 thread can accommodate optical components up to Ø12.7 mm with a maximum thickness of 10 mm (including 1 SM05R retaining ring for securing the optical component) and can connect to SM05 sleeves or adapters. The threaded pair comes with an M3 locking screw, which can be tightened using a 1.5 mm hex wrench.
Key Features
- Two adjusters, X and Y direction displacement ±1 mm
- Adjustment precision of 0.25 mm/revolution in X and Y directions
- Thread paired with locking function
- Compatible with LSC-13L coaxial translation stage
- Centered with SM05 threaded mounting hole, includes one SM05R retaining ring
Application
Compatible with LSC-13L coaxial translation platform
| Clear Aperture | 11.4 mm |
CAD Drawing
Download
Click and drag to rotate. Scroll to zoom.
Product Family: 30mm Coaxial System Translation Platform and Accessories (4 variants)
