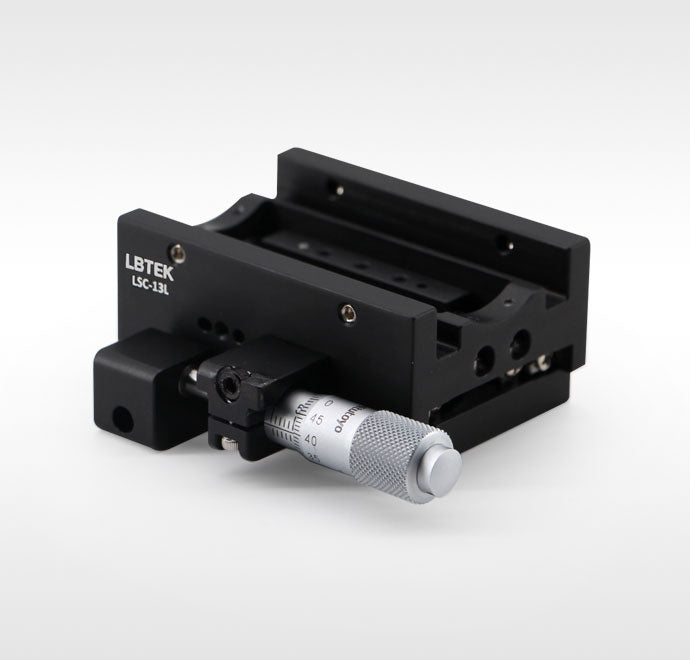

30mm Coaxial System Translation Platform and Accessories LSC-13L

The LSC-13L coaxial translation platform provided by LBTEK is designed for 30 mm coaxial systems. It can be fixed in the coaxial system using set screws, enabling the displacement of optical components along the optical axis within the 30 mm coaxial system. The stage features left-side drive with a micrometer head driver, offering a travel range of ±6.5 mm and a minimum micrometer graduation of 10 μm. A central positioning groove is included for aligning optical component mounts. The package includes: - One LSC-13LA optical component mount - One 2 mm hex key - One 2.5 mm hex key Additional optical component mounts are available for selection as needed. Besides the LSC-13LA, we also offer: - XY adjustment mount: LSC-13LB and Rotation adjustment mount: LSC-13LC. These can be purchased separately.
