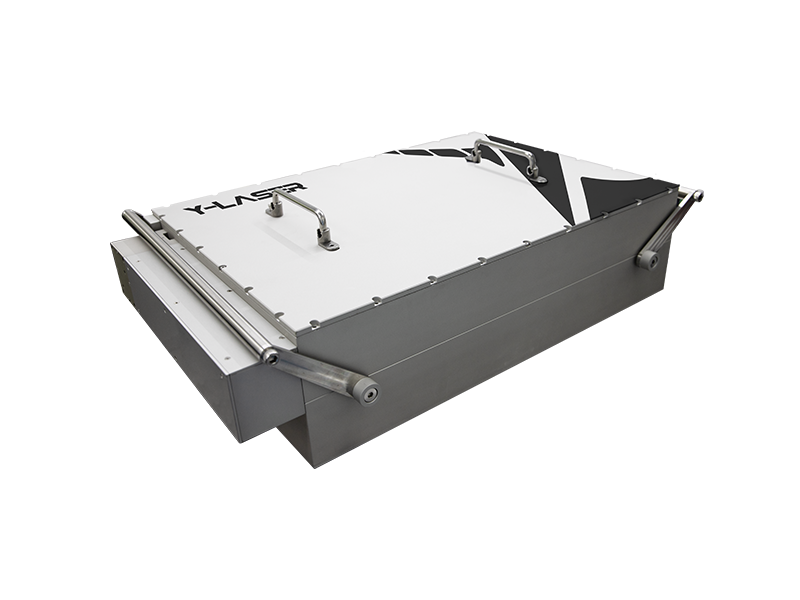

AURORA-3P Three-Photon Imaging Source

YL-AURORA-3P
Contact for pricing
In Stock
Contact Sales

Design Tools

Time-Bandwidth Product Check if your pulse is transform-limited Pulse Stretching & Compression Calculate GVD, TOD, and pulse broadening Wavelength \u2194 Wavenumber Convert between wavelength, frequency, and energy
View all 49 calculators →

Complete Your Setup

Lasers & Sources Mirrors Nonlinear Crystals Optomechanics
RoHS REACH

AURORA-3P is a broadband tunable ultrafast laser source specifically developed for three-photon (3P) imaging research. With a stable optical and mechanical design, AURORA-3P offers outstanding performance parameters.

Its narrow pulse width and high repetition rate perfectly meet the laser peak power requirements for the three-photon excitation process. The system provides a wide wavelength tuning range, including the 1300nm and 1700nm wavelengths required for three-photon imaging, making it an ideal light source for ultrafast three-photon imaging, enabling higher-quality fluorescence labeling signals.

Key Features

  • Typical output wavelength
  • Pulse duration(FWHM)
  • Repetition rate1)
  • Pulse energy stability
  • Pulse power stability

Applications

  • Carrier-Envelope Phase Stabilization
  • Cars And Srs Microscopy
Beam QualityM² < 1.3
Beam Diameter2–4 mm
Pulse Energy Stability< 1% RMS @ 24h
Tuning Range1250 – 1800 nm
Typical Output Wavelength1300 nm and 1700 nm (switchable output)
Pulse Duration (FWHM)< 60 fs @ 1300 nm / < 70 fs @ 1700 nm
Repetition RateSingle pulse – 1 MHz
Dispersion Compensation−4000 ~ +9000 fs² @ 1300 nm / −12000 ~ +2900 fs² @ 1700 nm
Output Power1000 mW @ 1 MHz (1300 nm) / 600 mW @ 1 MHz (1700 nm)
Beam Divergence Angle< 1 mrad
Beam Ellipticity> 0.8
Pulse Power Stability< 1% RMS @ 24h
Dimensions (L×W×H)812 × 545 × 240 mm
Weight83 kg
Additional Weight24 kg (Water-cooled machine)
Power Supply500W
ChillerWater cooler 1: 1260W; Water cooler 2: 1020W; Total: 2780W
Notes(1) Low repetition rate and high pulse energy options available. (2) Continuous dispersion control; −3000 fs² compensates for microscope with +3000 fs². (3) Pump laser: 50W / 50µJ / 1030nm, supports higher power customization. (4) 1/e², measured after compression output. (5) Optional extension for 650–900 nm output.
Specification Sheet PDF — Download
AURORA-3P Three-Photon Imaging Source — Dimensional Drawing

AURORA-3P Three-Photon Imaging Source — Dimensional Drawing (click to enlarge)

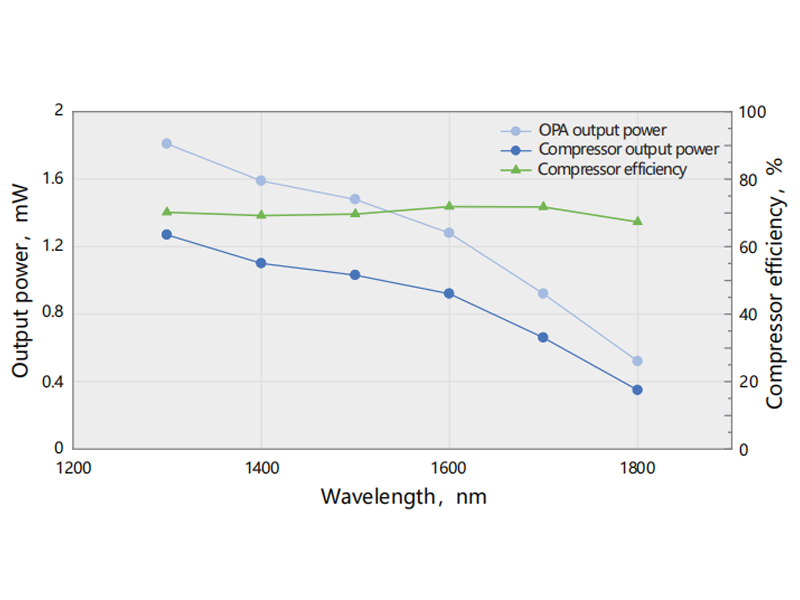

Three-photon system + Compressor output power comparison — Graph
Three-photon system + Compressor output power comparison — Graph

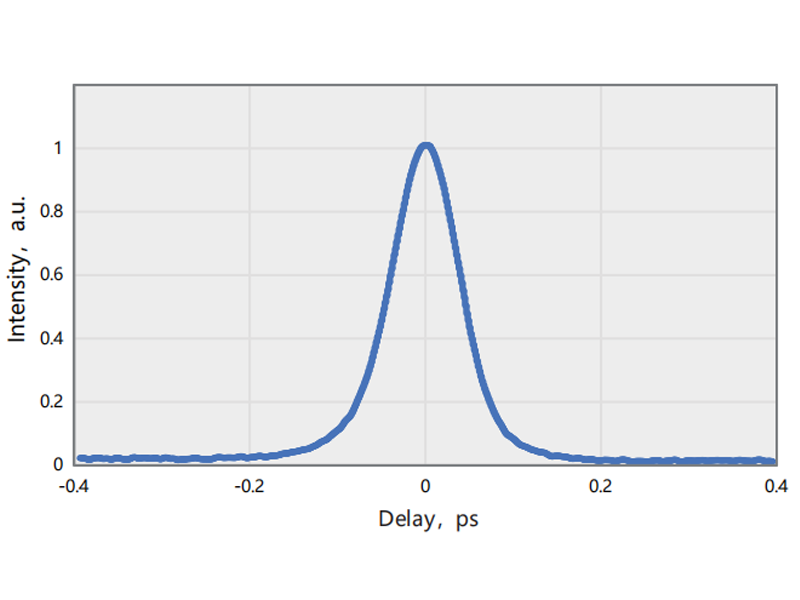

Typical pulse duration（1300nm@55.4fs） — Graph
Typical pulse duration（1300nm@55.4fs） — Graph

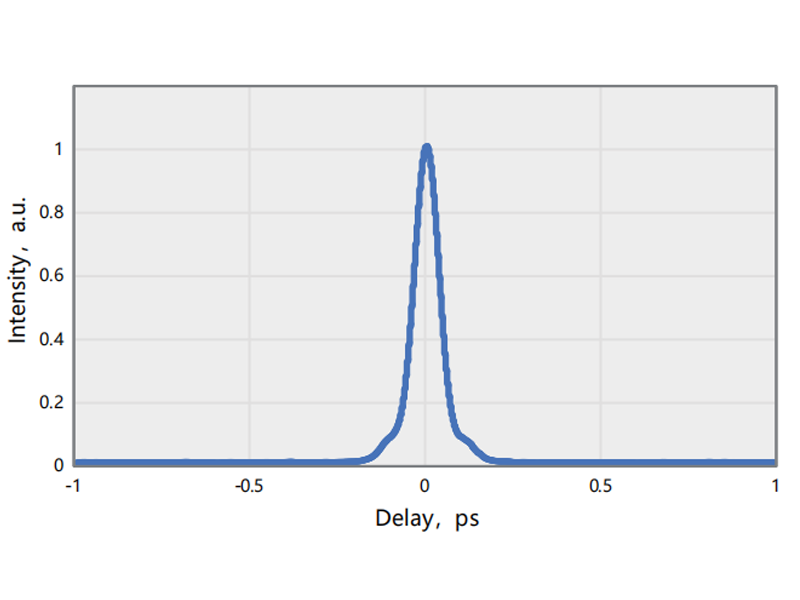

Typical pulse duration（1300nm@55.4fs） — Graph
Typical pulse duration（1300nm@55.4fs） — Graph

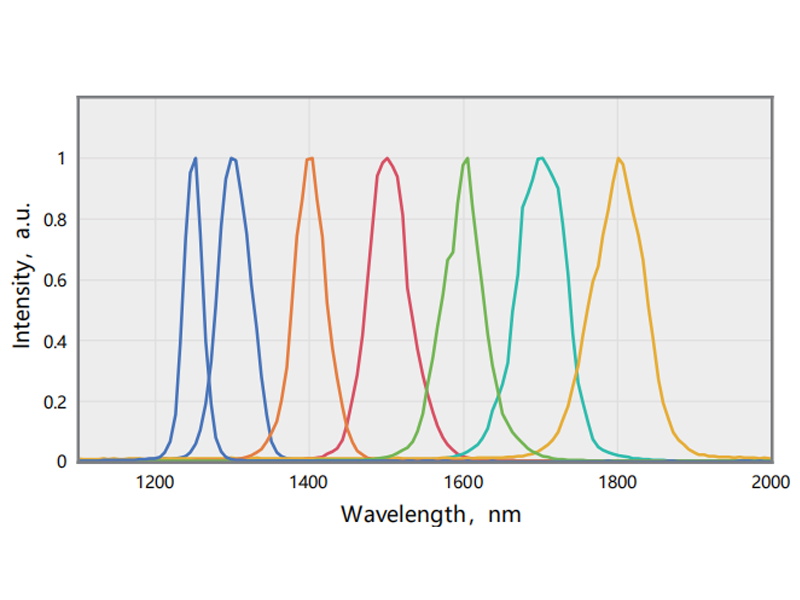

Typical spectrum(1250-1700nm) — Graph
Typical spectrum(1250-1700nm) — Graph
