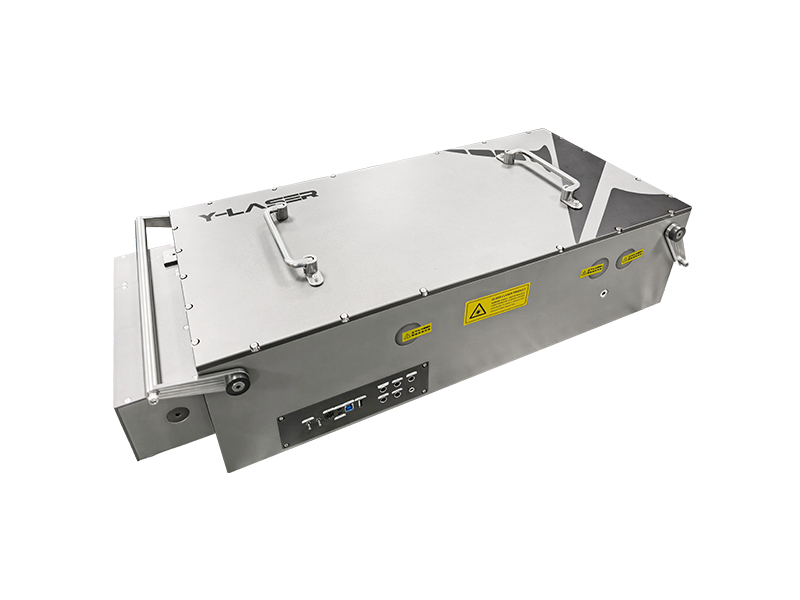

AURORA-H Hybrid OPA
Yi-Laser

AURORA-H Hybrid OPA - High Power

YL-AURORA-H-HP
Contact for pricing
In Stock
Contact Sales

Design Tools

Time-Bandwidth Product Check if your pulse is transform-limited Pulse Stretching & Compression Calculate GVD, TOD, and pulse broadening Wavelength \u2194 Wavenumber Convert between wavelength, frequency, and energy
View all 49 calculators →

Complete Your Setup

Lasers & Sources Mirrors Nonlinear Crystals Optomechanics
RoHS REACH

AURORA-H is a hybrid optical parametric amplifier (OPA) that combines the short pulse duration generated by the non-collinear optical parametric amplifier (NOPA) with the wide tunability offered by the collinear OPA. This provides it with unique performance advantages, allowing its signal light to be tuned within the range of 650-900nm, while the idler light can be tuned within 1200-2500nm.

Additionally, it can perform dispersion compensation to compress pulses to a duration of 50-100 fs. AURORA-H is compatible with various market-standard fiber and solid Yb ultrafast lasers and supports one-click precise tuning, allowing customers to easily obtain the desired central wavelength output without complex manual adjustments. This not only greatly facilitates customers but also improves operational efficiency.

Key Features

  • Pulse duration <100 fs
  • Maximum pump power
  • Pre-compression pulse width
  • Pulse duration after compressor
  • Long-term power stability
  • Pulse-to-pulse energy stability

Applications

  • Carrier-Envelope Phase Stabilization
  • Cars And Srs Microscopy
Long-term Power Stability< 2% @ 800 nm
Tuning Range650 – 900 nm (Signal) 1200 – 2500 nm (Idler)
Maximum Pump Power80W
Pump Pulse Energy10 - 200 µJ
Peak Conversion EfficiencySignal > 7%, Idler > 3.5%
Spectral Bandwidth200 – 750 cm⁻¹ @ 650 – 900 nm
Pulse-to-Pulse Energy Stability< 2% @ 800 nm
SHG Conversion Efficiency (515 nm)> 35%
Pre-compression Pulse Width120 - 250 fs
Pulse Duration After Compressor< 55 fs @ 800–900 nm / < 70 fs @ 650–800 nm / < 100 fs @ 1200–2000 nm
Compressor Transmission> 65% @ 650–900 nm / > 80% @ 1200–2000 nm
Dimensions (L×W×H)800 × 330 × 254 mm
Weight57 kg
Additional Weight32 kg (Compressor) + 24 kg (Water-cooled machine) + 17 kg (frequency doubling)
Optional Compressor324 × 165 × 214 mm (ICMP) / 650 × 135 × 250 mm (SCMP)
Power SupplyAC 220V/10A; 24V DC power supply, motor drive, total power ≤ 150W
ChillerCWUP-10AI; operating voltage 220V; operating current 0.6-5.6A; rated power 1.02 kW; cooling capacity 0.75 kW
Specification Sheet PDF — Download
AURORA-H Hybrid OPA - High Power — Dimensional Drawing

AURORA-H Hybrid OPA - High Power — Dimensional Drawing (click to enlarge)

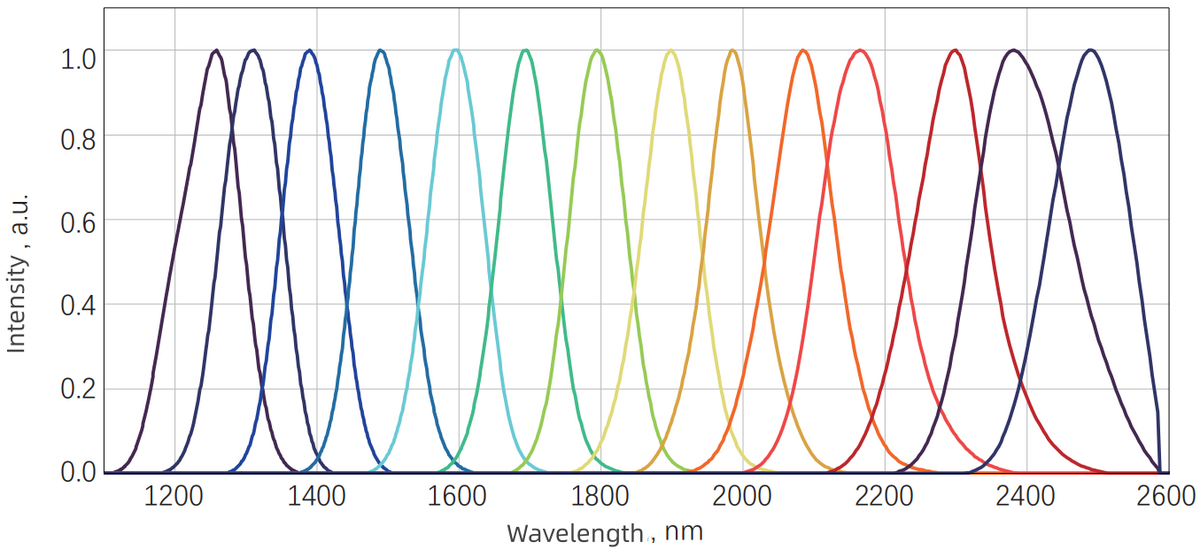

Idler tuning spectrum — Graph
Idler tuning spectrum — Graph

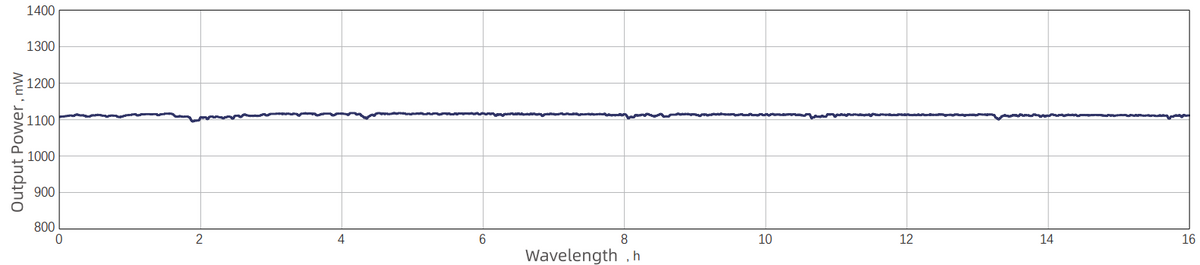

Power stability — Graph
Power stability — Graph

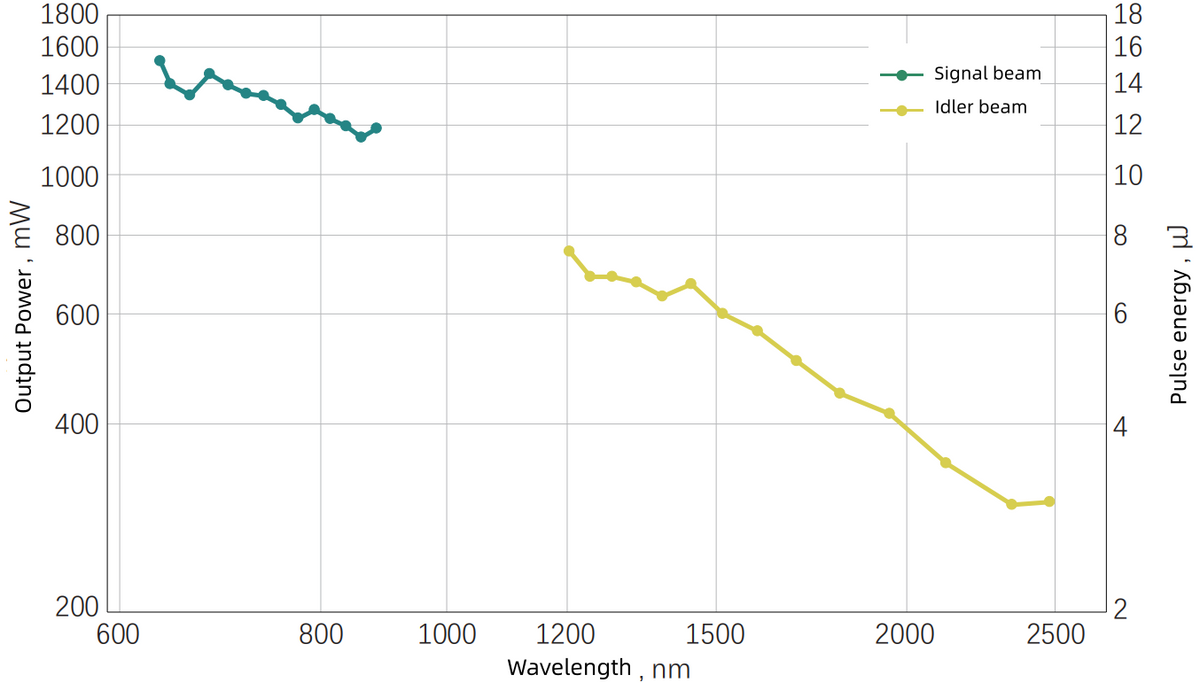

Power tuning curve
Power tuning curve

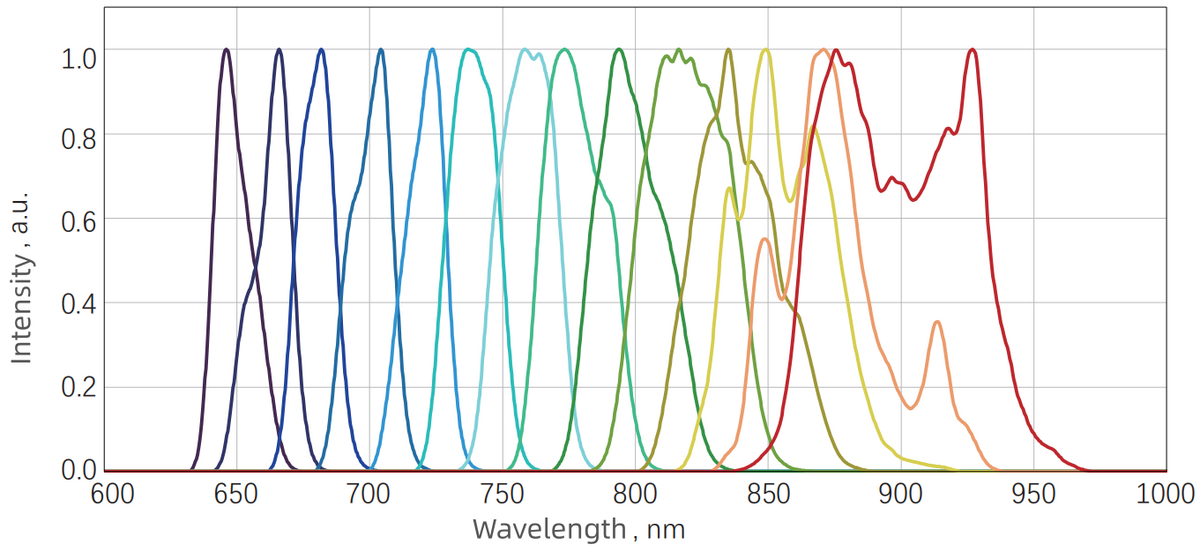

Signal tuning spectrum — Graph
Signal tuning spectrum — Graph

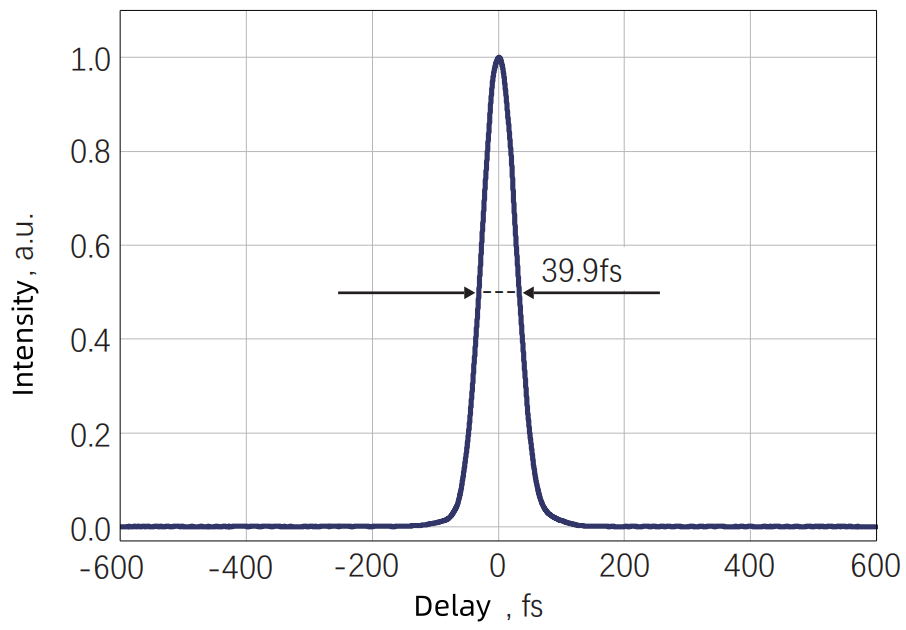

Typical output pulse width @ 800 nm — Graph
Typical output pulse width @ 800 nm — Graph
Typical output pulse width @ 800 nm — Graph
Typical output pulse width @ 800 nm — Graph

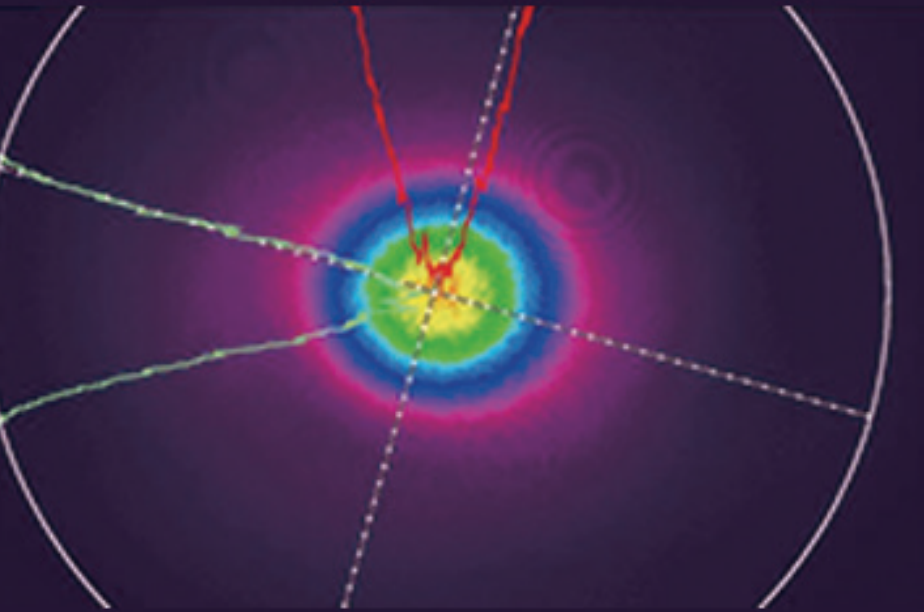

Typical output spot — Graph
Typical output spot — Graph
