Yi-Laser

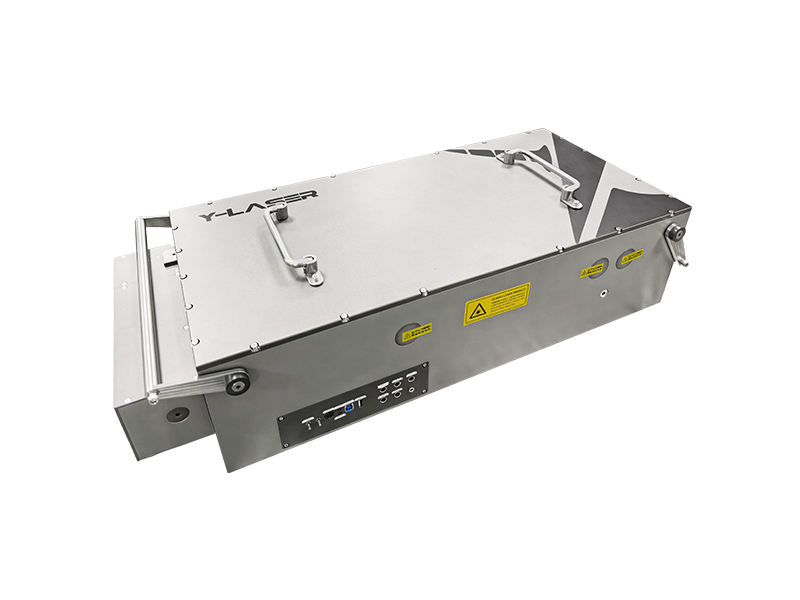

AURORA OPA - High Energy
YL-AURORA-HEContact for pricing
In Stock
Contact Sales
Design Tools
Time-Bandwidth Product
Check if your pulse is transform-limited
Pulse Stretching & Compression
Calculate GVD, TOD, and pulse broadening
Wavelength \u2194 Wavenumber
Convert between wavelength, frequency, and energy
View all 49 calculators →
Complete Your Setup
RoHS
REACH
The AURORA femtosecond optical parametric amplifier is based on a stable optical and mechanical design, enabling flexible and tunable femtosecond laser pulse output. The wavelength range covers from ultraviolet (as short as 210 nm) to mid infrared (up to 16μm).
The AURORA femtosecond optical parametric amplifier is compatible with market-standard fiber and solid-state Yb ultrafast lasers, with a pump energy reception range of 10μJ to 2mJ and a pulse width compatibility range from 100fs to 1.5ps. Customers can achieve precise tuning of the desired center wavelength with a single click, without the need for complex manual adjustments. Comprehensive custom solutions can be provided according to customer requirements.
Key Features
- Compatible with up to 2mJ pump energy
- High output stability
- CEP stability option
- Maximum pump power
- Pulse duration
- Long-term power stability
- Pulse-to-pulse energy stability
Applications
- Carrier-Envelope Phase Stabilization
- Cars And Srs Microscopy
| Pulse Duration | 120 - 400 fs |
| Polarization | Linear polarization |
| Long-term Power Stability | < 2% RMS @ 750 nm |
| Tuning Range | 630 – 1036 nm (Signal) 1036 – 2600 nm (Idler) |
| Maximum Pump Power | 80W |
| Pump Pulse Energy | 200 - 2000 µJ |
| Peak Conversion Efficiency | > 9% Signal / > 4% Idler (200-2000 µJ) |
| Spectral Bandwidth | 60 - 220 cm⁻¹ |
| Pulse-to-Pulse Energy Stability | < 2% RMS @ 750 nm |
| Pump Pulse Energy | 200-2000 µJ |
| SHG (315–630 nm) | ＞ 2% @ 350 nm |
| THG (210–315 nm) | ＞ 0.4% @ 250 nm |
| DFG1 (2200–4200 nm) | ＞ 3% @ 3000 nm |
| DFG2 (4000–16000 nm) | ＞ 0.2% @ 10000 nm |
| Additional Weight | 24 kg (chiller) + 17 kg (frequency doubling) |
| Power Supply | AC 220V / 10A; 24V DC power supply for motor drive, total power ≤ 150W |
| Chiller | CWUP-10AI; operating voltage 220V; operating current 0.6–5.6A; rated power 1.02 kW; cooling capacity 0.75 kW |
| Dimensions (L×W×H) | 800 × 330 × 254 mm |
| Weight | 57 kg |
AURORA OPA - High Energy — Dimensional Drawing (click to enlarge)

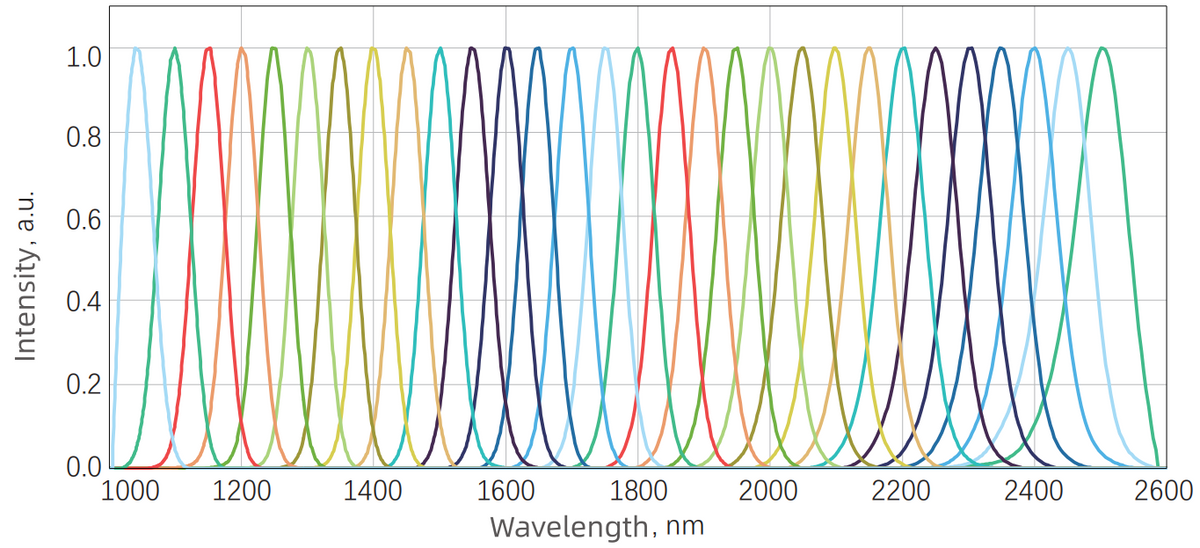

Idler tuning spectrum — Graph

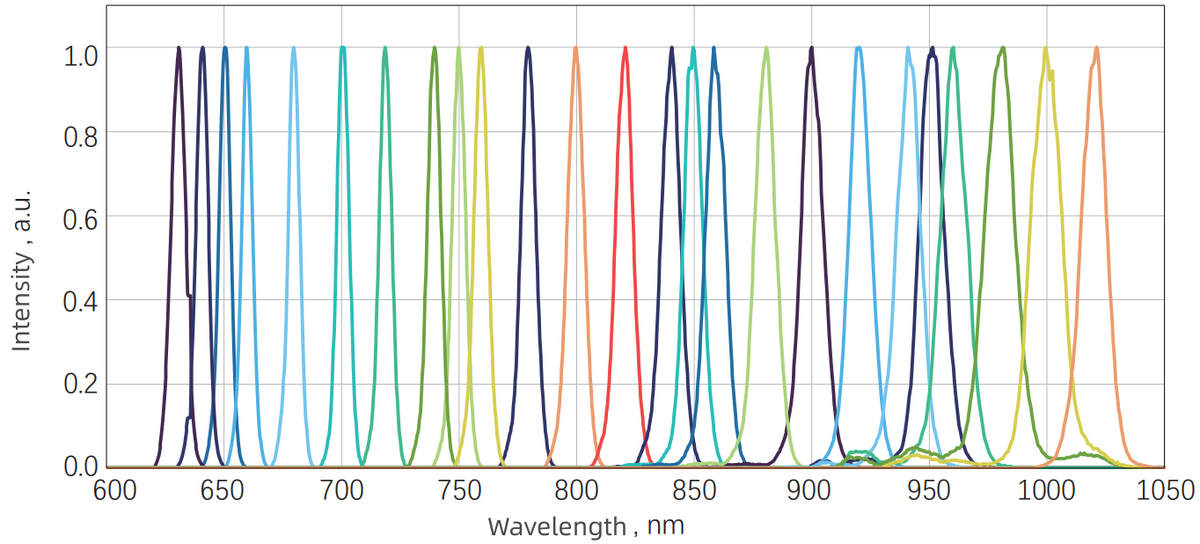

Signal tuning spectrum — Graph

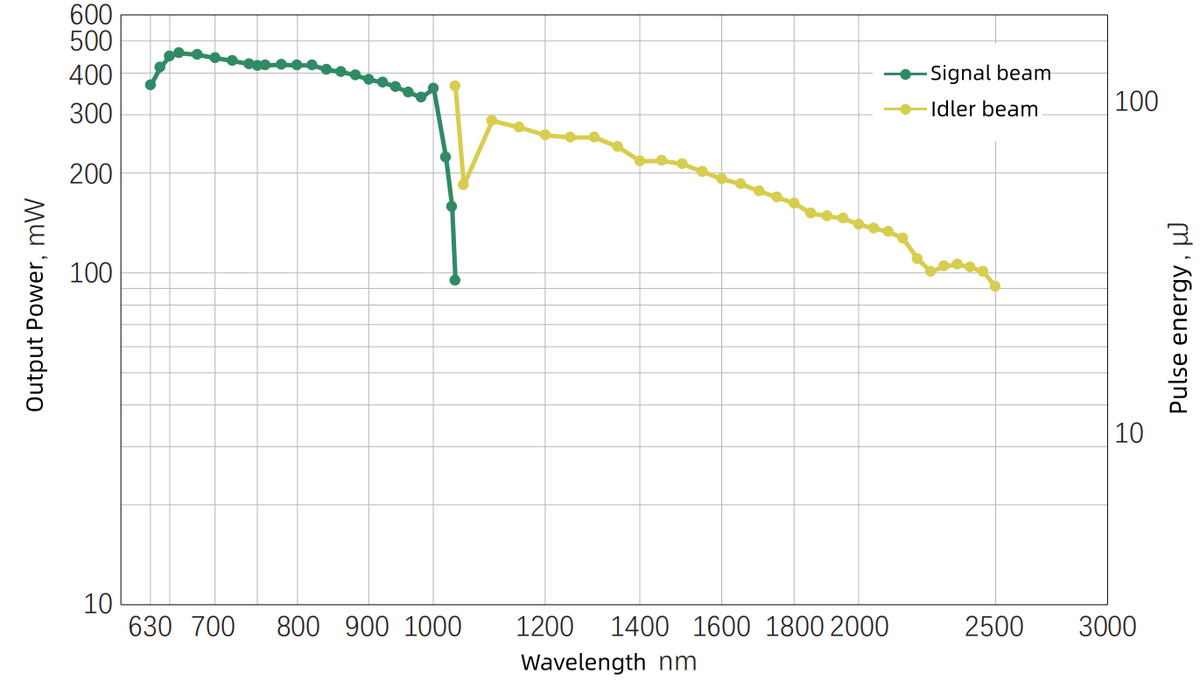

Typical power tuning curve

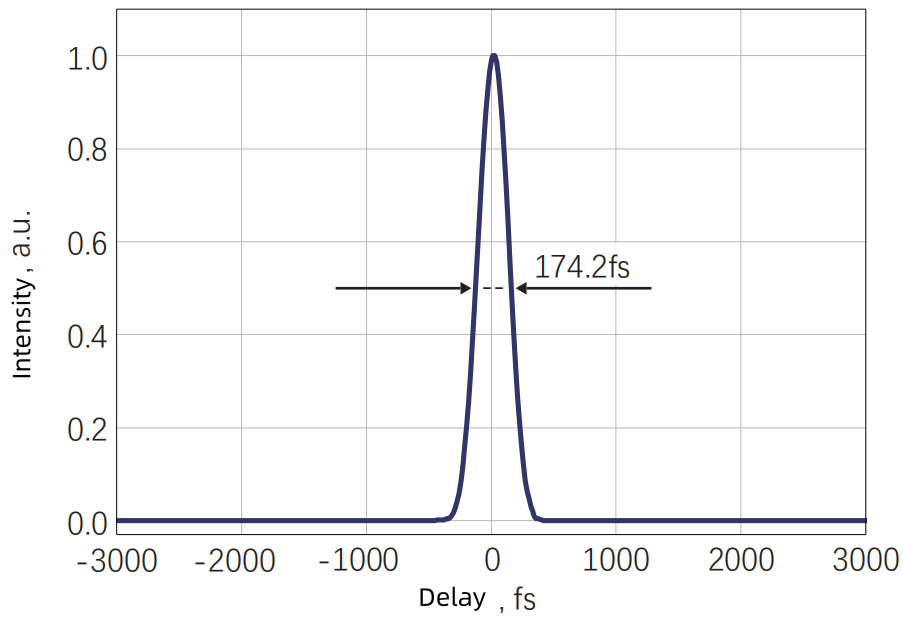

Typical pulse width — Graph
