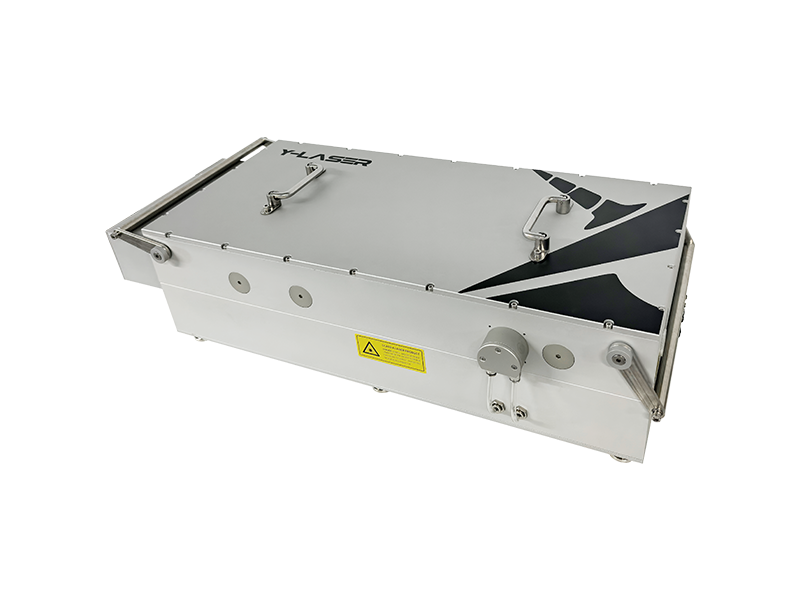

AURORA-IR Mid-Infrared OPA
Yi-Laser

AURORA-IR Mid-Infrared OPA - High Power

YL-AURORA-IR-HP
Contact for pricing
In Stock
Contact Sales

Design Tools

Time-Bandwidth Product Check if your pulse is transform-limited Pulse Stretching & Compression Calculate GVD, TOD, and pulse broadening Wavelength \u2194 Wavenumber Convert between wavelength, frequency, and energy
View all 49 calculators →

Complete Your Setup

Lasers & Sources Mirrors Nonlinear Crystals Optomechanics
RoHS REACH

The AURORA-IR femtosecond optical parametric amplifier is designed for the mid-infrared (MIR) spectrum (1350-16000nm), offering tunable femtosecond pulse output. Compared to the AURORA series, it provides higher conversion efficiency of pump laser to the MIR range. The AURORA-IR series offers similar tuning ranges with easy usability and reliability.

AURORA-IR-HP supports up to 80W pump power, while AURORA-IR-HE is compatible with up to 2mJ single-pulse energy. It works with standard Yb femtosecond lasers and features a pump energy range of 10μJ to 2mJ, with a pulse width range of 100fs to 1.5ps. Customers can achieve precise wavelength tuning with one-click adjustment and customize the system according to their needs.

Key Features

  • Wavelength tuning range: 1350 nm - 16μm
  • Maximum pump power
  • Long-term power stability，8 h2)
  • Pulse-to-pulse energy stability，1min2)

Applications

  • Carrier-Envelope Phase Stabilization
  • Cars And Srs Microscopy
Long-term Power Stability< 2% @ 1550 nm (8h)
Tuning Range1400 – 2000 nm (Signal) 2100 – 4200 nm (Idler)
Maximum Pump Power80W
Pump Pulse Energy12 - 400 µJ
Conversion Efficiency @ 1550 nm> 9%, 30–2000 µJ Pump / > 6%, 12–30 µJ Pump
Spectral Bandwidth50 – 150 cm⁻¹ @ 1450 – 2000 nm
Pulse-to-Pulse Energy Stability< 2% @ 1550 nm (1 min)
Pump Pulse Width100 fs – 1.5 ps
DFG Tuning Range4000 – 16000 nm (DFG)
DFG Conversion Efficiency> 0.3% @ 10000 nm, 30–2000 µJ Pump / > 0.2% @ 10000 nm, 12–30 µJ Pump
DFG Spectral Bandwidth50 – 120 cm⁻¹ @ 5000 – 8000 nm
Dimensions (L×W×H)800 × 395 × 254 mm
Weight52 kg
Additional Weight24 kg (Water-Cooled Machine) + 17 kg (Frequency Doubling)
Power SupplyAC 220V/10A; 24V DC Power Supply, Motor Drive, Total Power ≤ 150W
ChillerCWUP-10AI; operating voltage 220V; operating current 0.6-5.6A; rated power 1.02 kW; cooling capacity 0.75 kW
Specification Sheet PDF — Download
AURORA-IR Mid-Infrared OPA - High Power — Dimensional Drawing

AURORA-IR Mid-Infrared OPA - High Power — Dimensional Drawing (click to enlarge)

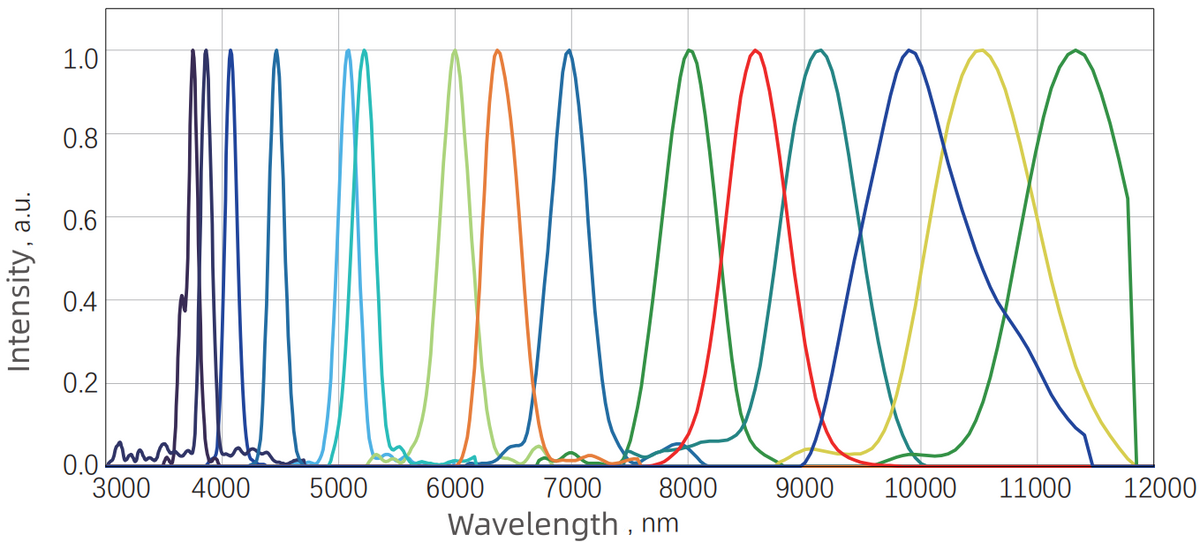

DFG tuning spectrum — Graph
DFG tuning spectrum — Graph

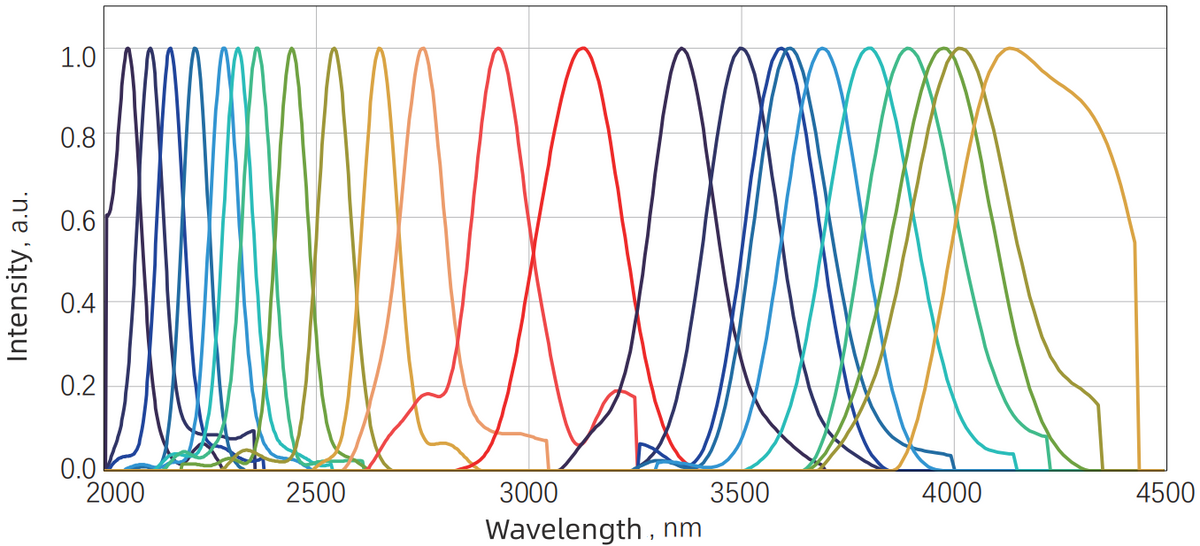

Idler tuning spectrum — Graph
Idler tuning spectrum — Graph

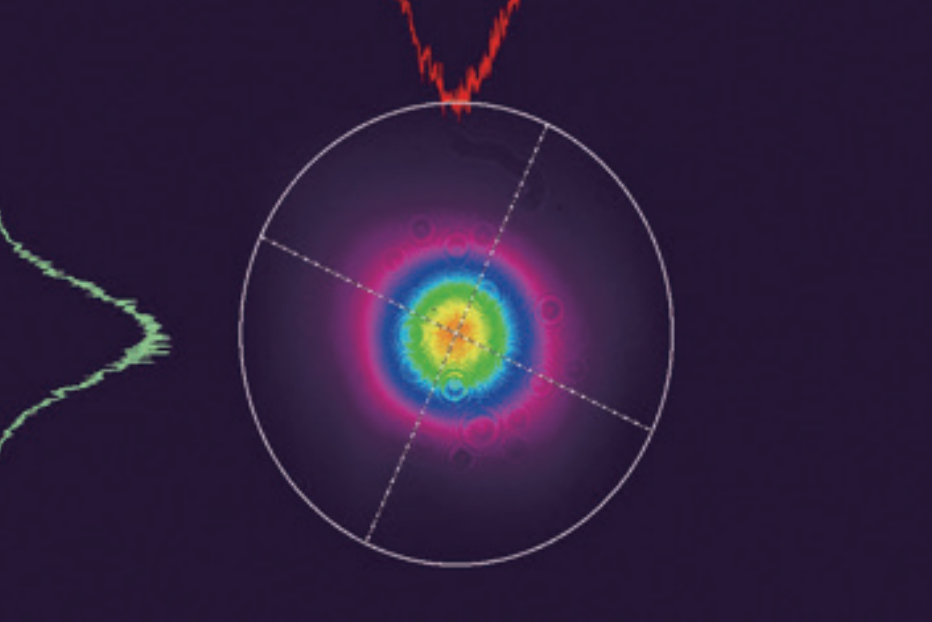

Output beam spot — Graph
Output beam spot — Graph

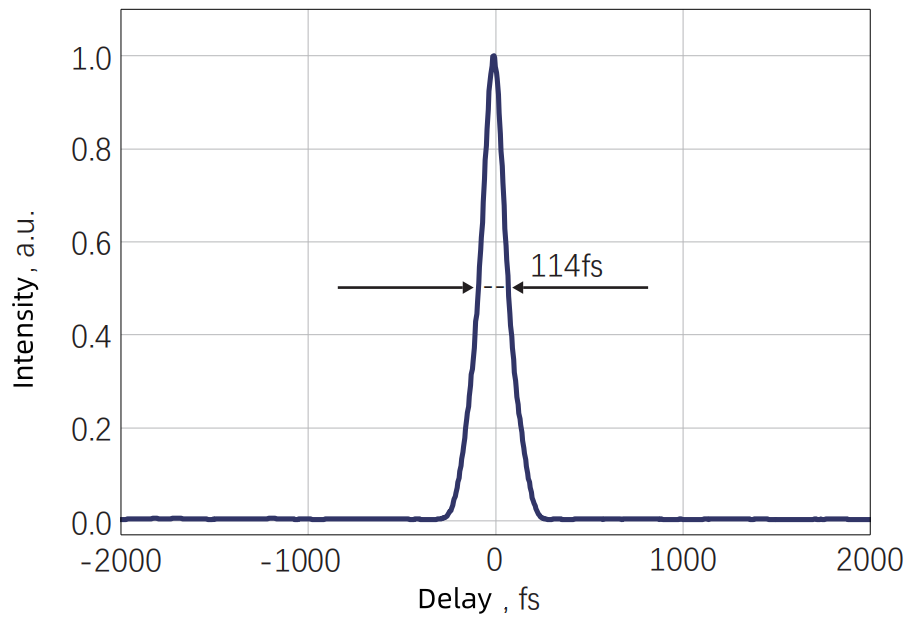

Output pulse width — Graph
Output pulse width — Graph

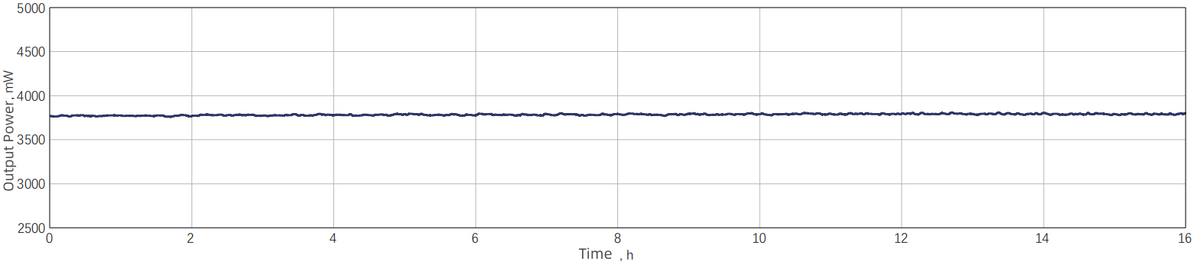

Power stability — Graph
Power stability — Graph

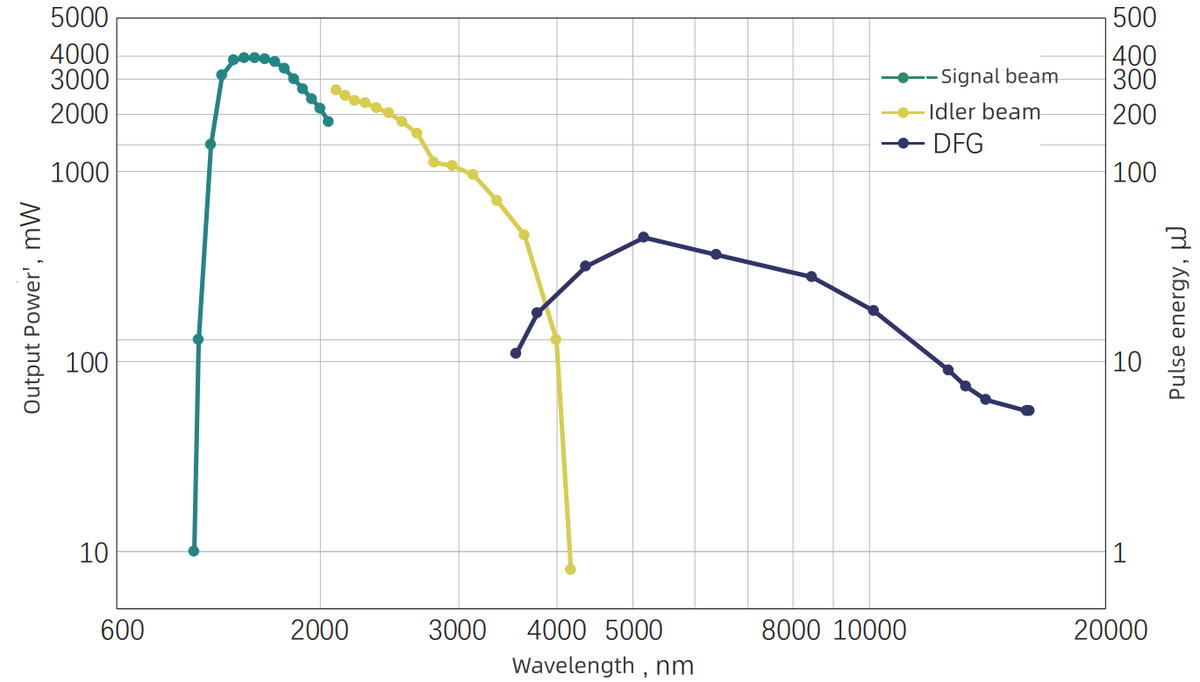

Power tuning curve
Power tuning curve

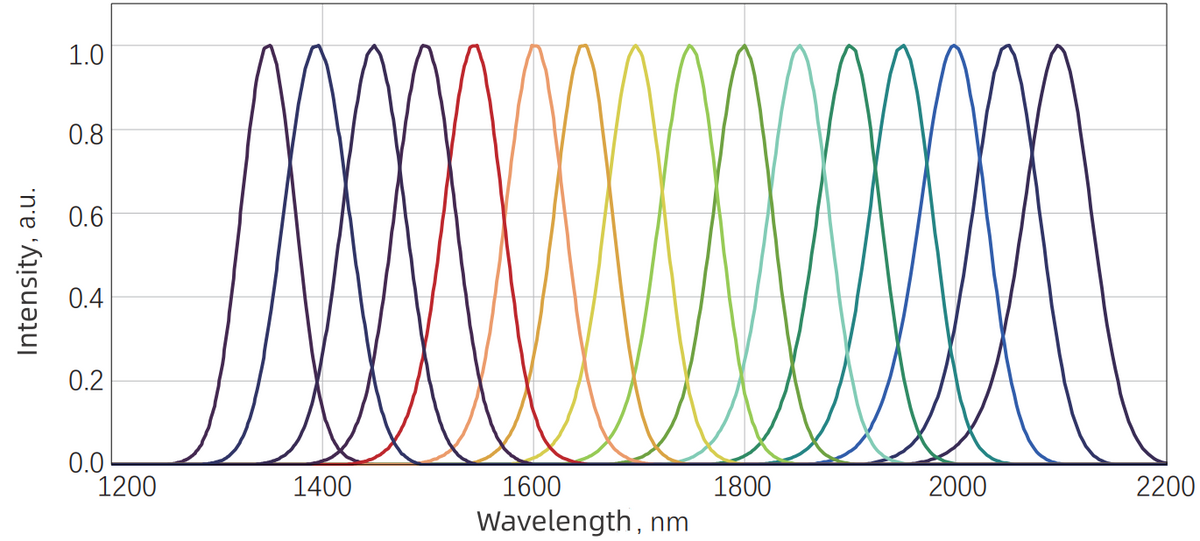

Signal tuning spectrum — Graph
Signal tuning spectrum — Graph
