WaveQuanta

Broadband Dielectric Mirrors, Circular BDM05-A

Name: Broadband Dielectric Mirrors, Circular BDM05-A
Brand: WaveQuanta
SKU: BDM05-A
Price: 100.24 SGD
Availability: InStock

BDM05-A

$100.24

In Stock

Key Specifications

Wavelength 400.0nm

Diameter 12.7mm

LIDT 0.055J/cm²

Reflectance 99.0%

Request Quote

Design Tools

Gaussian Beam Calculator Model beam propagation through your optical system LIDT Calculator Verify damage threshold for your laser parameters Wavelength \u2194 Wavenumber Convert between wavelength, frequency, and energy

View all 49 calculators →

RoHS REACH

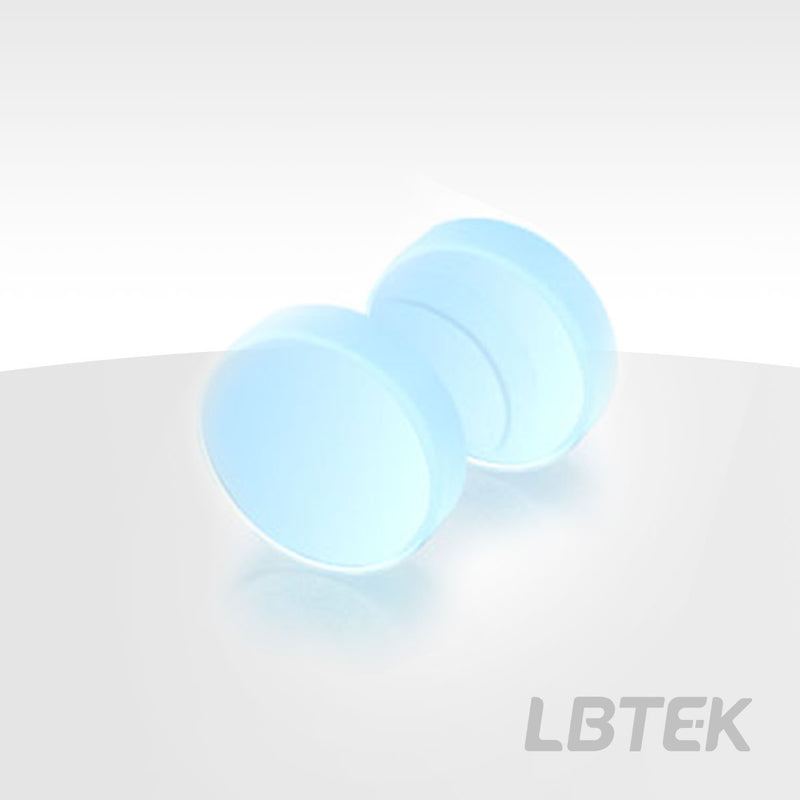

Broadband Dielectric Mirrors, Circular — Model BDM05-A

Operating wavelength 400 nm-750 nm, Ø12.7 mm, substrate UV Fused Silica.

Product Description

Optical Material: UV Fused Silica
Application: Beam Deflection
Operating Wavelength: 300 nm-1650 nm

Reflectors are used to change the direction of light beam emission. LBTEK's fused silica broadband dielectric coating mirrors achieve a reflectivity of over 99% within the working wavelength range. To meet customers' diverse size requirements, LBTEK offers UV fused silica dielectric mirrors in various shapes including round, oval, square, and D-shaped. LBTEK also provides customized reflector services with other materials and coating systems. For customization needs, please contact our technical support.

Broadband Dielectric Mirrors, Circular

Working Wavelength: 300 nm-750 nm, 400 nm-750 nm, 750 nm-1100 nm, 1100 nm-1650 nm
Application: Deflecting Optical Path
Optical Material: UV Fused Silica

Clear Aperture	85% CA
Thickness	6.0 mm
Damage Threshold	0.055J/cm2@515nm, 290fs, 100Hz, Ø10.72μm (100 Pulses)
Reflectance (AR)	Ravg>99%a(45°AOI)
Diameter Tolerance	+0.00/-0.10 mm
Thickness Tolerance	±0.2 mm
Clear Aperture	85% CA
Operating Wavelength	400 nm-750 nm
Reflectance	Ravg>99%a(45°AOI)
Thickness	6.0 mm
Diameter	12.7 mm
Substrate Material	UV Fused Silica
Damage Threshold	0.055J/cm2@515nm, 290fs, 100Hz, Ø10.72μm (100 Pulses)

Low damage threshold detected (0.055 J/cm²). For high-power applications, consider WaveQuanta premium IBS-coated optics with enhanced damage resistance.

Specification Sheet PDF — Download

CAD Drawing Download

3D Model (STL) STL — Download

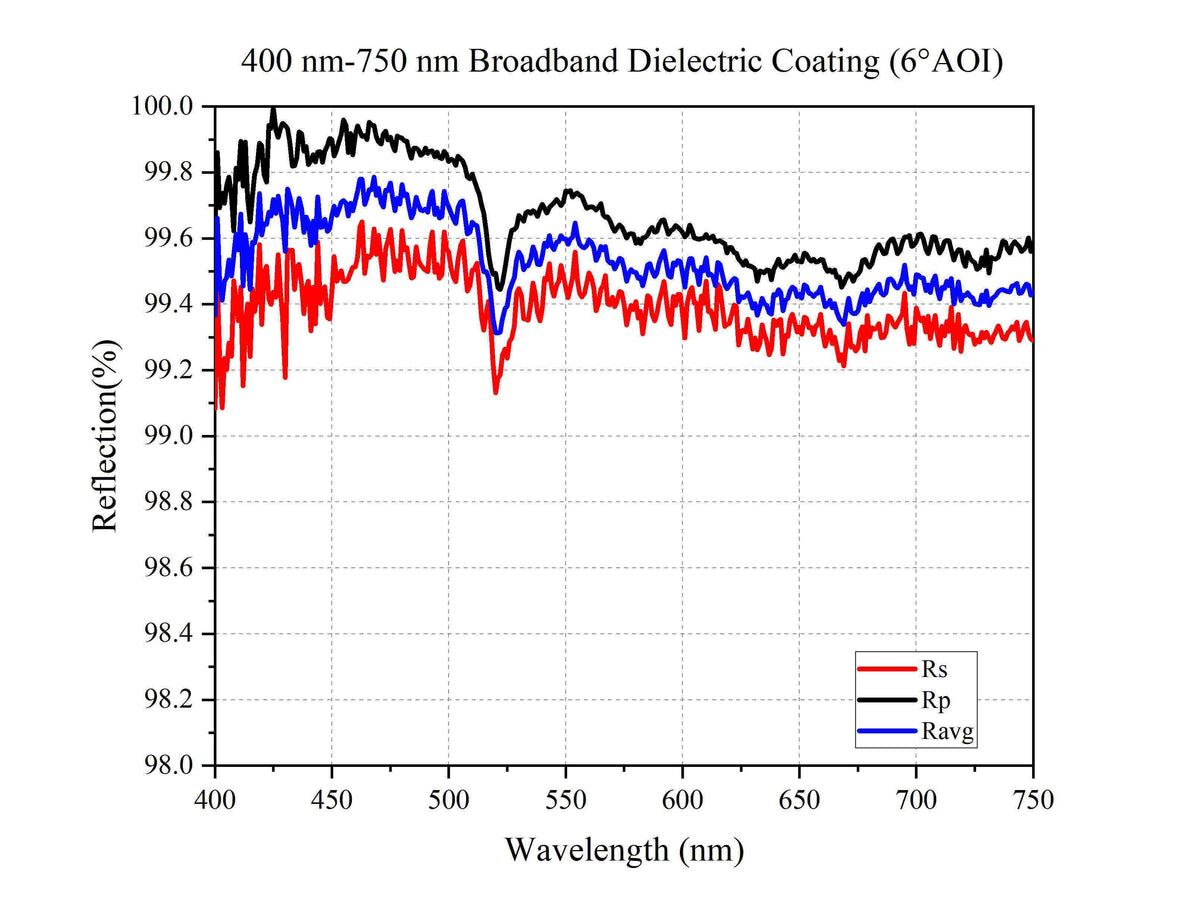

Curve - 400 nm-750 nm Broadband Dielectric Coating (6°AOI)

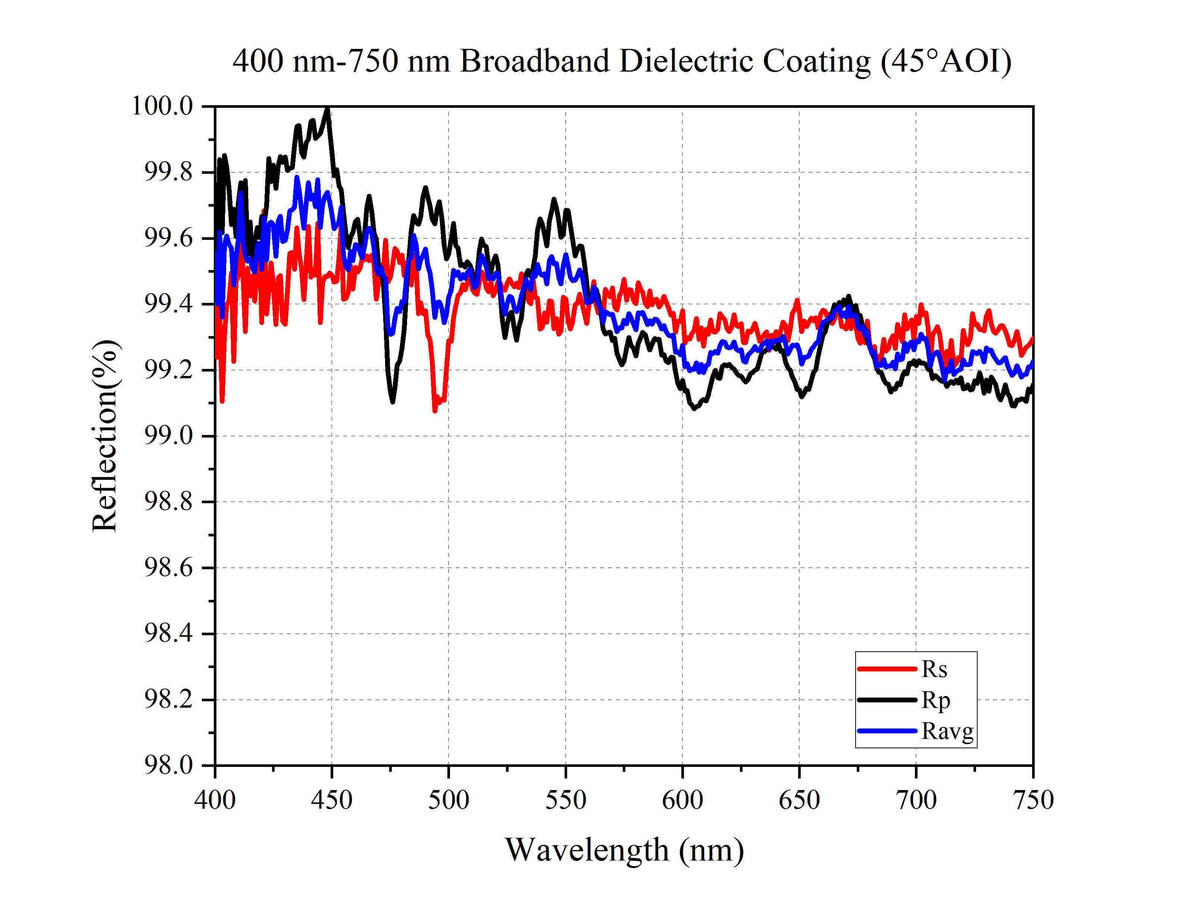

Curve - 400 nm-750 nm Broadband Dielectric Coating (45°AOI)

Product Family: Broadband Dielectric Mirrors, UV Fused Silica, Operating Wavelength: 300 nm-1650 nm (31 variants)

Product ▴▾	SKU	Size ▴▾	Clear Aperture ▴▾	Operating Wavelength ▴▾
