Broadband Dielectric Mirrors, Elliptical — Model BDM1E-C

Operating wavelength 1100 nm-1650 nm, substrate UV Fused Silica.

Product Description

Optical Material: UV Fused Silica
Application: Beam Deflection
Operating Wavelength: 300 nm-1650 nm

Reflectors are used to change the direction of light beam emission. LBTEK's fused silica broadband dielectric coating mirrors achieve a reflectivity of over 99% within the working wavelength range. To meet customers' diverse size requirements, LBTEK offers UV fused silica dielectric mirrors in various shapes including round, oval, square, and D-shaped. LBTEK also provides customized reflector services with other materials and coating systems. For customization needs, please contact our technical support.

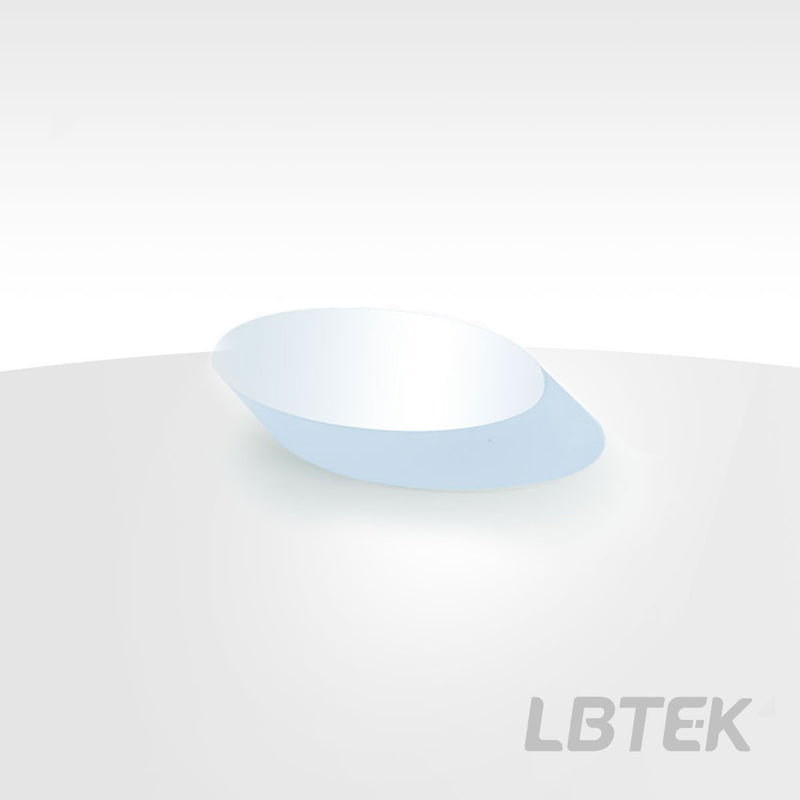

Broadband Dielectric Mirrors, Elliptical

Substrate Material: UVFS
Application: Beam Deflection
Operating Wavelength: 400 nm-750 nm, 750 nm-1100 nm, 1100 nm-1650 nm

Clear Aperture	90% CA
Thickness	6.0 mm
Damage Threshold	0.50J/cm2@1550nm, 190fs, 100Hz, Ø11.47μm (100 Pulses)
Reflectance (AR)	Ravg>99%a(45°AOI)
Thickness Tolerance	±0.25 mm
Clear Aperture	90% CA
Operating Wavelength	1100 nm-1650 nm
Reflectance	Ravg>99%a(45°AOI)
Thickness	6.0 mm
Substrate Material	: :35.9 mm :25.4 mm
Damage Threshold	0.50J/cm2@1550nm, 190fs, 100Hz, Ø11.47μm (100 Pulses)

Low damage threshold detected (0.5 J/cm²). For high-power applications, consider WaveQuanta premium IBS-coated optics with enhanced damage resistance.

Specification Sheet PDF — Download

CAD Drawing Download

3D Model (STL) STL — Download

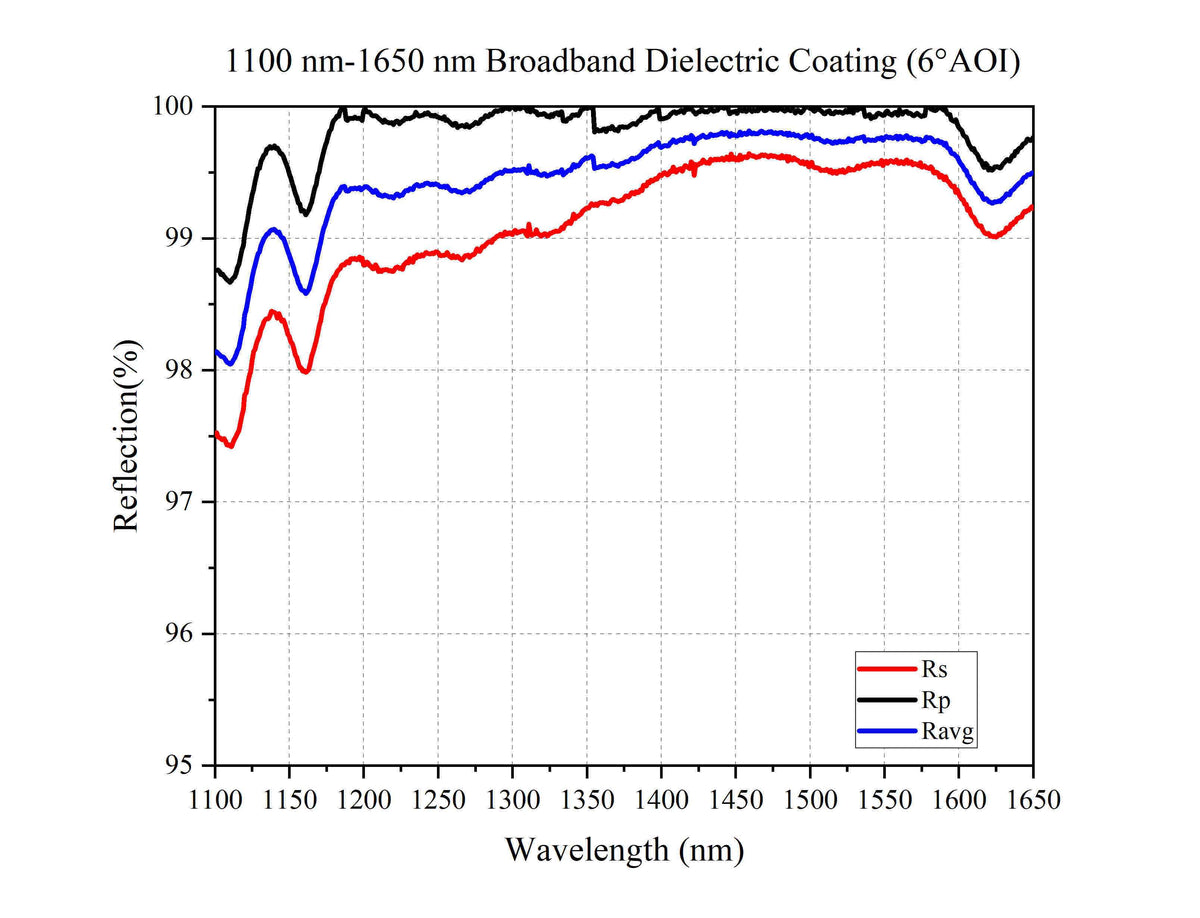

Curve - 1100 nm-1650 nm Broadband Dielectric Coating (6°AOI)

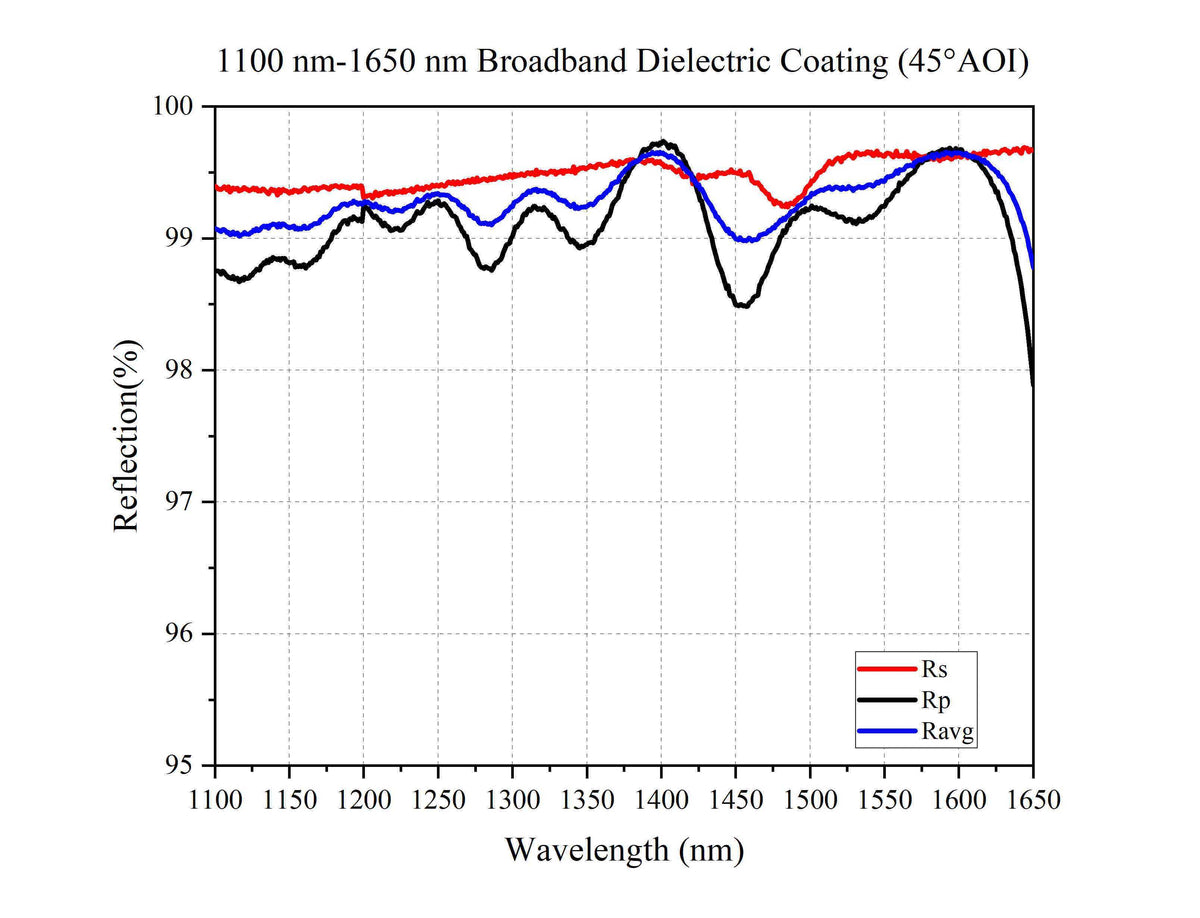

Curve - 1100 nm-1650 nm Broadband Dielectric Coating (45°AOI)

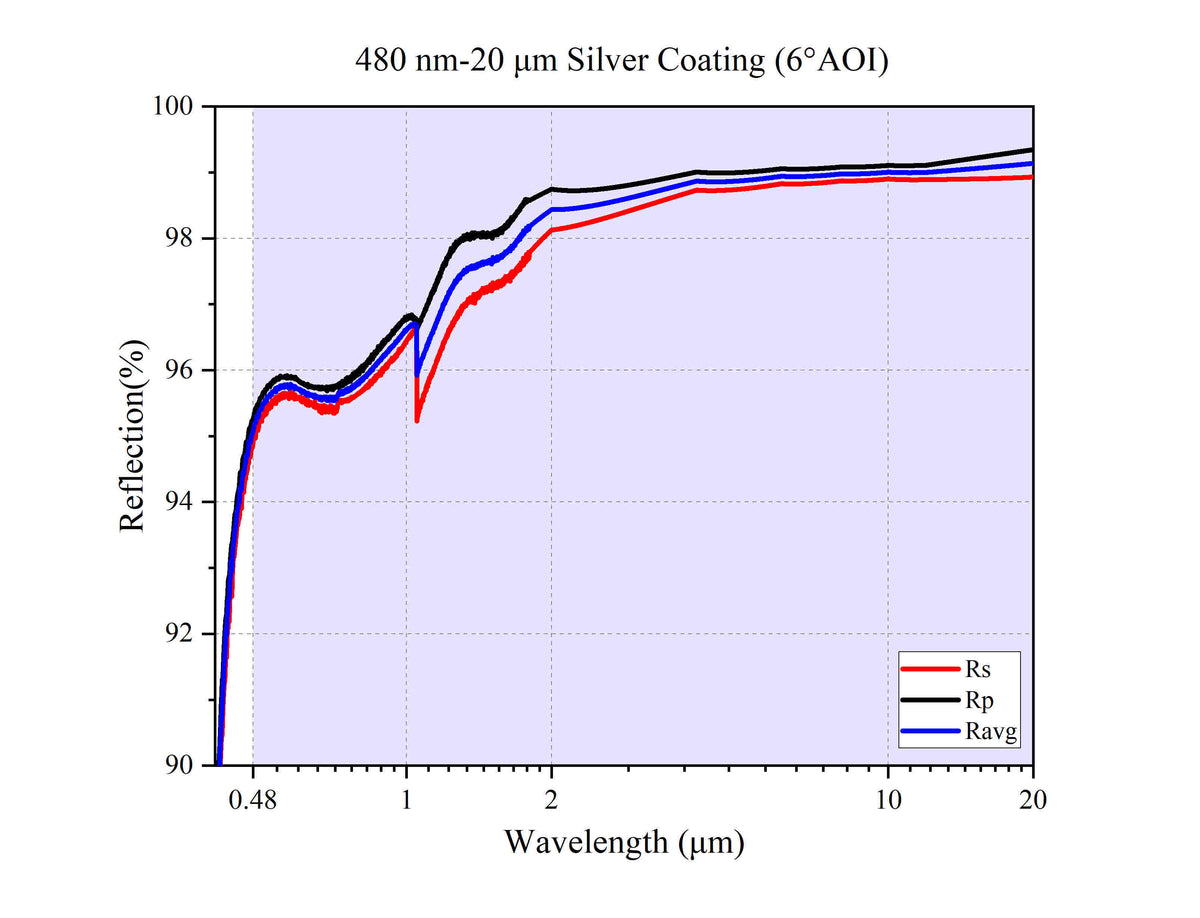

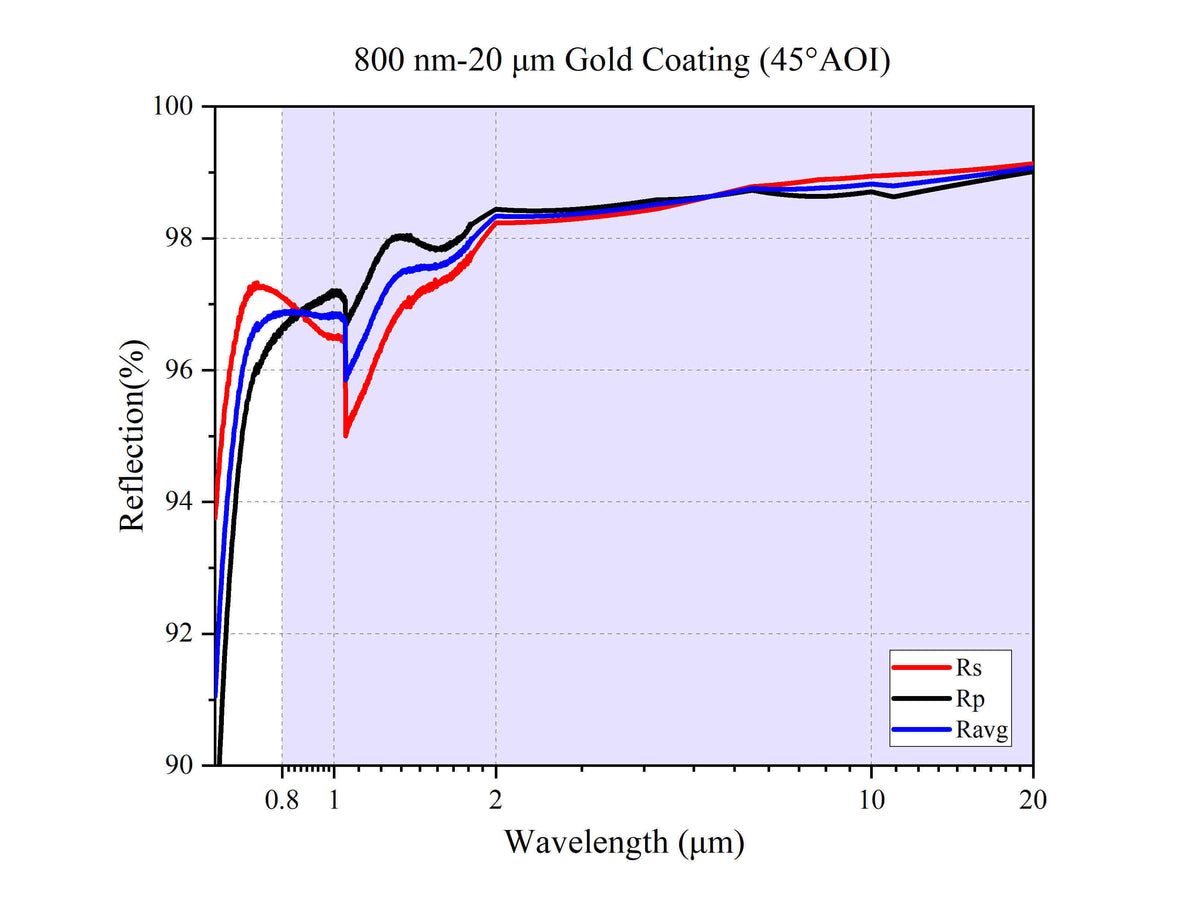

Curve - 800 nm-20 μm Gold Coating (45°AOI)

Curve - 480 nm-20 μm Silver Coating (6°AOI)

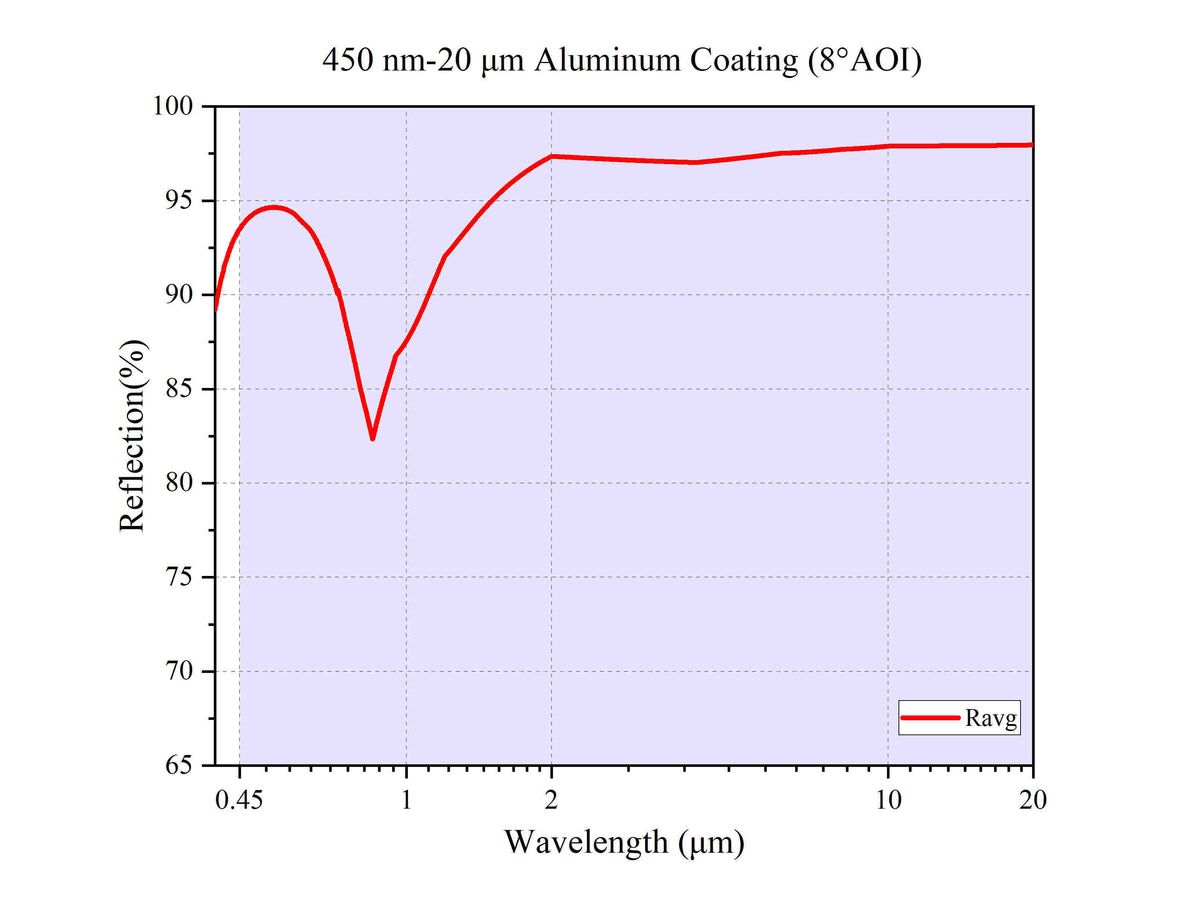

Curve - 450 nm-20 μm Aluminum Coating (8°AOI)
