WaveQuanta

Broadband Dielectric Mirrors, Elliptical BDM05E-A

BDM05E-A
$168.19
In Stock
Key Specifications
Wavelength 400.0nm
LIDT 0.055J/cm²
Reflectance 99.0%
Request Quote

Design Tools

Gaussian Beam Calculator Model beam propagation through your optical system LIDT Calculator Verify damage threshold for your laser parameters Wavelength \u2194 Wavenumber Convert between wavelength, frequency, and energy
View all 49 calculators →
RoHS REACH

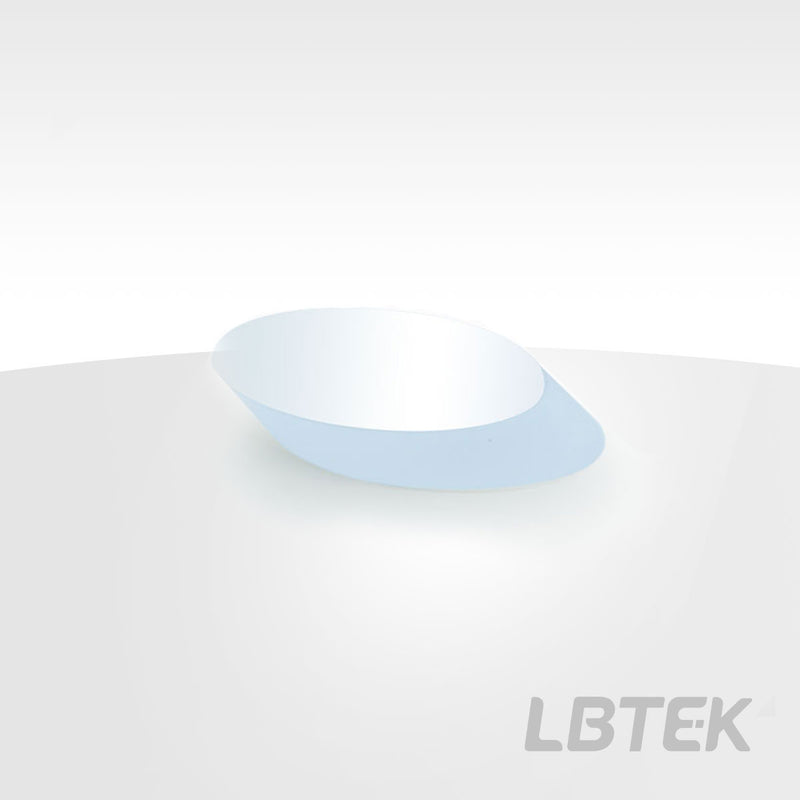

Broadband Dielectric Mirrors, Elliptical — Model BDM05E-A

Operating wavelength 400 nm-750 nm, substrate UV Fused Silica.

Product Description

  • Optical Material: UV Fused Silica
  • Application: Beam Deflection
  • Operating Wavelength: 300 nm-1650 nm

Reflectors are used to change the direction of light beam emission. LBTEK's fused silica broadband dielectric coating mirrors achieve a reflectivity of over 99% within the working wavelength range. To meet customers' diverse size requirements, LBTEK offers UV fused silica dielectric mirrors in various shapes including round, oval, square, and D-shaped. LBTEK also provides customized reflector services with other materials and coating systems. For customization needs, please contact our technical support.

Broadband Dielectric Mirrors, Elliptical

  • Substrate Material: UVFS
  • Application: Beam Deflection
  • Operating Wavelength: 400 nm-750 nm, 750 nm-1100 nm, 1100 nm-1650 nm
Clear Aperture90% CA
Thickness6.0 mm
Damage Threshold0.055J/cm2@515nm, 290fs, 100Hz, Ø10.72μm (100 Pulses)
Reflectance (AR)Ravg>99%a@400 nm-750 nm
Thickness Tolerance±0.20 mm
Clear Aperture90% CA
Operating Wavelength400 nm-750 nm
ReflectanceRavg>99%a@400 nm-750 nm
Thickness6.0 mm
Substrate Material: :18.0 mm() :12.7 mm
Damage Threshold0.055J/cm2@515nm, 290fs, 100Hz, Ø10.72μm (100 Pulses)
Low damage threshold detected (0.055 J/cm²). For high-power applications, consider WaveQuanta premium IBS-coated optics with enhanced damage resistance.
Specification Sheet PDF — Download
CAD Drawing Download
3D Model (STL) STL — Download

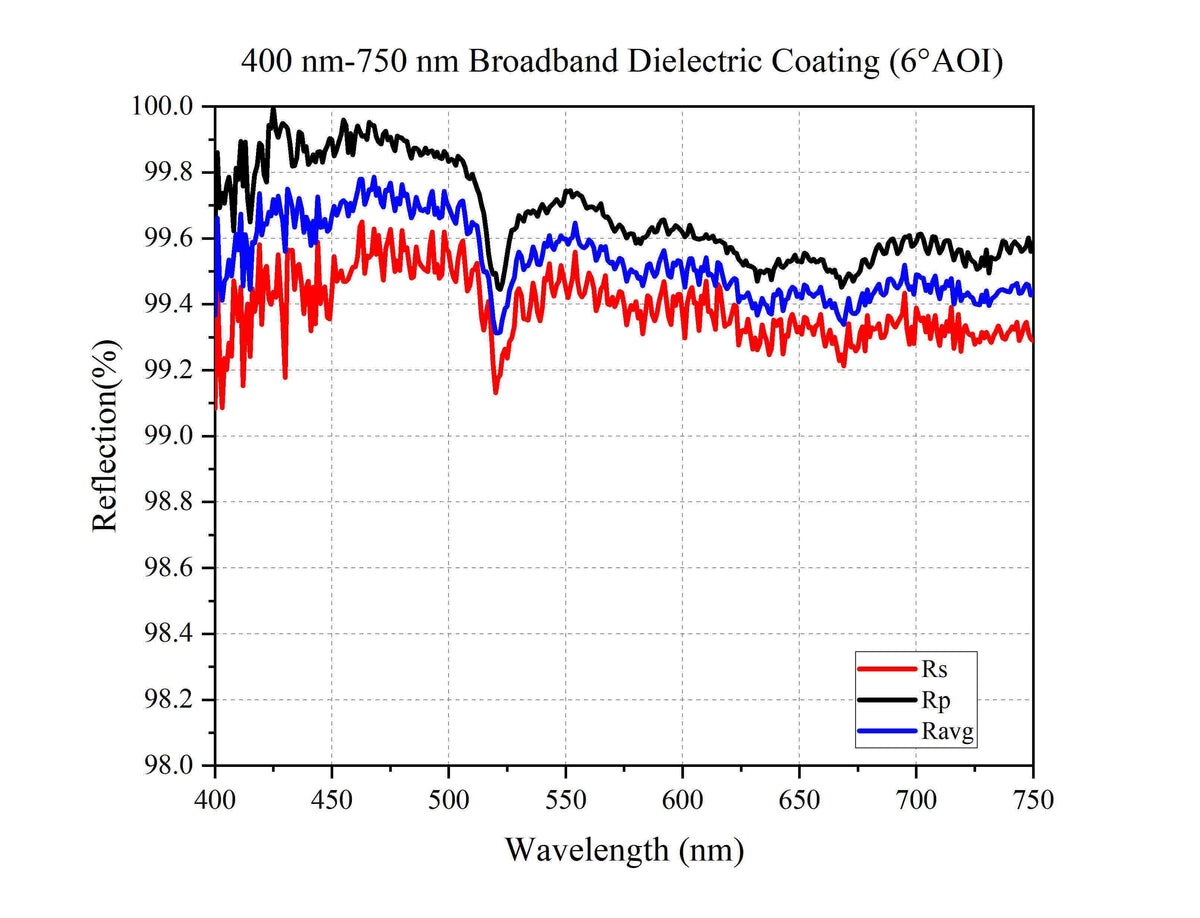

Curve - 400 nm-750 nm Broadband Dielectric Coating (6°AOI)
Curve - 400 nm-750 nm Broadband Dielectric Coating (6°AOI)

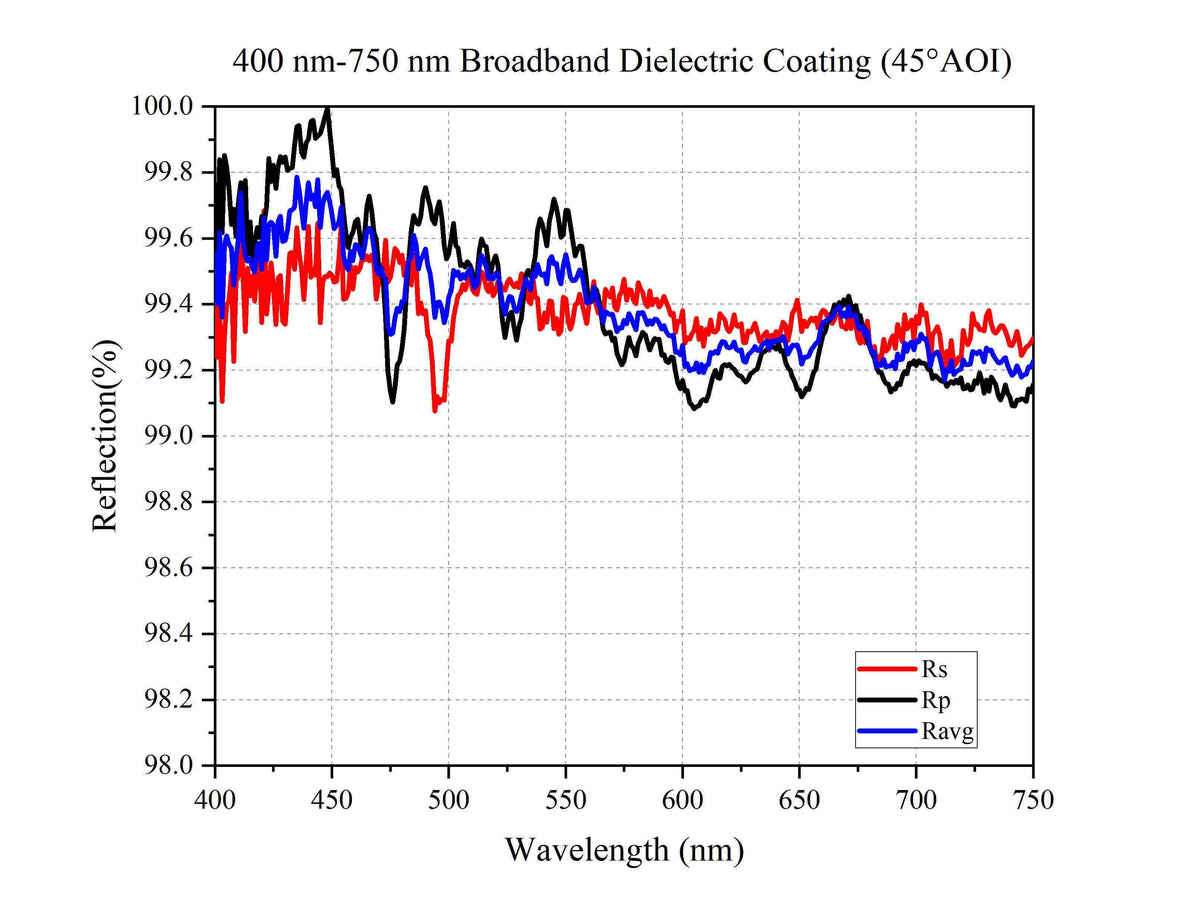

Curve - 400 nm-750 nm Broadband Dielectric Coating (45°AOI)
Curve - 400 nm-750 nm Broadband Dielectric Coating (45°AOI)

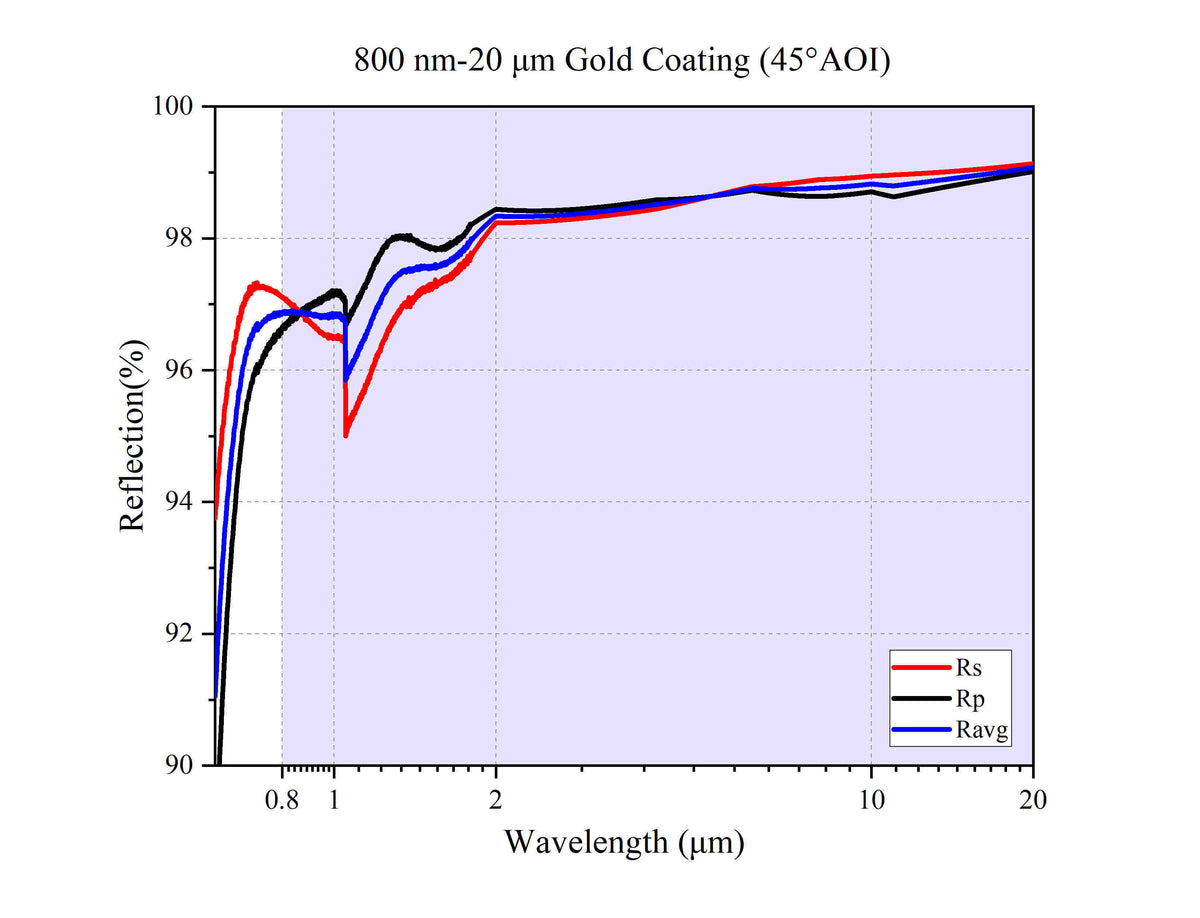

Curve - 800 nm-20 μm Gold Coating (45°AOI)
Curve - 800 nm-20 μm Gold Coating (45°AOI)

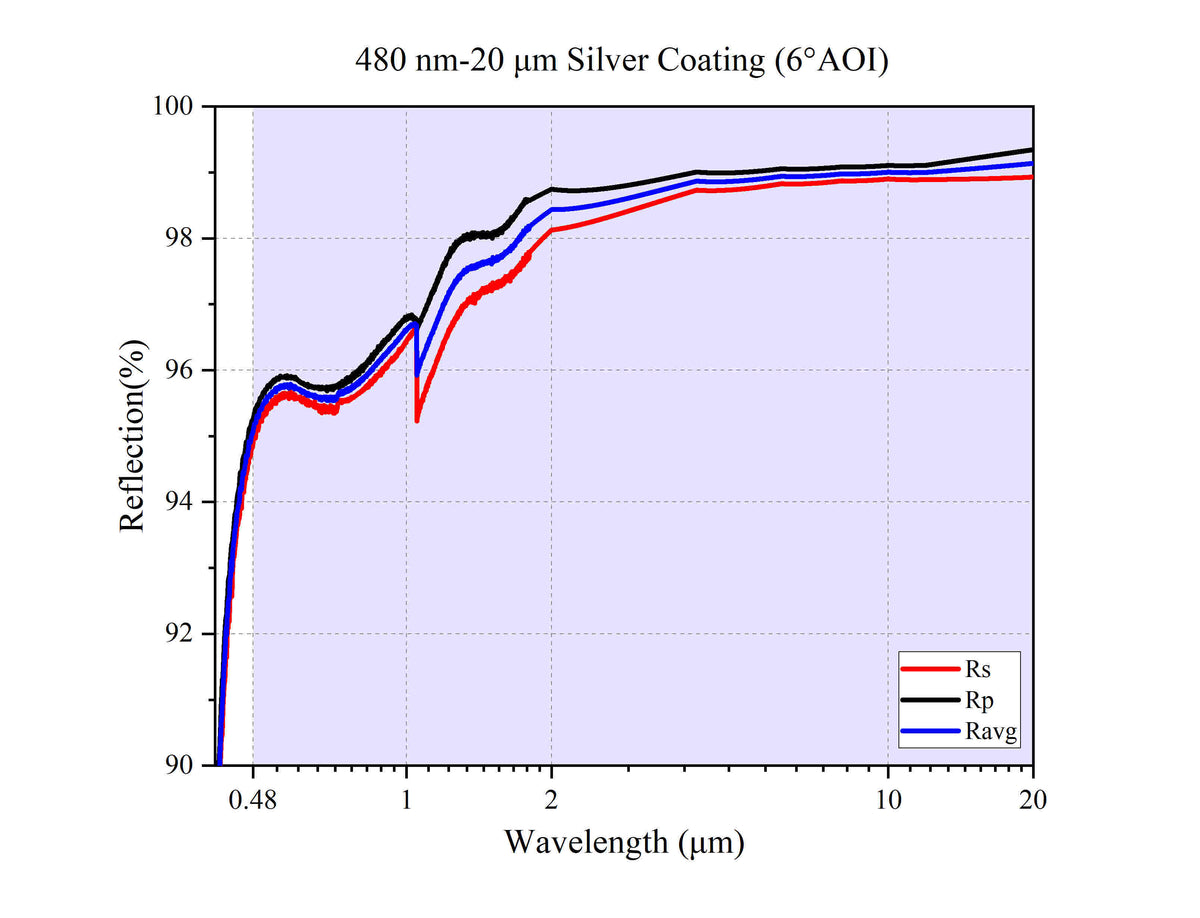

Curve - 480 nm-20 μm Silver Coating (6°AOI)
Curve - 480 nm-20 μm Silver Coating (6°AOI)

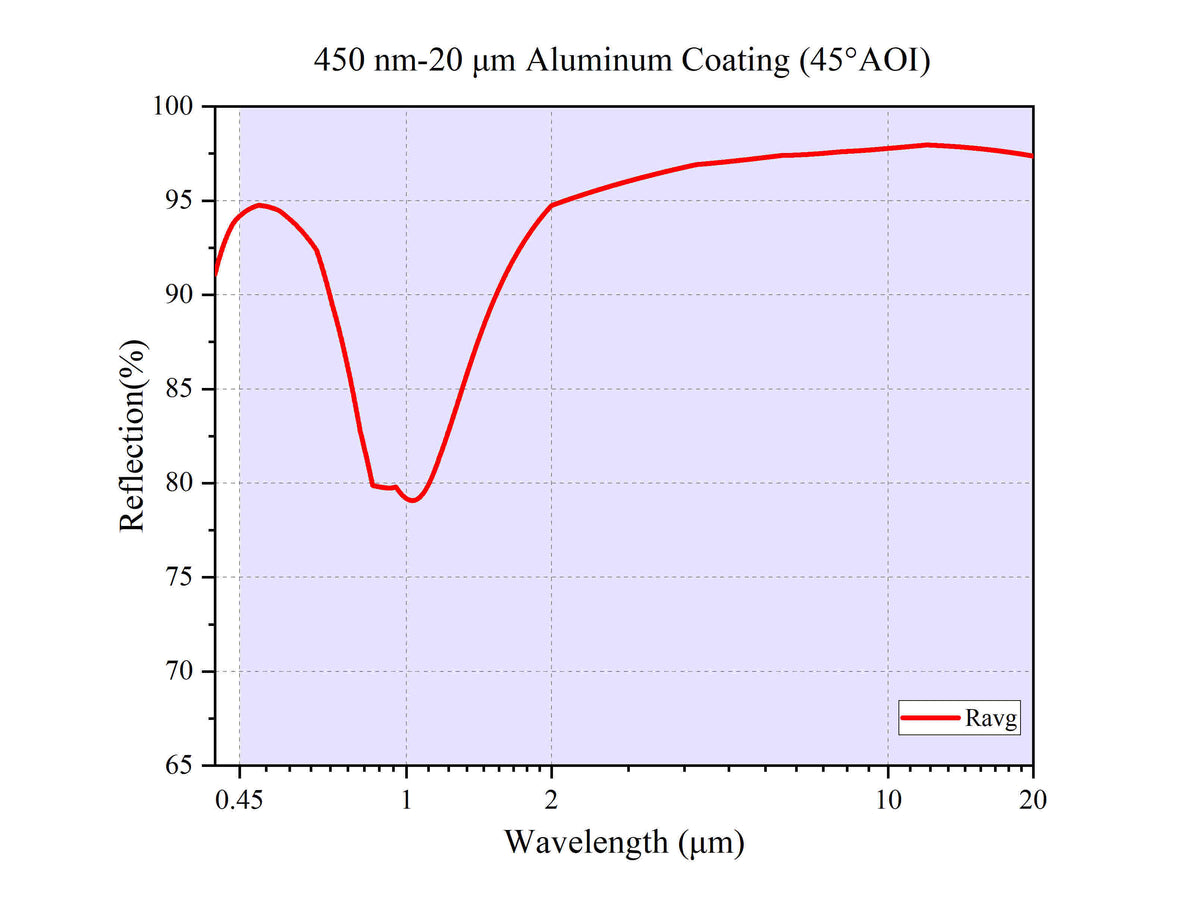

Curve - 450 nm-20 μm Aluminum Coating (45°AOI)
Curve - 450 nm-20 μm Aluminum Coating (45°AOI)
