What wavelength range does Broadband Dielectric Mirrors, Circular BDM1-UVA-P10 support?

Broadband Dielectric Mirrors, Circular BDM1-UVA-P10 operates at a center wavelength of 300.0 nm.

What are the physical dimensions of Broadband Dielectric Mirrors, Circular BDM1-UVA-P10?

Broadband Dielectric Mirrors, Circular BDM1-UVA-P10 dimensions: Diameter: 25.4 mm. Thickness: 6.0 mm.

Is Broadband Dielectric Mirrors, Circular BDM1-UVA-P10 available for purchase?

Yes, request a quote for pricing and lead time at WaveQuanta.Contact our sales team for current availability and volume pricing.

WaveQuanta

Broadband Dielectric Mirrors, Circular BDM1-UVA-P10

Name: Broadband Dielectric Mirrors, Circular BDM1-UVA-P10
Brand: WaveQuanta
SKU: BDM1-UVA-P10
Price: 2367.36 SGD
Availability: InStock

BDM1-UVA-P10

$2,367.36

In Stock

Key Specifications

Wavelength 300.0nm

Diameter 25.4mm

Reflectance 99.0%

Request Quote

Design Tools

Gaussian Beam Calculator Model beam propagation through your optical system Wavelength \u2194 Wavenumber Convert between wavelength, frequency, and energy

View all 49 calculators →

RoHS REACH

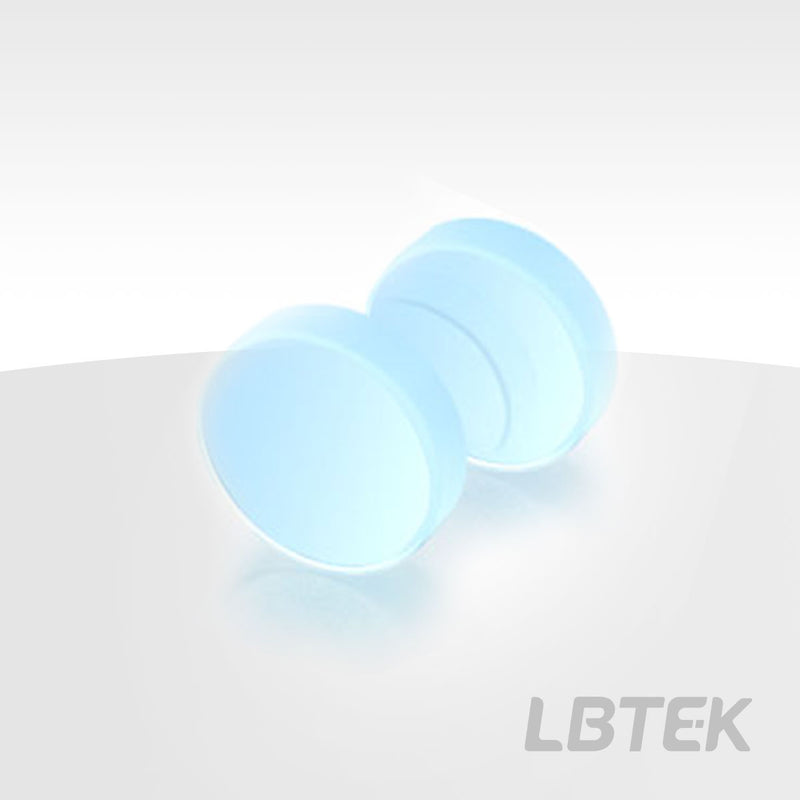

Broadband Dielectric Mirrors, Circular — Model BDM1-UVA-P10

Operating wavelength 300 nm-750 nm, Ø25.4 mm, substrate UV Fused Silica.

Product Description

Optical Material: UV Fused Silica
Application: Beam Deflection
Operating Wavelength: 300 nm-1650 nm

Reflectors are used to change the direction of light beam emission. LBTEK's fused silica broadband dielectric coating mirrors achieve a reflectivity of over 99% within the working wavelength range. To meet customers' diverse size requirements, LBTEK offers UV fused silica dielectric mirrors in various shapes including round, oval, square, and D-shaped. LBTEK also provides customized reflector services with other materials and coating systems. For customization needs, please contact our technical support.

Broadband Dielectric Mirrors, Circular

Working Wavelength: 300 nm-750 nm, 400 nm-750 nm, 750 nm-1100 nm, 1100 nm-1650 nm
Application: Deflecting Optical Path
Optical Material: UV Fused Silica

Clear Aperture	90% CA
Operating Wavelength	300 nm-750 nm
Reflectance	Ravg>99%a@300 nm-750 nm, AOI=0°-45°
Thickness	6.0 mm
Diameter	25.4 mm
Substrate Material	UV Fused Silica

No documents available for this product.

No CAD drawings available for this product.

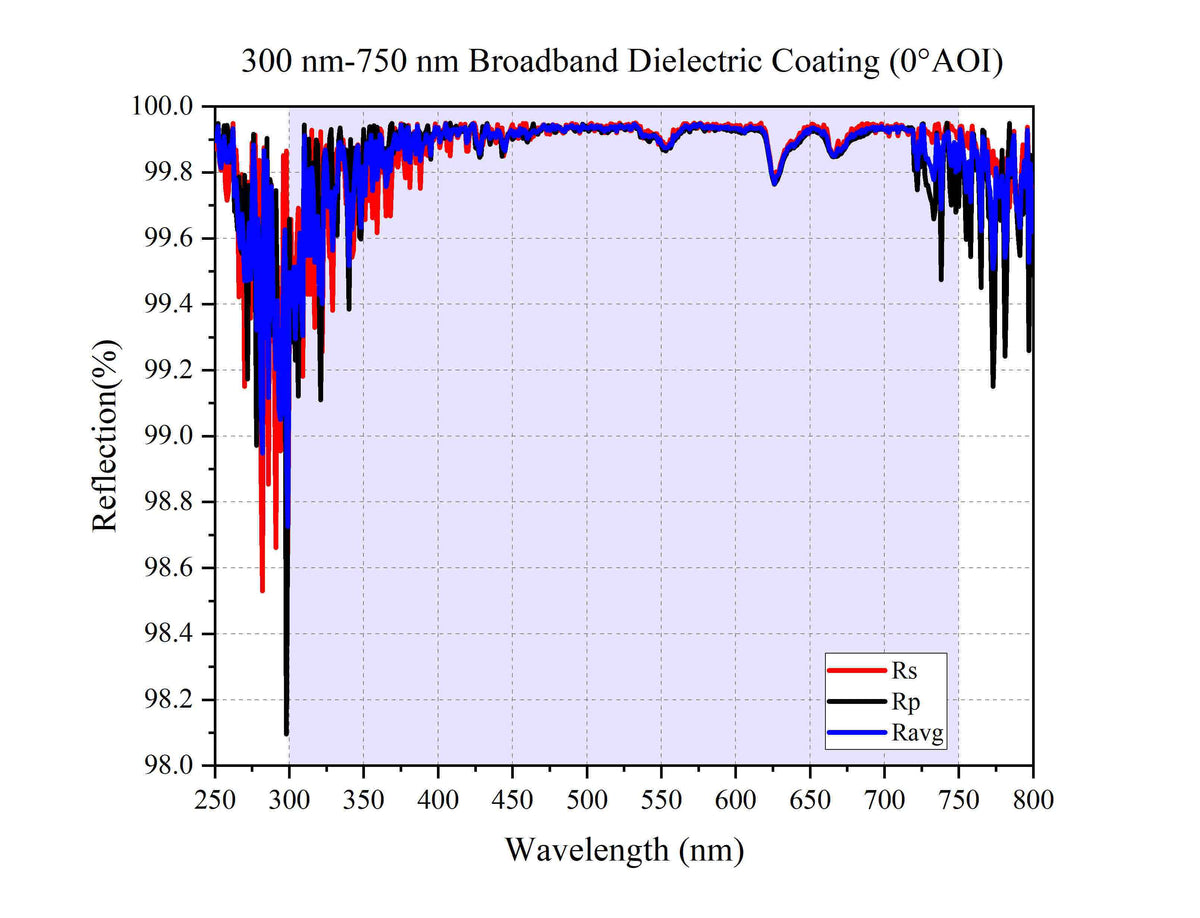

Curve - 300 nm-750 nm Broadband Dielectric Coating (0°AOI)

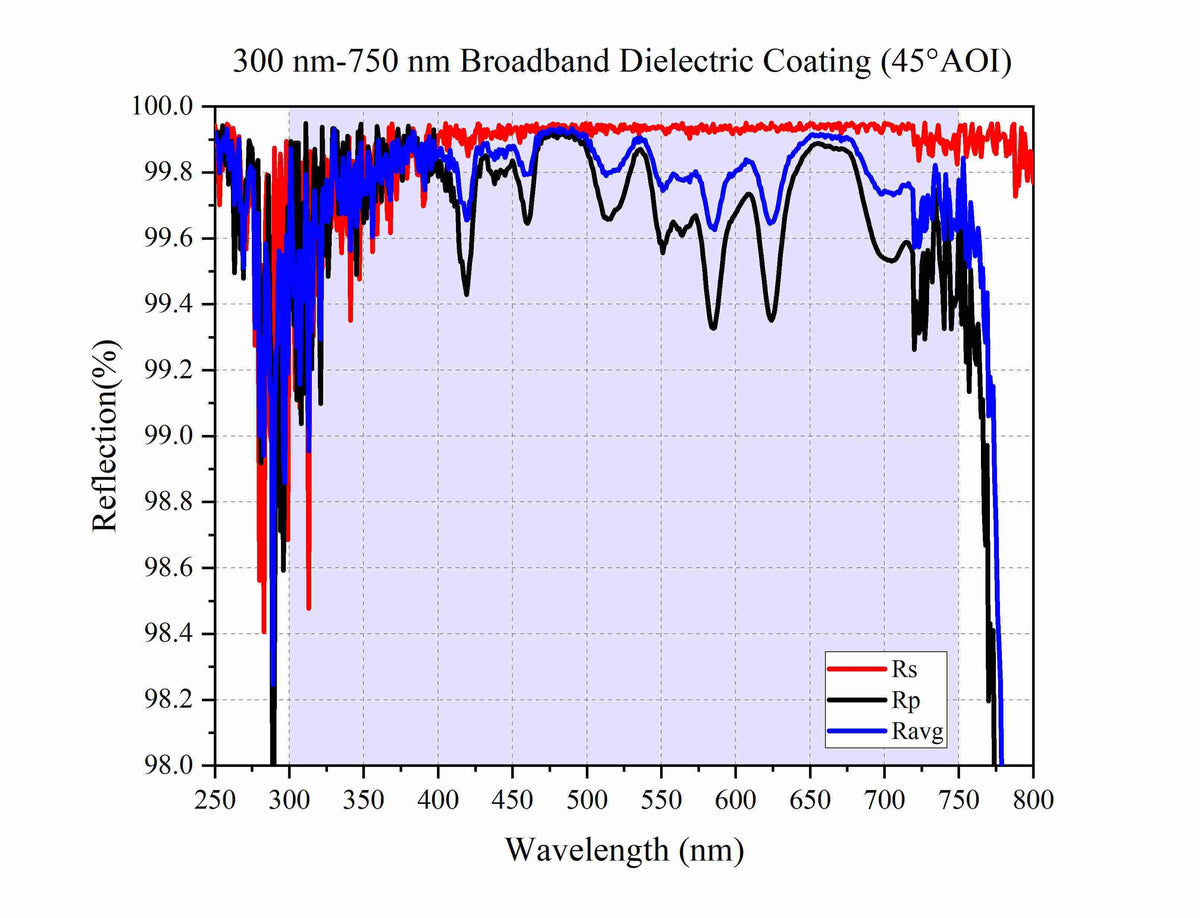

Curve - 300 nm-750 nm Broadband Dielectric Coating (45°AOI)

Product Family: Broadband Dielectric Mirrors, UV Fused Silica, Operating Wavelength: 300 nm-1650 nm (31 variants)

Product ▴▾	SKU	Size ▴▾	Clear Aperture ▴▾	Operating Wavelength ▴▾
Broadband Dielectric Mirrors, D-shaped BDM1D-A	`BDM1D-A`	90% CA	90% CA	400 nm-750 nm	View
Broadband Dielectric Mirrors, D-shaped BDM1D-B	`BDM1D-B`	90% CA	90% CA	750 nm-1100 nm	View
Broadband Dielectric Mirrors, D-shaped BDM1D-C	`BDM1D-C`	90% CA	90% CA	1100 nm-1650 nm	View
Broadband Dielectric Mirrors, Square BDM1S-A	`BDM1S-A`	90% CA	90% CA	400 nm-750 nm	View
Broadband Dielectric Mirrors, Square BDM1S-B	`BDM1S-B`	90% CA	90% CA	750 nm-1100 nm	View
Broadband Dielectric Mirrors, Square BDM1S-C	`BDM1S-C`	90% CA	90% CA	1100 nm-1650 nm	View
Broadband Dielectric Mirrors, Square BDMR-39×30-A-SP	`BDMR-39×30-A-SP`	90% CA	90% CA	400 nm-750 nm	View
Broadband Dielectric Mirrors, Elliptical BDM1E-A	`BDM1E-A`	90% CA	90% CA	400 nm-750 nm	View
Broadband Dielectric Mirrors, Elliptical BDM1E-B	`BDM1E-B`	90% CA	90% CA	750 nm-1100 nm	View
Broadband Dielectric Mirrors, Elliptical BDM1E-C	`BDM1E-C`	90% CA	90% CA	1100 nm-1650 nm	View
Broadband Dielectric Mirrors, Elliptical BDM05E-A	`BDM05E-A`	90% CA	90% CA	400 nm-750 nm	View
Broadband Dielectric Mirrors, Elliptical BDM05E-B	`BDM05E-B`	90% CA	90% CA	750 nm-1100 nm	View
Broadband Dielectric Mirrors, Elliptical BDM05E-C	`BDM05E-C`	90% CA	90% CA	1100 nm-1650 nm	View
Broadband Dielectric Mirrors, Circular BDM1-A-SP	`BDM1-A-SP`	25.4 mm	90% CA	400 nm-750 nm	View
Broadband Dielectric Mirrors, Circular BDM05-A	`BDM05-A`	12.7 mm	85% CA	400 nm-750 nm	View
Broadband Dielectric Mirrors, Circular BDM1-A	`BDM1-A`	25.4 mm	90% CA	400 nm-750 nm	View
Broadband Dielectric Mirrors, Circular BDM2-A	`BDM2-A`	50.8 mm	90% CA	400 nm-750 nm	View
Broadband Dielectric Mirrors, Circular BDM05-B	`BDM05-B`	12.7 mm	90% CA	750 nm-1100 nm	View
Broadband Dielectric Mirrors, Circular BDM1-B	`BDM1-B`	25.4 mm	90% CA	750 nm-1100 nm	View
Broadband Dielectric Mirrors, Circular BDM2-B	`BDM2-B`	50.8 mm	90% CA	750 nm-1100 nm	View
Broadband Dielectric Mirrors, Circular BDM05-C	`BDM05-C`	12.7 mm	90% CA	1100 nm-1650 nm	View
Broadband Dielectric Mirrors, Circular BDM1-C	`BDM1-C`	25.4 mm	90% CA	1100 nm-1650 nm	View
Broadband Dielectric Mirrors, Circular BDM2-C	`BDM2-C`	50.8 mm	90% CA	1100 nm-1650 nm	View
Broadband Dielectric Mirrors, Circular BDM1-A-P10	`BDM1-A-P10`	25.4 mm	90% CA	400 nm-750 nm	View
Broadband Dielectric Mirrors, Circular BDM1-B-P10	`BDM1-B-P10`	25.4 mm	90% CA	750 nm-1100 nm	View
Broadband Dielectric Mirrors, Circular BDM1-C-P10	`BDM1-C-P10`	25.4 mm	90% CA	1100 nm-1650 nm	View
Broadband Dielectric Mirrors, Circular BDM1-T1-A-SP	`BDM1-T1-A-SP`	25.4 mm	90% CA	400 nm-750 nm	View
Broadband Dielectric Mirrors, Circular BDM05-UVA	`BDM05-UVA`	12.7 mm	90% CA	300 nm-750 nm	View
Broadband Dielectric Mirrors, Circular BDM1-UVA	`BDM1-UVA`	25.4 mm	90% CA	300 nm-750 nm	View
Broadband Dielectric Mirrors, Circular BDM1-UVA-P10 Current	`BDM1-UVA-P10`	25.4 mm	90% CA	300 nm-750 nm
Broadband Dielectric Mirrors, Circular BDM2-UVA	`BDM2-UVA`	50.8 mm	90% CA	300 nm-750 nm	View
