What wavelength range does Broadband Dielectric Mirrors, Circular BDM2-A support?

Broadband Dielectric Mirrors, Circular BDM2-A operates at a center wavelength of 400.0 nm.

What is the damage threshold of Broadband Dielectric Mirrors, Circular BDM2-A?

Broadband Dielectric Mirrors, Circular BDM2-A has a laser-induced damage threshold (LIDT) of 0.055 J/cm².

What are the physical dimensions of Broadband Dielectric Mirrors, Circular BDM2-A?

Broadband Dielectric Mirrors, Circular BDM2-A dimensions: Diameter: 50.8 mm. Thickness: 12.0 mm.

What documentation is available for Broadband Dielectric Mirrors, Circular BDM2-A?

The following documents are available for download on the Broadband Dielectric Mirrors, Circular BDM2-A product page: Spec sheet. CAD drawing.Visit the Documents tab for direct download links.

Is Broadband Dielectric Mirrors, Circular BDM2-A available for purchase?

Yes, request a quote for pricing and lead time at WaveQuanta.Contact our sales team for current availability and volume pricing.

WaveQuanta

Broadband Dielectric Mirrors, Circular BDM2-A

Name: Broadband Dielectric Mirrors, Circular BDM2-A
Brand: WaveQuanta
SKU: BDM2-A
Price: 296.19 SGD
Availability: InStock

BDM2-A

$296.19

In Stock

Key Specifications

Wavelength 400.0nm

Diameter 50.8mm

LIDT 0.055J/cm²

Reflectance 99.0%

Request Quote

Design Tools

Gaussian Beam Calculator Model beam propagation through your optical system LIDT Calculator Verify damage threshold for your laser parameters Wavelength \u2194 Wavenumber Convert between wavelength, frequency, and energy

View all 49 calculators →

RoHS REACH

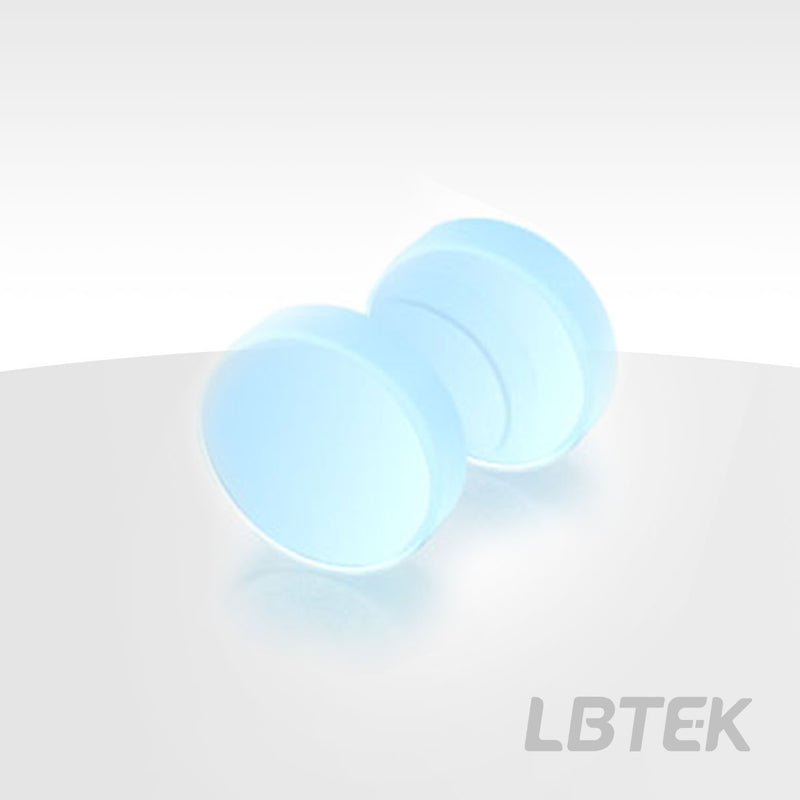

Broadband Dielectric Mirrors, Circular — Model BDM2-A

Operating wavelength 400 nm-750 nm, Ø50.8 mm, substrate UV Fused Silica.

Product Description

Optical Material: UV Fused Silica
Application: Beam Deflection
Operating Wavelength: 300 nm-1650 nm

Reflectors are used to change the direction of light beam emission. LBTEK's fused silica broadband dielectric coating mirrors achieve a reflectivity of over 99% within the working wavelength range. To meet customers' diverse size requirements, LBTEK offers UV fused silica dielectric mirrors in various shapes including round, oval, square, and D-shaped. LBTEK also provides customized reflector services with other materials and coating systems. For customization needs, please contact our technical support.

Broadband Dielectric Mirrors, Circular

Working Wavelength: 300 nm-750 nm, 400 nm-750 nm, 750 nm-1100 nm, 1100 nm-1650 nm
Application: Deflecting Optical Path
Optical Material: UV Fused Silica

Clear Aperture	90% CA
Thickness	12 mm
Damage Threshold	0.055J/cm2@515nm, 290fs, 100Hz, Ø10.72μm (100 Pulses)
Reflectance (AR)	Ravg>99%a(45°AOI)
Diameter Tolerance	+0.00/-0.10 mm
Thickness Tolerance	±0.25 mm
Clear Aperture	90% CA
Operating Wavelength	400 nm-750 nm
Reflectance	Ravg>99%a(45°AOI)
Thickness	12 mm
Diameter	50.8 mm
Substrate Material	UV Fused Silica
Damage Threshold	0.055J/cm2@515nm, 290fs, 100Hz, Ø10.72μm (100 Pulses)

Low damage threshold detected (0.055 J/cm²). For high-power applications, consider WaveQuanta premium IBS-coated optics with enhanced damage resistance.

Specification Sheet PDF — Download

CAD Drawing Download

3D Model (STL) STL — Download

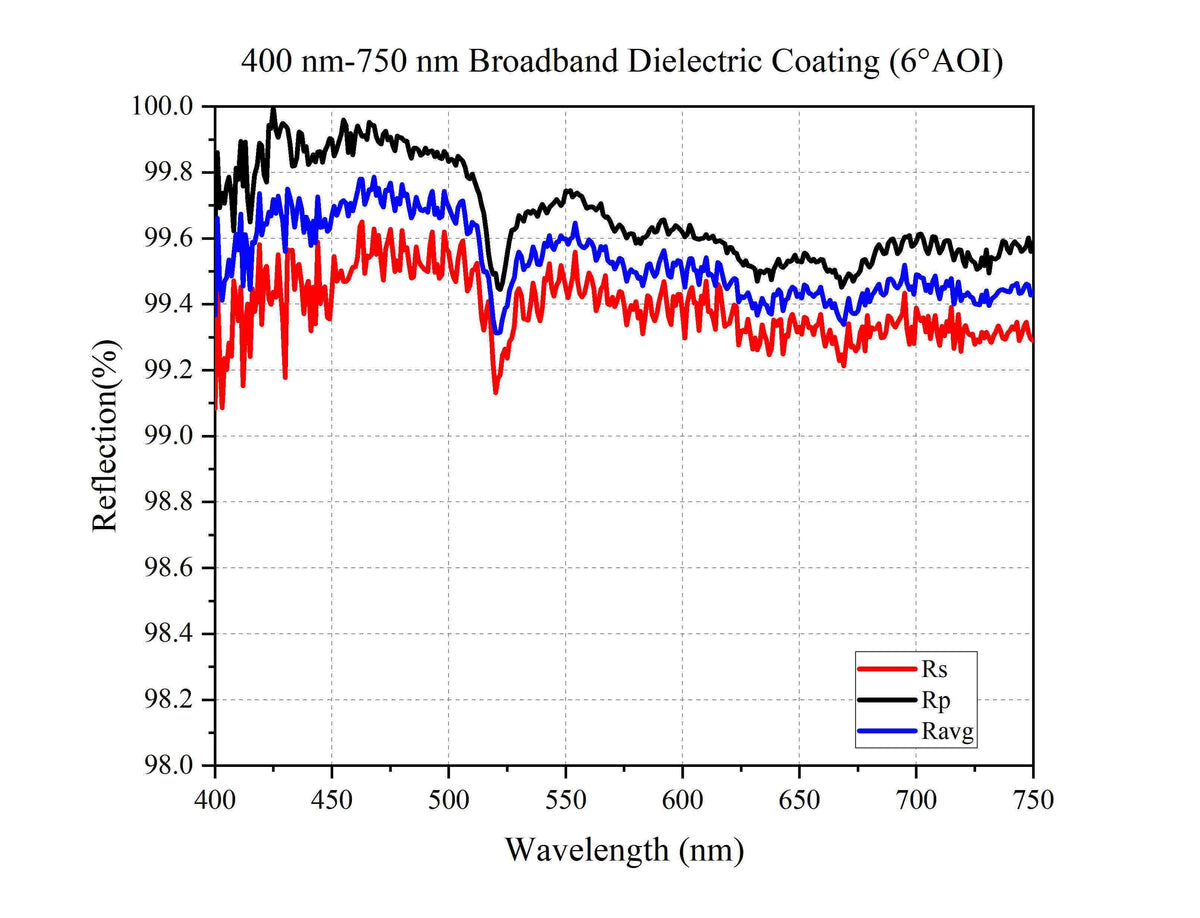

Curve - 400 nm-750 nm Broadband Dielectric Coating (6°AOI)

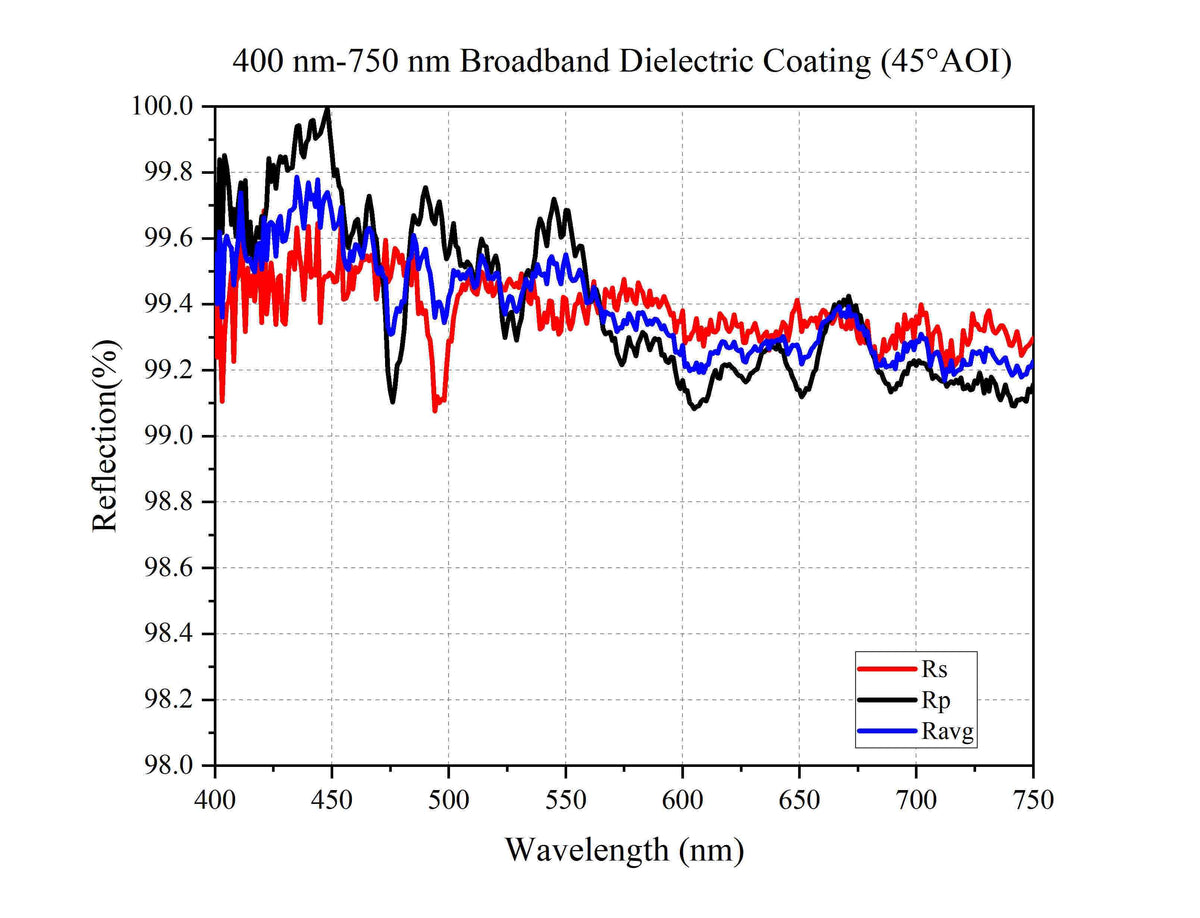

Curve - 400 nm-750 nm Broadband Dielectric Coating (45°AOI)

Product Family: Broadband Dielectric Mirrors, UV Fused Silica, Operating Wavelength: 300 nm-1650 nm (31 variants)

Product ▴▾	SKU	Size ▴▾	Clear Aperture ▴▾	Operating Wavelength ▴▾
Broadband Dielectric Mirrors, D-shaped BDM1D-A	`BDM1D-A`	90% CA	90% CA	400 nm-750 nm	View
Broadband Dielectric Mirrors, D-shaped BDM1D-B	`BDM1D-B`	90% CA	90% CA	750 nm-1100 nm	View
Broadband Dielectric Mirrors, D-shaped BDM1D-C	`BDM1D-C`	90% CA	90% CA	1100 nm-1650 nm	View
Broadband Dielectric Mirrors, Square BDM1S-A	`BDM1S-A`	90% CA	90% CA	400 nm-750 nm	View
Broadband Dielectric Mirrors, Square BDM1S-B	`BDM1S-B`	90% CA	90% CA	750 nm-1100 nm	View
Broadband Dielectric Mirrors, Square BDM1S-C	`BDM1S-C`	90% CA	90% CA	1100 nm-1650 nm	View
Broadband Dielectric Mirrors, Square BDMR-39×30-A-SP	`BDMR-39×30-A-SP`	90% CA	90% CA	400 nm-750 nm	View
Broadband Dielectric Mirrors, Elliptical BDM1E-A	`BDM1E-A`	90% CA	90% CA	400 nm-750 nm	View
Broadband Dielectric Mirrors, Elliptical BDM1E-B	`BDM1E-B`	90% CA	90% CA	750 nm-1100 nm	View
Broadband Dielectric Mirrors, Elliptical BDM1E-C	`BDM1E-C`	90% CA	90% CA	1100 nm-1650 nm	View
Broadband Dielectric Mirrors, Elliptical BDM05E-A	`BDM05E-A`	90% CA	90% CA	400 nm-750 nm	View
Broadband Dielectric Mirrors, Elliptical BDM05E-B	`BDM05E-B`	90% CA	90% CA	750 nm-1100 nm	View
Broadband Dielectric Mirrors, Elliptical BDM05E-C	`BDM05E-C`	90% CA	90% CA	1100 nm-1650 nm	View
Broadband Dielectric Mirrors, Circular BDM1-A-SP	`BDM1-A-SP`	25.4 mm	90% CA	400 nm-750 nm	View
Broadband Dielectric Mirrors, Circular BDM05-A	`BDM05-A`	12.7 mm	85% CA	400 nm-750 nm	View
Broadband Dielectric Mirrors, Circular BDM1-A	`BDM1-A`	25.4 mm	90% CA	400 nm-750 nm	View
Broadband Dielectric Mirrors, Circular BDM2-A Current	`BDM2-A`	50.8 mm	90% CA	400 nm-750 nm
Broadband Dielectric Mirrors, Circular BDM05-B	`BDM05-B`	12.7 mm	90% CA	750 nm-1100 nm	View
Broadband Dielectric Mirrors, Circular BDM1-B	`BDM1-B`	25.4 mm	90% CA	750 nm-1100 nm	View
Broadband Dielectric Mirrors, Circular BDM2-B	`BDM2-B`	50.8 mm	90% CA	750 nm-1100 nm	View
Broadband Dielectric Mirrors, Circular BDM05-C	`BDM05-C`	12.7 mm	90% CA	1100 nm-1650 nm	View
Broadband Dielectric Mirrors, Circular BDM1-C	`BDM1-C`	25.4 mm	90% CA	1100 nm-1650 nm	View
Broadband Dielectric Mirrors, Circular BDM2-C	`BDM2-C`	50.8 mm	90% CA	1100 nm-1650 nm	View
Broadband Dielectric Mirrors, Circular BDM1-A-P10	`BDM1-A-P10`	25.4 mm	90% CA	400 nm-750 nm	View
Broadband Dielectric Mirrors, Circular BDM1-B-P10	`BDM1-B-P10`	25.4 mm	90% CA	750 nm-1100 nm	View
Broadband Dielectric Mirrors, Circular BDM1-C-P10	`BDM1-C-P10`	25.4 mm	90% CA	1100 nm-1650 nm	View
Broadband Dielectric Mirrors, Circular BDM1-T1-A-SP	`BDM1-T1-A-SP`	25.4 mm	90% CA	400 nm-750 nm	View
Broadband Dielectric Mirrors, Circular BDM05-UVA	`BDM05-UVA`	12.7 mm	90% CA	300 nm-750 nm	View
Broadband Dielectric Mirrors, Circular BDM1-UVA	`BDM1-UVA`	25.4 mm	90% CA	300 nm-750 nm	View
Broadband Dielectric Mirrors, Circular BDM1-UVA-P10	`BDM1-UVA-P10`	25.4 mm	90% CA	300 nm-750 nm	View
Broadband Dielectric Mirrors, Circular BDM2-UVA	`BDM2-UVA`	50.8 mm	90% CA	300 nm-750 nm	View
