Coaxial system adapter board CAD-02
CAD-02$45.73
In Stock
Design Tools
Photonics Calculators
Explore 49 free online calculators for photonics design
Unit Converters
Convert between wavelength, frequency, power, and more
View all 49 calculators →
Complete Your Setup
RoHS
REACH
Coaxial system adapter board — Model CAD-02
✔ In Stock — Ships Today

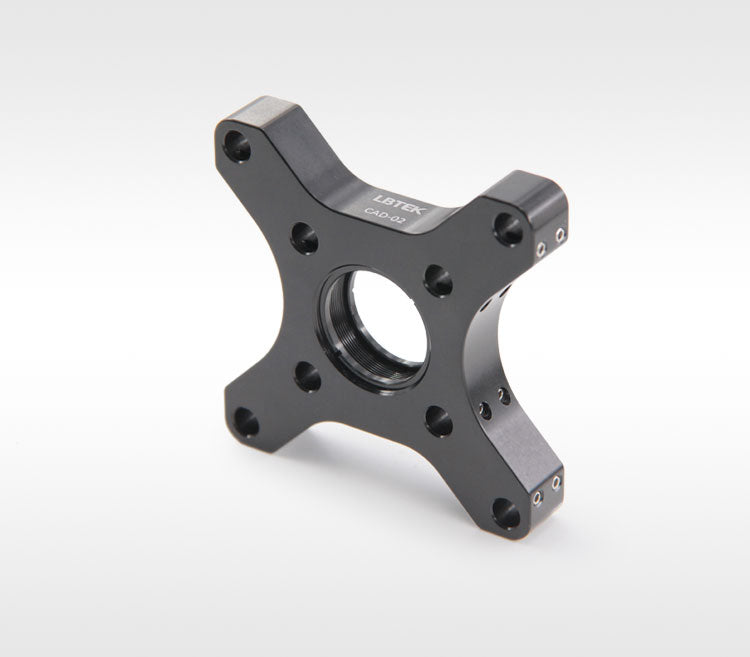

The LBTEK coaxial adapter plate is designed for connecting 30mm and 60mm components in coaxial systems. It features a central SM1 threaded-through hole, comes with two SM1R retaining rings, and can accommodate Ø25.4 mm optical components with a maximum thickness of 8.5 mm. Includes one M4 threaded hole for mounting posts. Each coaxial rod through-hole is equipped with two M3 set screws on the side, compatible with a 1.5 mm hex wrench.
Key Features
- Material: 6061-T6 aluminum alloy
- SM1 threaded through hole, includes 2 SM1R retaining rings
- Compatible with 30 mm and 60 mm coaxial systems
Application
Post Bracket Mounting Method
No specifications available for this product.
CAD Drawing
Download
Click and drag to rotate. Scroll to zoom.
Product Family: Coaxial system adapter board (3 variants)
| Product | SKU | Size | Clear Aperture | Operating Wavelength | |
|---|---|---|---|---|---|
| Coaxial system adapter board CP16-OPM |
CP16-OPM
| — | — | — | View |
| Coaxial system adapter board QCAD-02 |
QCAD-02
| — | — | — | View |
| Coaxial system adapter board CAD-02 Current |
CAD-02
| — | — | — |
