Coaxial system adapter board — Model QCAD-02
✔ In Stock — Ships Today

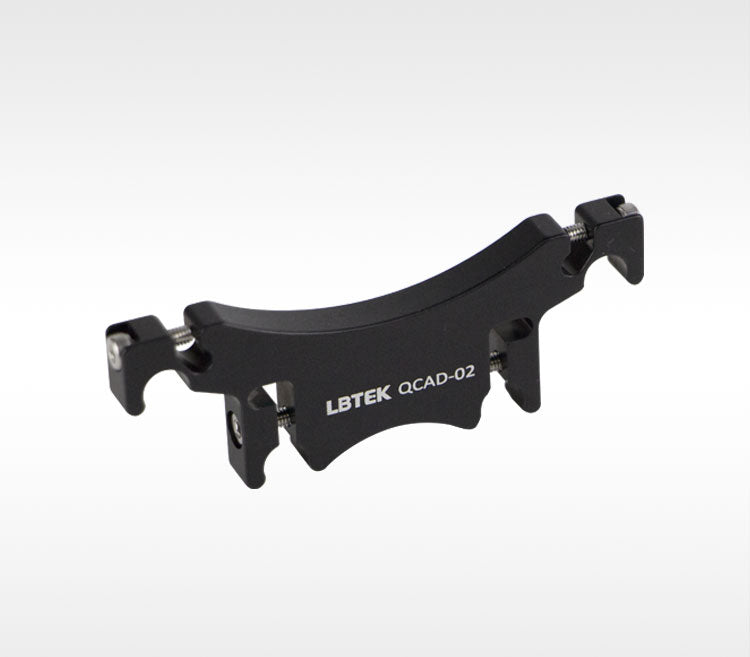

The LBTEK quick-release coaxial system adapter plate is designed for embedding 30 mm coaxial system components within a 60 mm coaxial system. The quick-release design enables convenient installation and removal without affecting the remaining components in the system. Each coaxial rod mounting hole is secured with an M2.5 screw, compatible with a 2.0 mm hex wrench.
Key Features
- Material: 6061-T6 aluminum alloy
- Compatible with 30 mm and 60 mm coaxial systems
- Quick-release design for ease of installation and removal
Application
Embed the 30 mm coaxial system into the 60 mm coaxial system
No specifications available for this product.
CAD Drawing
Download
Click and drag to rotate. Scroll to zoom.
Product Family: Coaxial system adapter board (3 variants)
