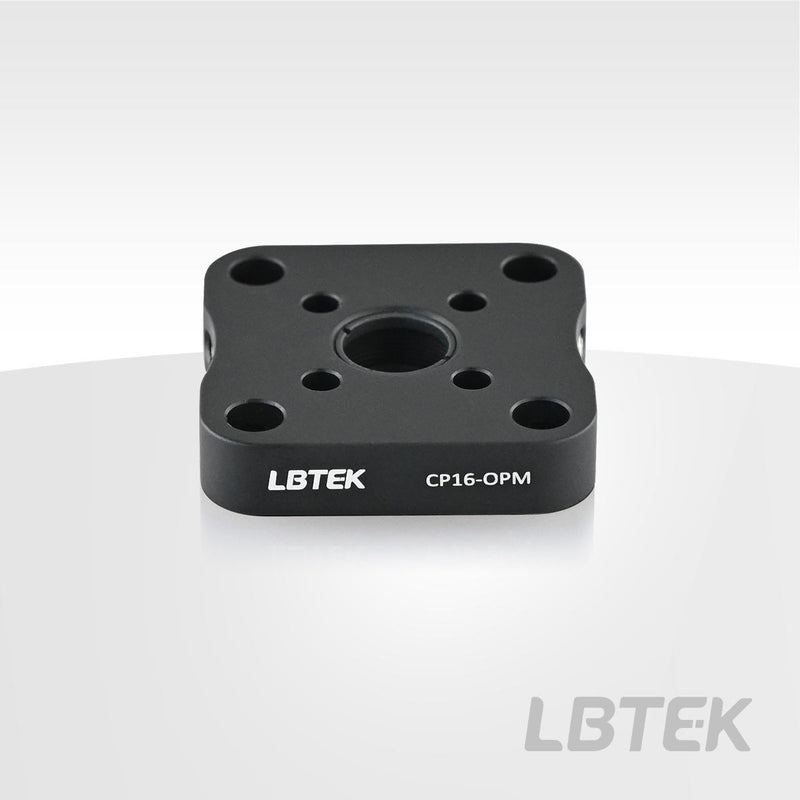

Coaxial system adapter board — Model CP16-OPM
✔ In Stock — Ships Today
The LBTEK coaxial adapter plate is suitable for connecting 30mm and 16mm components in coaxial systems. It features a central SM05 threaded-through hole with two SM05R retaining rings, accommodating Ø12.7 mm optical components with a maximum thickness of 5.6 mm. Both the Ø4 mm MOP16 coaxial rod and Ø6 mm MOP coaxial rod through-holes are equipped with an M4 set screw on the side, compatible with a 2 mm hex wrench. The CP16-OPM coaxial rod through-hole has minimal tolerance, ensuring both 30 mm and 16 mm coaxial components are centered on the SM05 central hole.
Key Features
- Compatible with MOP and MOP16 series coaxial rods
- SM05 threaded-through hole, includes 2 SM05R retaining rings
- Compatible with 30 mm and 16 mm coaxial systems
Application
CP16-OPM connects 30 mm and 16 mm coaxial plates
| Specifications | 30 mm to 16 mm coaxial |
| Effective Aperture | Ø 11.4 mm |
| Adjustment accuracy | 8 |
| Material | 6061-T6 aluminum alloy |
| Surface Treatment | Black anodized |
| Maximum applicable thickness of optical components | 5.6 mm |
| Center threaded hole | SM05 threaded-through hole, includes 2 SM05R retaining rings. |
| Weight | 37 g |
CAD Drawing
Download
Click and drag to rotate. Scroll to zoom.
Product Family: Coaxial system adapter board (3 variants)
| Product | SKU | Size | Clear Aperture | Operating Wavelength | |
|---|---|---|---|---|---|
| Coaxial system adapter board CP16-OPM Current |
CP16-OPM
| — | — | — | |
| Coaxial system adapter board QCAD-02 |
QCAD-02
| — | — | — | View |
| Coaxial system adapter board CAD-02 |
CAD-02
| — | — | — | View |
