Compact Five-Axis Positioning Stages and Accessories LDI09
LDI09$80.67
In Stock
Design Tools
Photonics Calculators
Explore 49 free online calculators for photonics design
Unit Converters
Convert between wavelength, frequency, power, and more
View all 49 calculators →
RoHS
REACH
The Compact Five-Axis Positioning Stages and Accessories LDI09 from WaveQuanta is a high-performance Stages Actuators designed for micrometer-precision optical alignment and positioning. Available from stock for immediate shipment. Sourced directly from WaveQuanta, this product meets the high standards required for scientific research and precision photonics applications.
✔ In Stock — Ships Today

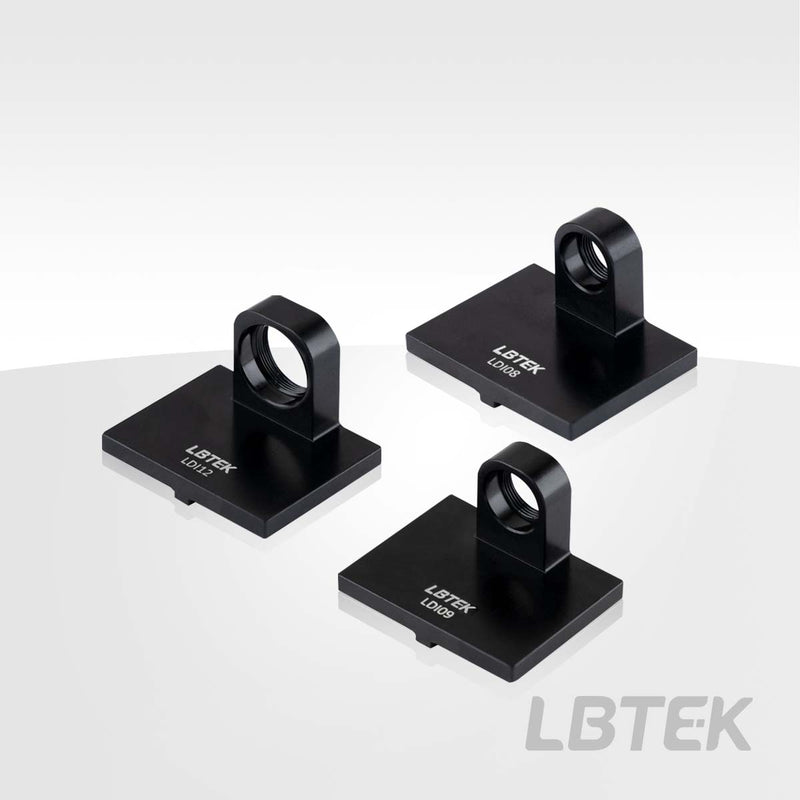

The molded aspheric lens mount from LBTEK features female (M8×0.5, M9×0.5, or M12×0.5) for secure aspheric lens installation, with a boss design that aligns with translation stage top plate grooves for rapid positioning. The mount can be secured using optional FF05 retaining clamps and maintains a 12.5 mm optical axis height above the translation stage.
Key Features
- M8 x 0.5, M9 x 0.5 or M12 x 0.5 female;
- Suitable for molded aspheric lenses;
- Optical axis height 12.5 mm;
Application
Place the LDI12 and aspheric lens on the PYXYZ five-axis displacement stage along with the OFB02-FPC fiber holder.
| Lead Time | In Stock |
No CAD drawings available for this product.
