Compact Five-Axis Positioning Stages and Accessories LDI09B
LDI09B$80.67
In Stock
Design Tools
Photonics Calculators
Explore 49 free online calculators for photonics design
Unit Converters
Convert between wavelength, frequency, power, and more
View all 49 calculators →
RoHS
REACH
The Compact Five-Axis Positioning Stages and Accessories LDI09B from WaveQuanta is a high-performance Stages Actuators designed for micrometer-precision optical alignment and positioning. Available from stock for immediate shipment. Sourced directly from WaveQuanta, this product meets the high standards required for scientific research and precision photonics applications.
✔ In Stock — Ships Today

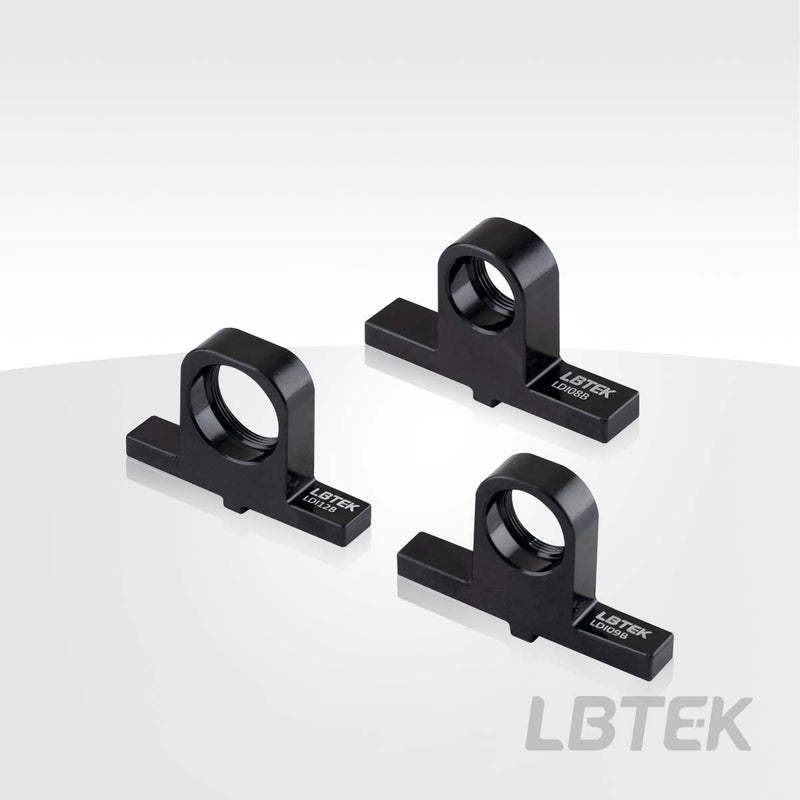

The thin-profile molded aspheric lens mount from LBTEK is an ultra-low-profile mounting solution designed for installing lenses and optical components, featuring female (M8×0.5, M9×0.5, or M12×0.5) to enable back-to-back mounting of molded aspheric lenses. The mount includes a boss compatible with the groove of the translation stage top plate for quick positioning. The mount offers flexible fixation options using either FF05 retaining clamps or AC270M adapter clamping plates, with its optical axis positioned 12.5 mm above the translation stage surface.
Key Features
- M8 x 0.5, M9 x 0.5 or M12 x 0.5 female;
- Allowing back-to-back lens mounting;
- Designed for use with molded aspheric lenses;
- Only 6 mm thickness;
- Optical axis height 12.5 mm;
Application
The AC270M adjustment plate acts on two thin molded aspheric lens mounts to achieve tight coupling.
| Lead Time | In Stock |
No CAD drawings available for this product.
Product Family: Compact There-Axis Translation Stages (10 variants)
| Product | SKU | Size | Clear Aperture | Operating Wavelength | |
|---|---|---|---|---|---|
| Compact There-Axis Translation Stages AP60-60 |
AP60-60
| — | — | — | View |
