Compact There-Axis Translation Stages AP60-60
AP60-60$58.89
In Stock
Design Tools
Photonics Calculators
Explore 49 free online calculators for photonics design
Unit Converters
Convert between wavelength, frequency, power, and more
View all 49 calculators →
RoHS
REACH
The Compact There-Axis Translation Stages AP60-60 from WaveQuanta is a high-performance Stages Actuators designed for micrometer-precision optical alignment and positioning. Available from stock for immediate shipment. Sourced directly from WaveQuanta, this product meets the high standards required for scientific research and precision photonics applications.
✔ In Stock — Ships Today

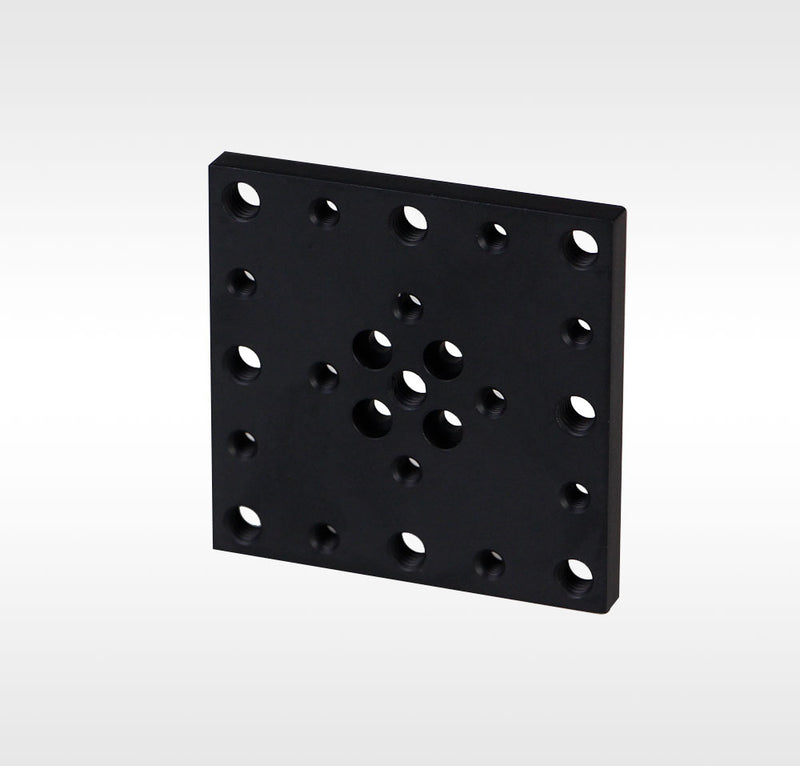

The adapter plate from LBTEK can be used to replace the top plate of a multi-axis translation stage. The AP60-60 adapter plate features numerous M6 and M4 tapped holes, enabling compatibility with a wider range of components on the stage. The M3 countersunk holes enable rapid installation to the stage.
Key Features
- Working area 60 mm × 60 mm
- Integrated with multiple M4/M3 tapped holes
- Suitable for multi-Axis translation stage
Application
The AP60-60 adapter plate is installed on a multi-axis translation stage.
| Material | 6061-T6 aluminum alloy |
| Surface Treatment | Black anodized |
| Thickness | M3 |
| Dimensions | 60 mm×60 mm×6 mm |
| Weight | 0.05 kg |
| Applicable optical element diameter | M4/M6 |
| Hex Key Wrenches Included | M3×6 Socket Head Cap Screw ×4 |
| Working area | 60 mm×60 mm |
