Compact There-Axis Translation Stages LS60G-XYZ

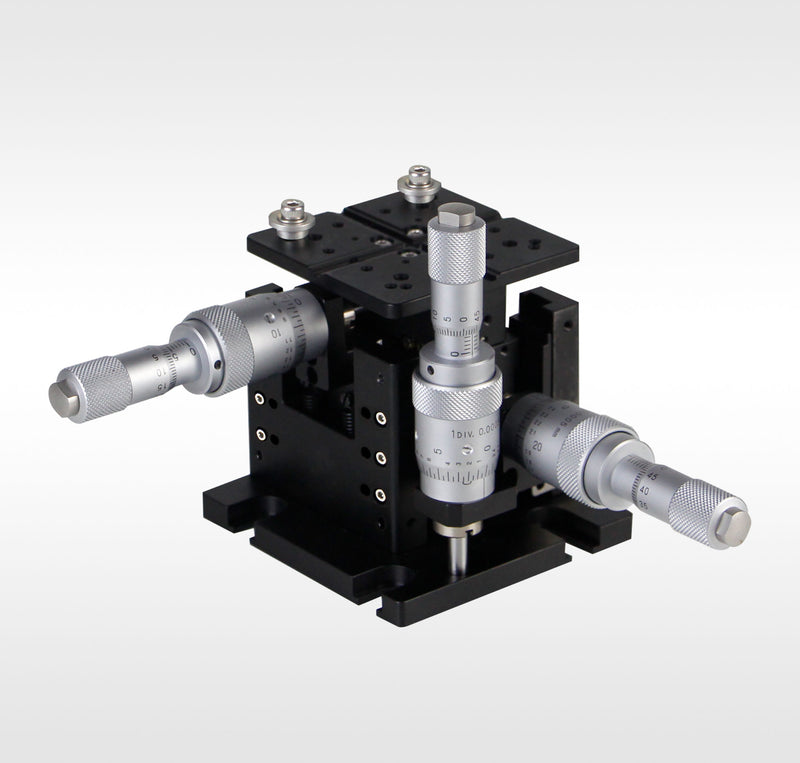

LBTEK Compact Three-Axis Translation Stage offers a travel range of 13 mm in the X, Y, and Z axes, driven by Mitutoyo differential micrometers. The coarse adjustment provides a travel of 0.5 mm per revolution with a resolution of 10 μm, while the fine adjustment offers a travel of 0.025 mm per revolution with a minimum reading (resolution) of 0.0005 mm (0.5 μm). The stage surface measures 60 mm × 60 mm and features a cross groove at the center for quick alignment of accessories, with a groove width of 3 mm. It includes M2, M3, and M4 threaded holes for easy expansion of additional components. The internal guide structure utilizes crossed roller guides, ensuring high positioning accuracy and rigidity while supporting a load of up to 3 kg. Locking screws are provided on the side for securing adjustments, offering two locking methods: if space is limited, use a hex wrench to tighten the screw next to the micrometer; if space permits, use the included three extended screws for locking, which are sufficiently long and feature knurling for easier operation. The bottom is equipped with M6 mounting holes and slots, allowing installation on optical tables and breadboards.
