Compact There-Axis Translation Stages LS60-XYZ
LS60-XYZ$2,124.60
In Stock
Design Tools
Photonics Calculators
Explore 49 free online calculators for photonics design
Unit Converters
Convert between wavelength, frequency, power, and more
View all 49 calculators →
RoHS
REACH
The Compact There-Axis Translation Stages LS60-XYZ from WaveQuanta is a high-performance Stages Actuators designed for micrometer-precision optical alignment and positioning. Available from stock for immediate shipment. Sourced directly from WaveQuanta, this product meets the high standards required for scientific research and precision photonics applications.
✔ In Stock — Ships Today

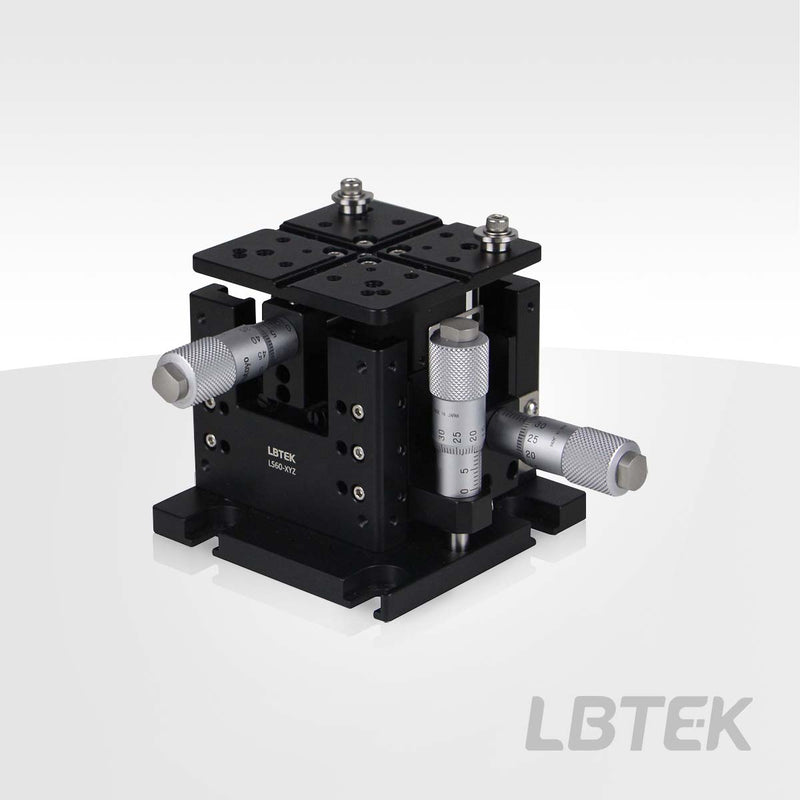

The compact three-axis translation stage from LBTEK offers 10 mm travel in the X-axis and 13 mm travel in both Y and Z axes, driven by Mitutoyo micrometer heads with 0.5 mm travel per revolution and a minimum resolution of 10 μm. Featuring a 60 mm×60 mm platform with a central cross groove (3 mm width) for quick accessory alignment, the stage includes M2, M3, and M4 tapped holes for component expansion. Its internal cross-roller rail mechanism ensures high positioning accuracy and rigidity while supporting 3 kg loads. The stage includes side locking screws with two tightening options: hex-key tightening of screws near the micrometers for confined spaces, or using the included three knurled extended-length screws for easier operation in open areas. M6 mounting slots on the base allow installation on optical tables and breadboards.
Key Features
- Stage size 60 mm × 60 mm;
- X-axis travel 10 mm, Y-axis and Z-axis travel 13 mm;
- Adjustment resolution 10 μm;
Application
The objective lens is mounted on the compact three-axis translation stage via the adapter FMA-RMSA.
| Lead Time | In Stock |
No CAD drawings available for this product.
Product Family: Compact There-Axis Translation Stages (10 variants)
