Compact Five-Axis Positioning Stages and Accessories PYXYZ
PYXYZ$544.78
In Stock
Design Tools
Photonics Calculators
Explore 49 free online calculators for photonics design
Unit Converters
Convert between wavelength, frequency, power, and more
View all 49 calculators →
RoHS
REACH
The Compact Five-Axis Positioning Stages and Accessories PYXYZ from WaveQuanta is a high-performance Stages Actuators designed for micrometer-precision optical alignment and positioning. Available from stock for immediate shipment. Sourced directly from WaveQuanta, this product meets the high standards required for scientific research and precision photonics applications.
✔ In Stock — Ships Today

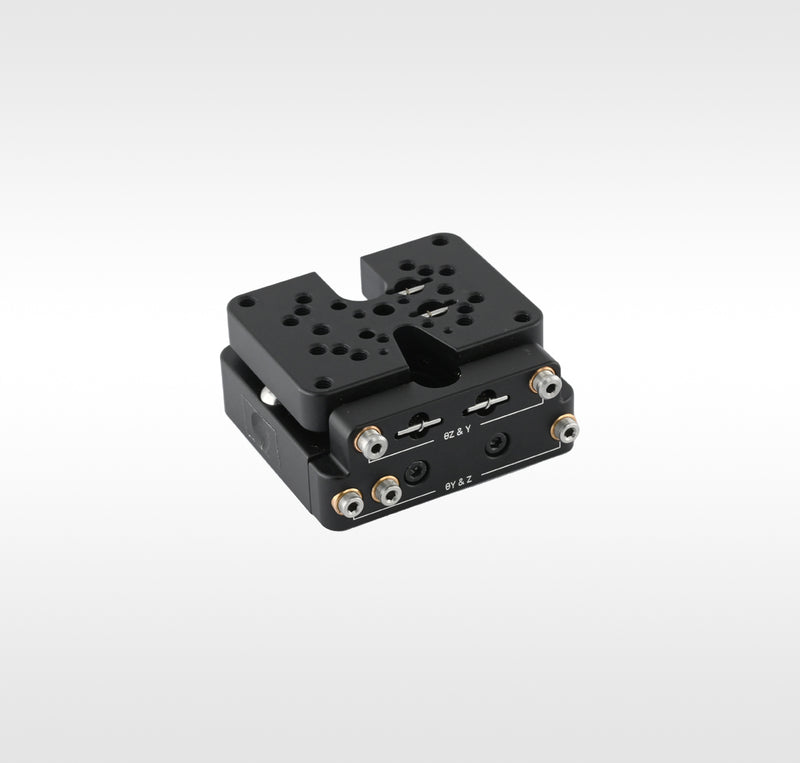

The LBTEK compact five-axis translation stage features a compact design, with five threaded adjusters mounted on one side panel allowing ±3.5° pitch, ±5° yaw, and 3 mm displacement in X/Y/Z axes. Among them, two threaded adjusters jointly control pitch and Z-axis, another two control yaw and Y-axis, while a single adjuster controls the X-axis. The stage's top plate is equipped with M4/M3 array threaded holes and a central M4 countersunk hole (reverse mounting), allowing M4 cap head screws to be installed from the bottom for securing other components. These pre-drilled holes accommodate accessories like the CA-3 clamping arm and MT-FLF1S mounting base. The stage base includes two M6 mounting slots for installation on optical tables or breadboards using M6 cap head screws. Alternatively, it can be elevated and adapted to optical platforms or breadboards using PYXYZ-A or PYXYZ-B adapter bases.
Key Features
- Installation platform height 27.3 mm
- Pitch adjustment range ±3.5°, yaw adjustment range ±5°, X/Y/Z axis adjustment range 3 mm
- Screw assembly adjustment accuracy 0.25 mm/revolution
Application
The MT-FLF1S stainless steel mounting base is installed on the PYXYZ five-axis translation stage.
