The Compact Five-Axis Positioning Stages and Accessories PYXYZ-B from WaveQuanta is a high-performance Stages Actuators designed for micrometer-precision optical alignment and positioning. Available from stock for immediate shipment. Sourced directly from WaveQuanta, this product meets the high standards required for scientific research and precision photonics applications.
ā In Stock ā Ships Today

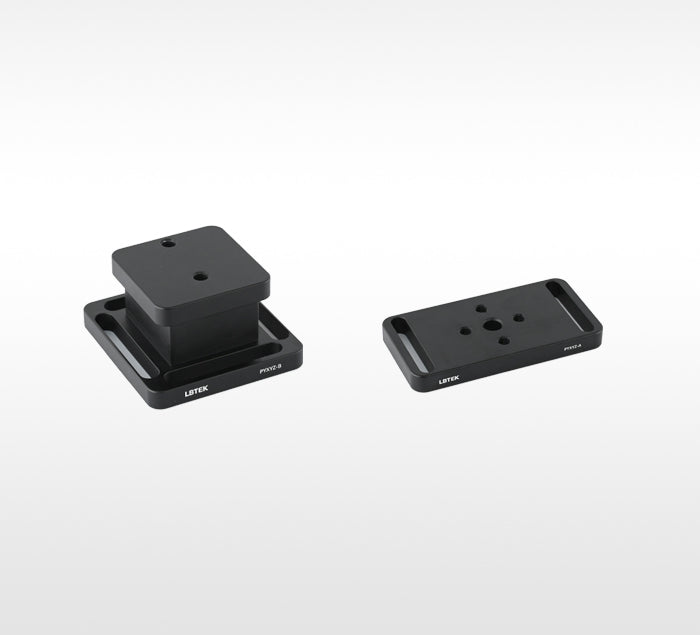

The LBTEK mounting base is used for adapter height extension of the PYXYZ five-axis stage. After adapter installation, the PYXYZ-A achieves an overall height of 36.5 mm, while the PYXYZ-B reaches 60.3 mm.
The PYXYZ-A features four M6 threaded holes in the center for connecting to the PYXYZ stage, with a central 8 mm through-hole designed for M4 screws to mount onto the PYXYZ stage surface. This allows installation of other accessories with M4 threaded holes, such as mounting bases or rods. Additionally, it includes two M6 mounting slots on the side for attachment to optical tables or breadboards.
The PYXYZ-B is equipped with two M6 threaded holes on top for PYXYZ stage connection and four M6 mounting slots on the sides for secure installation onto optical tables or breadboards.
Key Features
- Material: 6061-T6 aluminum alloy
- PYXYZ-A height 9.2 mm, PYXYZ-B height 33 mm
- Both with M6 mounting holes/slots
Application
The PYXYZ compact five-axis translation stage is mounted on the PYXYZ-A.
| Main material | 6061-T6 aluminum alloy |
| Surface Treatment | Black anodized |
| Mounting Hole Specifications/Quantity | M6 mounting holes/slots, 4 pieces |
| height | 33 mm |
