Compact Five-Axis Positioning Stages and Accessories PYXYZ-KIT
PYXYZ-KIT$715.06
In Stock
Design Tools
Photonics Calculators
Explore 49 free online calculators for photonics design
Unit Converters
Convert between wavelength, frequency, power, and more
View all 49 calculators →
RoHS
REACH
The Compact Five-Axis Positioning Stages and Accessories PYXYZ-KIT from WaveQuanta is a high-performance Stages Actuators designed for micrometer-precision optical alignment and positioning. Available from stock for immediate shipment. Sourced directly from WaveQuanta, this product meets the high standards required for scientific research and precision photonics applications.
✔ In Stock — Ships Today

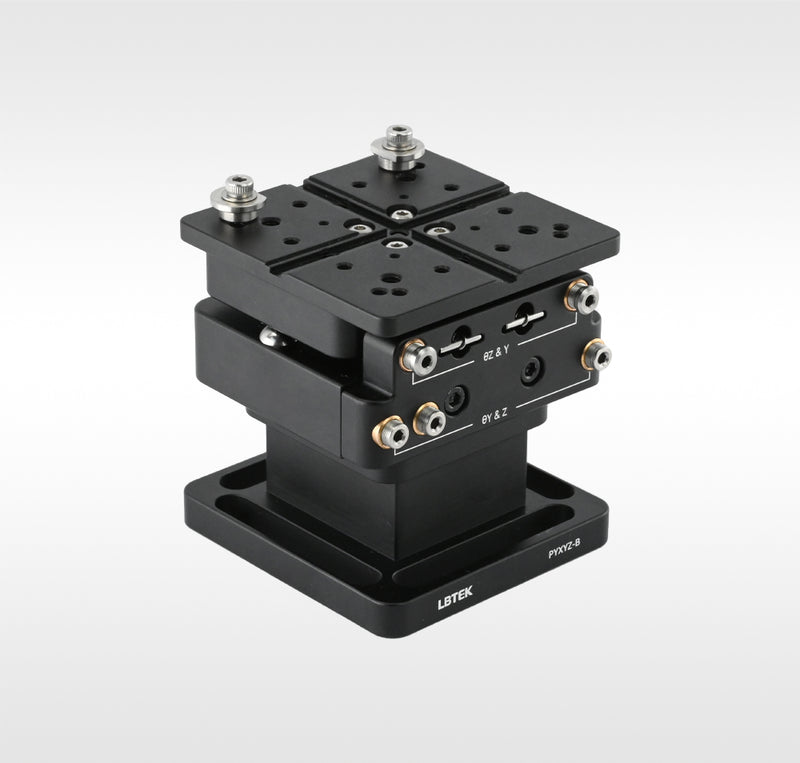

LBTEK Compact Five-Axis Translation Stage Assembly, featuring five threaded adjusters mounted on one side panel for adjustable pitch ±3.5°, yaw ±5°, and X/Y/Z-axis displacement of 3 mm. Among them, two threaded adjusters jointly control pitch and Z-axis, two threaded adjusters jointly control yaw and Y-axis, and a single threaded adjuster controls the X-axis. The top plate adopts the same design as the LS60-XYZ, equipped with M2, M3, M4 threaded holes and 3 mm alignment slots, allowing the installation of additional components. It can be used in conjunction with the LS60-XYZ for fiber coupling. The base includes four M6 mounting slots for installation onto optical tables or breadboards using M6 socket head cap screws.
Key Features
- Installation platform height 64.3 mm
- Pitch adjustment range ±3.5°, Yaw adjustment range ±5°, X/Y/Z axis adjustment range 3 mm
- Thread pair adjustment accuracy 0.25 mm/revolution
Application
Coupling with the compact three-axis translation stage LS60-XYZ for fiber optic alignment
| Main material | 6061-T6 aluminum alloy |
| Attribute 2651 | ±3.5° |
| Attribute 2652 | ±5° |
| Attribute 2653 | 3 mm |
| Attribute 395 | 64.3 mm |
| Mounting Hole Specifications/Quantity | M6 mounting holes/slots, 4 pieces |
| Table hole specification | M2/M3/M4 threaded hole |
| Hex Key Wrenches Included | 2 M6×10 pan head screws, 1 2 mm and 5 mm hex wrench |
No CAD drawings available for this product.
