Five-axis fiber optic coupler mounting base and wall panel FOPM-9B
FOPM-9B$28.63
In Stock
Design Tools
Photonics Calculators
Explore 49 free online calculators for photonics design
Unit Converters
Convert between wavelength, frequency, power, and more
View all 49 calculators →
Complete Your Setup
RoHS
REACH

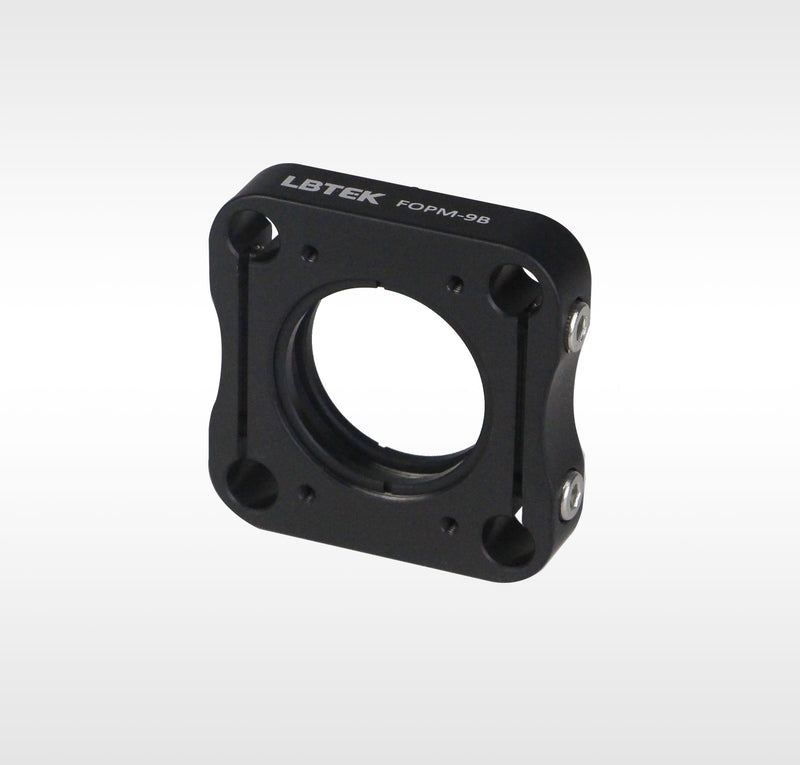

The LBTEK 30 mm Flexible Optical Post Mount FOPM-9B is designed to center a five-axis fiber optic coupler in a 30 mm coaxial system. A 6 mm diameter post can be inserted into any of the four coaxial holes included with the adapter, as shown in the right figure. Additionally, the adapter comes with four necessary M2 hex socket screws for securing the five-axis fiber optic coupler to the adapter. Its coaxial plate features SM1 internal threads, making it compatible with our lens tube series products.
- Four M2 threaded holes for securing a five-axis fiber coupler
- Compatible with 30 mm coaxial systems
- Centered SM1 thread, included SM1R retaining ring
No specifications available for this product.
No documents available for this product.
No CAD drawings available for this product.
