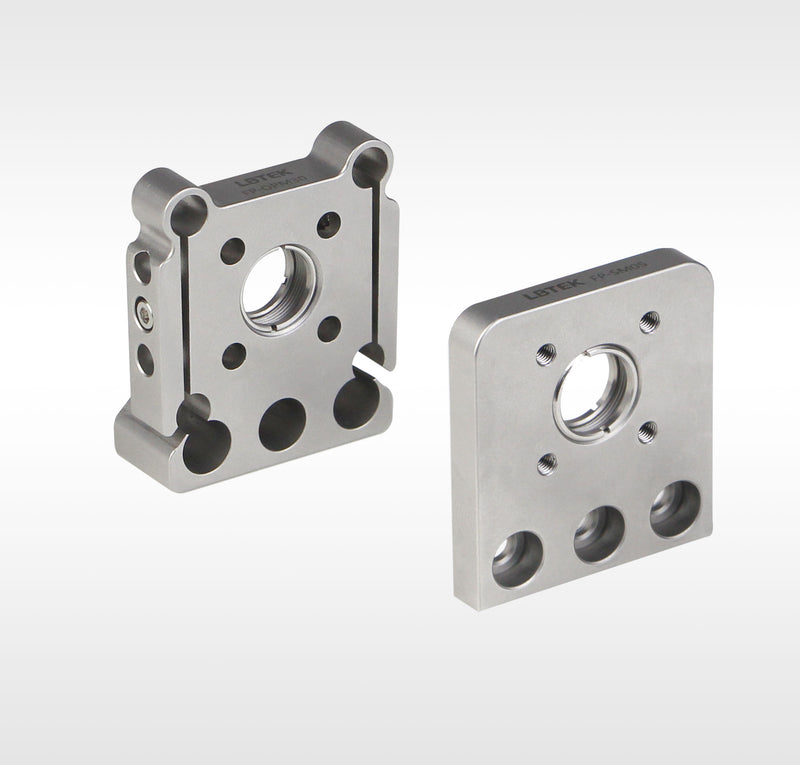

Five-axis fiber optic coupler mounting base and wall panel FP-SM05

LBTEK Fiber Coupler Wall Panel integrates fiber-optic coupling systems with coaxial systems. It mounts on the end face of fiber coupler mounts using two included M4 cheese head screws. FP-OPM30 supports 16mm and 30mm coaxial systems: 16mm ports lock via set screws, 30mm ports use flexible locking with cheese head screws, both requiring 2mm hex wrenches. FP-SM05 has four M3 threaded holes for 16mm coaxial installation. Both models feature central SM05-threaded holes for SM05 sleeve mounting. FP-OPM30 includes two SM05RS retaining rings; FP-SM05 includes one. When combining systems, ensure fiber coupling support to prevent coaxial rod torque. Direct optical platform mounting works for low coaxial systems. Elevated coaxial setups require OP1-XXB extension rods via M4/M6 threaded holes to stabilize the fiber coupler mount.

• Five-axis fiber coupler mount end face-mounted assembly
• FP-OPM30 compatible with 16 mm and 30 mm coaxial systems
• FP-SM05 compatible with 16 mm coaxial system
• All centers feature SM05 threads for mounting SM05 sleeves
