Five-axis fiber optic coupler mounting base and wall panel HNLA1

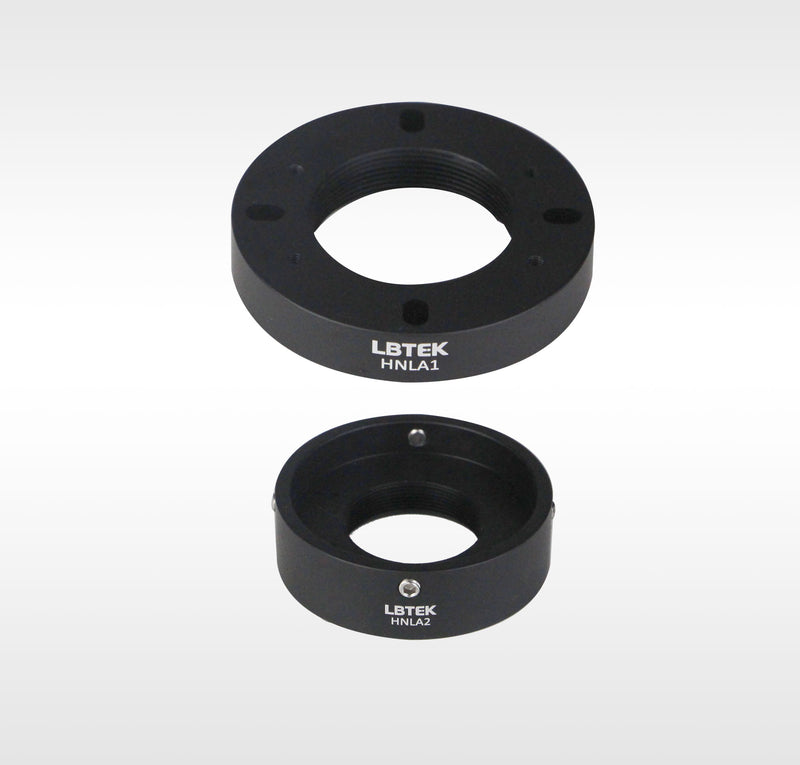

The LBTEK Helium-Neon Laser Adapter allows a five-axis fiber coupler to be directly mounted onto the front panel of the LGK series helium-neon laser and the HNL-2mW helium-neon laser. The HNLA1 adapter features four M2 threaded holes and four M3 slotted holes, and comes with the necessary M2 and M3 screws. It can be mounted onto the helium-neon laser body using M3 screws, while the five-axis fiber coupler is installed via M2 screws. The HNLA2 adapter has four M2 threaded holes and four M4 threaded holes on the side, and is mounted onto the HNL-2mW helium-neon laser using four side-mounted set screws, with the five-axis fiber coupler installed via M2 screws. The center of the adapter also features C-Mount series threads, which can be used for mounting certain lasers.

• Four M3 Threaded Holes or Set Screws for Laser Housing Mounting
• Central Through-Hole with C-Mount Connector Thread Specification
• M3 and M2 screws included
