Fixed Lens Mounts, with U-Shaped Groove — Model FLF05
✔ In Stock — Ships Today

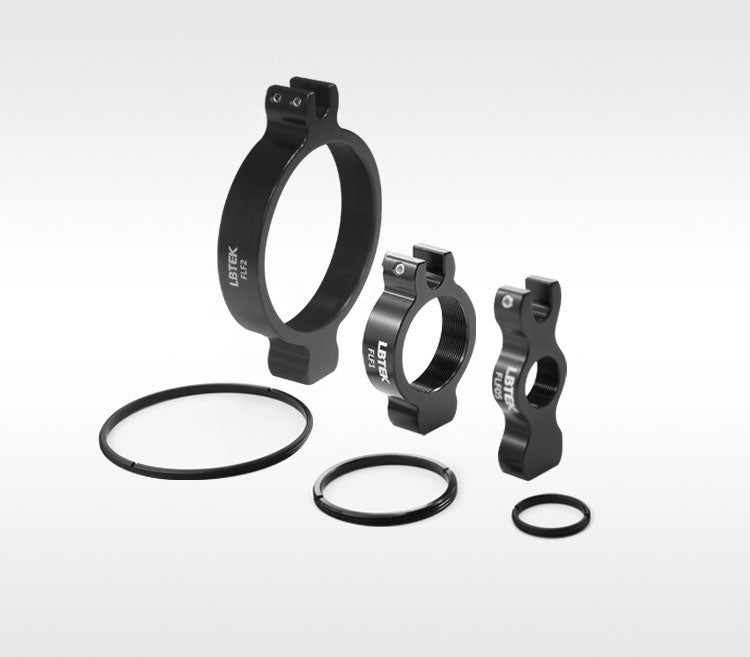

The LBTEK Fixed Lens Mount is suitable for optical components with diameters of Ø12.7 mm, Ø25.4 mm, and Ø50.8 mm. The FLF series features mounting steps for optical components and includes one retaining ring for securing optical components with a maximum thickness of 5.2 mm. The top U-shaped groove design allows for mounting Ø6 mm coaxial posts, while the side is secured with set screws. The bottom is equipped with M4 threaded mounting holes for connecting to optical posts.
Key Features
- Optical Component Specifications: Ø12.7 mm, Ø25.4 mm, and Ø50.8 mm
- Internal Thread with Optical Component Mounting Steps
- Including 1 retaining ring
Application
Fixed lens mount with optical component mounting step, including one retaining ring
| Clear Aperture | 11.4 mm |
CAD Drawing
Download
Click and drag to rotate. Scroll to zoom.
Product Family: Fixed Lens Mounts, with U-Shaped Groove (9 variants)
| Product | SKU | Size | Clear Aperture | Operating Wavelength | |
|---|---|---|---|---|---|
